Pressure pipe, incl fitting and ferrule 1556464
Pressure pipe, incl fitting and ferrule 1556464
- Brandsvolvo penta
- Part No.: 1556464
- Availability: 联系我们

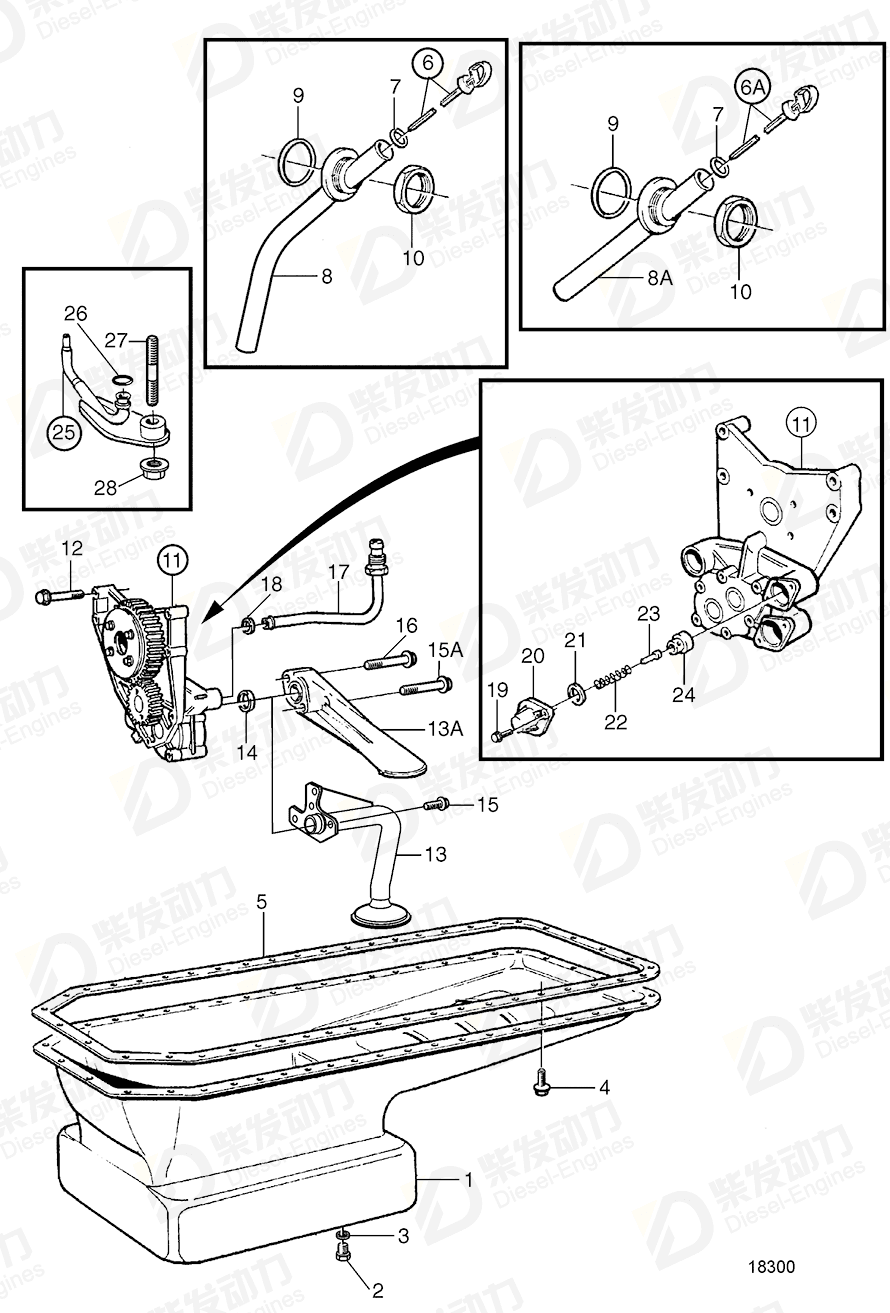

| No. | Part Name | Part Number | Qty | Description |
| 1 | Sump | 848833 | 1 | SN-2160023125 |
| 1 | Sump, temp sensor outlet | 3825323 | 1 | SN2160023126- |
| 2 | Magnetic plug | 949175 | 1 | |
| 3 | Gasket | 18813 | 1 | |
| 4 | Flange screw | 946440 | 44 | |
| 5 | Gasket | 3827274 | 1 | (864775) |
| 6 | Oil dipstick | 848958 | 1 | Min-level 9mm from the tip., SN-XXXXXXXXXX/9364 |
| 7 | O-ring, bearing housing | 925054 | 1 | |
| 8 | Pipe retainer | 848956 | 1 | SN-XXXXXXXXXX/9364 |
| 9 | Rubber washer | 468947 | 1 | |
| 10 | Hexagon nut | 468948 | 1 | |
| 11 | Oil pump | 1543963 | 1 | When replacing the oil pump use even 1pc 1543988, 1pc 864897, 1pc 864896, 1pc 949722, 1pc 965180 and 1pc 965183., SN-XXXXXXXXXX/9364 |
| 11 | Oil pump | 1556177 | 1 | Repl by 1556730 |
| 11 | Oil pump | 1556730 | 1 | |
| 12 | Flange screw | 965186 | 4 | |
| 13 | Suction pipe | 1543624 | 1 | SN-XXXXXXXXXX/9364 |
| 14 | O-ring | 949722 | 1 | |
| 14 | Sealing ring | 1543579 | 1 | |
| 15 | Flange screw | 946440 | 2 | |
| 16 | Flange screw | 965180 | 1 | |
| 17 | Pressure pipe, incl fitting and ferrule | 1556464 | 1 | |
| 18 | Sealing ring | 1543578 | 1 | |
| 19 | Flange screw | 945444 | 2 | |
| 20 | Housing | 1543608 | 1 | |
| 21 | O-ring | 949659 | 1 | |
| 22 | Compression spring | 1543630 | 1 | |
| 23 | Peg | 1543610 | 1 | |
| 24 | Seat | 1543964 | 1 | |
| 25 | Nozzle, piston cooling | 1543745 | 6 | SN-XXXXXXXXXX/12628 |
| 25 | Piston cooling jet, piston cooling | 1556430 | 6 | SNXXXXXXXXXX/12629- |
| 26 | O-ring | 955981 | 6 | |
| 27 | Threaded rod, l=50mm | 1543749 | 6 | SN-XXXXXXXXXX/12628 |
| 27 | Stud, l=40mm | 1556434 | 6 | SNXXXXXXXXXX/12629- |
| 28 | Flange lock nut | 948645 | 6 | |
| 6A | Dipstick | 864897 | 1 | |
| 8A | Pipe retainer | 864896 | 1 | |
| 13A | Oil strainer | 1543988 | 1 | |
| 15A | Flange screw | 965183 | 1 |
| Item | Part Name | Part No. |
| 17 | Pressure pipe, incl fitting and ferrule 1556464 | 1556464 |
| Details | |
| Engine model | TAD1630P, TWD1630P TAD1630V, TWD1630V TAD1631G, TAD1631GE TD164KAE TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G, TWD1630G, TAD1630G, TAD1630GE |
| Application | Lubricating System Lubricating System: A Lubricating System: B |
