Pressure sensor 866833

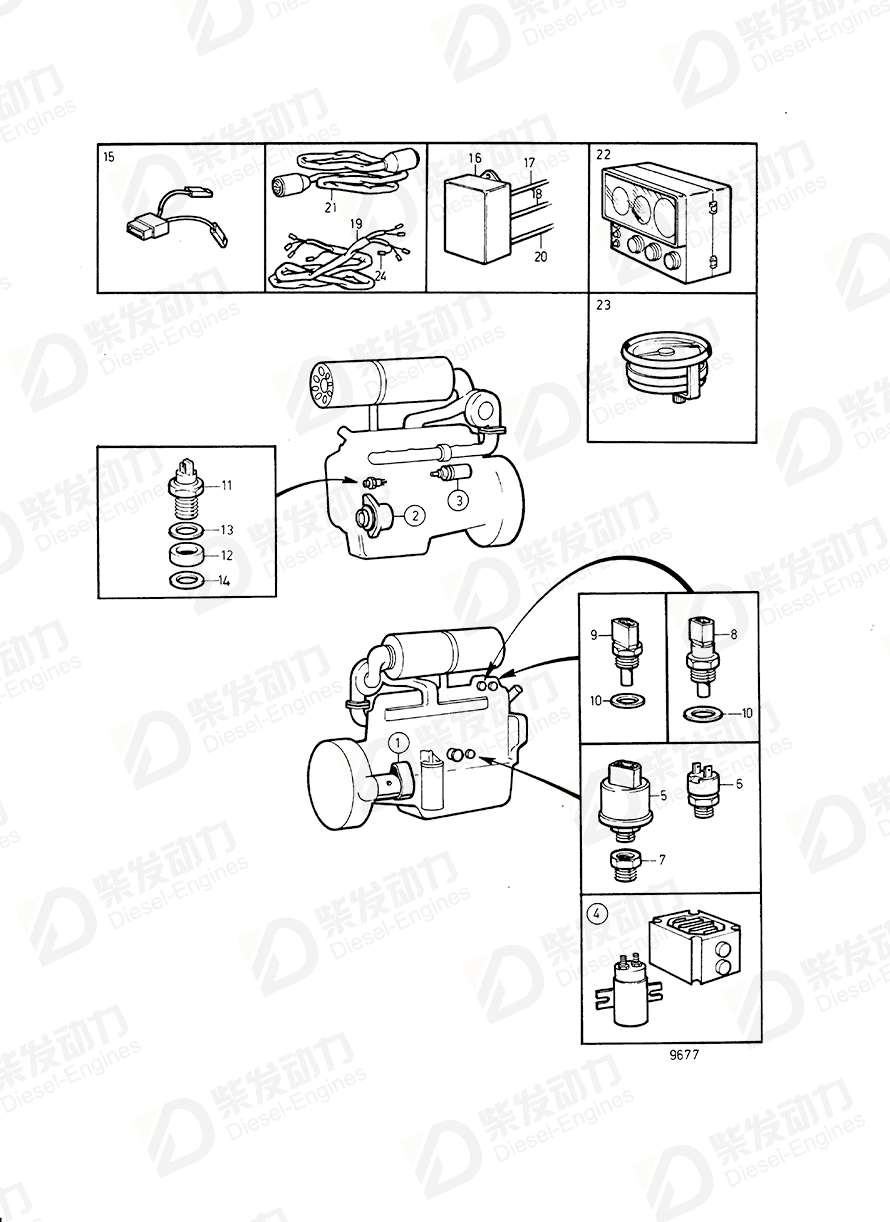

| No. | Part Name | Part Number | Qty | Description |
| 5 | Pressure sensor | 866833 | 1 | (843231) |
| 6 | Pressure monitor, oil pressure-engine | 863169 | 1 | 0.7bar |
| 7 | Nipple | 835980 | 1 | |
| 8 | Thermo monitor | 822858 | 1 | 93°C,later prod |
| 9 | Temperature sensor | 843325 | 1 | |
| 10 | Gasket | 947624 | 1 | |
| 11 | Tachometer sensor | 1502028 | 1 | Blade terminal |
| 12 | Spacer sleeve | 848713 | 1 | Replaced by 1pc spacer sleeve and 1pc gasket 947624., L=12,4mm |
| 13 | O-ring | 949656 | 1 | |
| 14 | O-ring | 949656 | 1 | |
| 17 | Cable block | 846694 | 1 | To instrument panel., Split end |
| 18 | Cable block | 848697 | 1 | For engine with upright electrical box., Motor-engine |
| 18 | Cable block | 849442 | 1 | For engine with lying electrical box., Motor-engine |
| 20 | Cable block | 847050 | 1 | STARTER |
| 20 | Cable kit | 848947 | 1 | Stop solenoid. |
| 20 | Cable kit | 849464 | 1 | Starter motor,stop solenoid,alarm. |
| 21 | Extension cable | 846648 | 1 | L=3000mm |
| 21 | Extension cable | 846649 | 1 | L=5000mm |
| 21 | Extension cable | 846650 | 1 | L=7000mm |
| 22 | Instrument panel | 848071 | 1 |
| Item | Part Name | Part No. |
| 5 | Pressure sensor 866833 | 866833 |
| Details | |
| Engine model | TD61A TD61AG TD61AP TD61AW, TD61ACE TD71A TD71AG TD71AP TD71AW, TD71ACE TID61AG TID71A TID71AG TID71AP |
| Application | Electrical System and Instruments: 867903 Electrical System and Instruments: 867905 Electrical System and Instruments: 867906 Electrical System and Instruments: 867907 Electrical System and Instruments: 867909 Electrical System and Instruments: 867911 Electrical System and Instruments: 867912 Electrical System and Instruments: 867913 Electrical System and Instruments: 867914 Electrical System and Instruments: 867915 Electrical System and Instruments: 867916 Electrical System and Instruments: 867919 |
| Specification | |
| Descriptions | (843231) |
