Protecting casing 840631

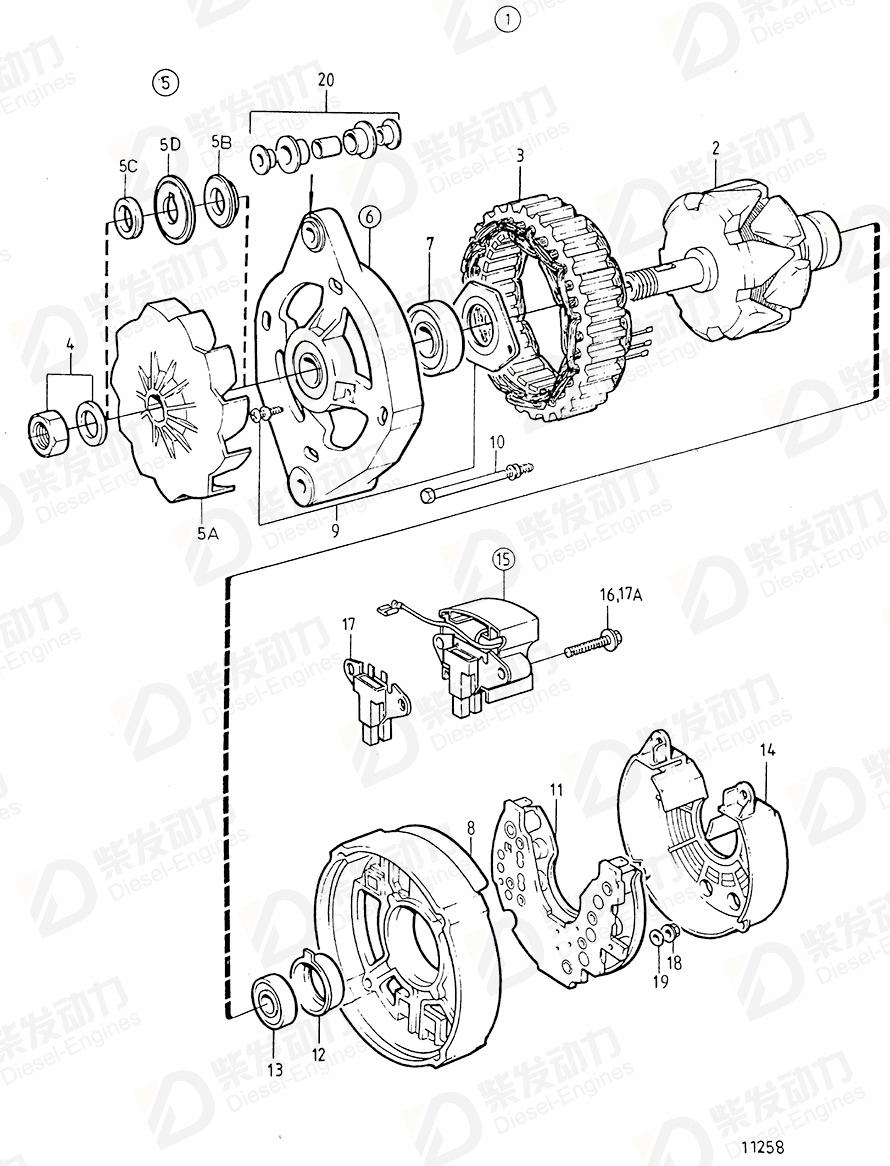

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 872018 | 1 | For 12V electric system., 14V 50A repl by 872926 |
| 3 | Stator | 859421 | 1 | |
| 4 | Mounting kit | 6212688 | 1 | (840620) |
| 5 | Fan kit | 860281 | 1 | |
| 7 | Ball bearing | 860432 | 1 | (848402) |
| 9 | Mounting kit | 840625 | 1 | |
| 11 | Diode bridge | 1698689 | 1 | |
| 12 | Bearing race | 840629 | 1 | |
| 13 | Ball bearing | 864351 | 1 | |
| 14 | Protecting casing | 840631 | 1 | |
| 15 | Regulator kit | 872367 | 1 | |
| 16 | Screw | 859312 | 6 | |
| 17 | Brush retainer | 840632 | 1 | |
| 18 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 18 | Hexagon nut | 955779 | 1 | |
| 18 | Flange nut | 965483 | 2 | |
| 19 | Spring washer | 941904 | 1 | |
| 20 | Guide | 840634 | 1 | |
| 5B | Spacer | 862897 | 1 | |
| 5C | Spacer | 860284 | 1 | |
| 5D | Washer | 860283 | 1 | |
| 17A | Screw | 859312 | 2 |
| Item | Part Name | Part No. |
| 14 | Protecting casing 840631 | 840631 |
| Details | |
| Engine model | TWD610P, TWD610PB, TWD710P, TWD710PB, TAD730P |
| Application | Alternator Alternator 14V 50A, Components Alternator 14V 50A, Components: 872018 ALTERNATOR: 847561 ALTERNATOR: 847604 Alternator: 872018 |
