Pull link 821121

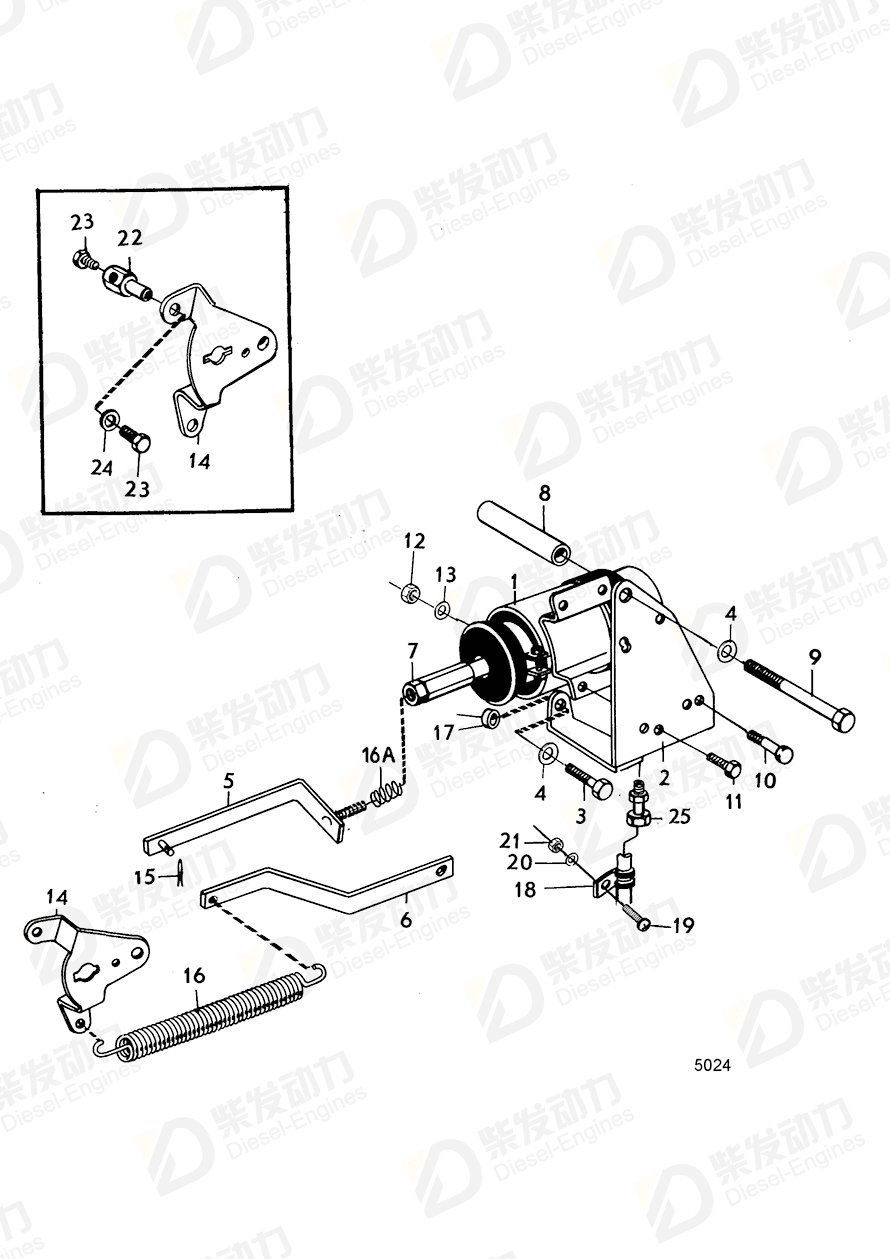

| No. | Part Name | Part Number | Qty | Description |
| 1 | Stop solenoid | 881277 | 1 | Replaced by 1 PC 881531,1 ST 881191,1 ST 843401., 24V early type |
| 1 | Magnet | 881532 | 1 | 24V later prod |
| 2 | Bracket | 821141 | 1 | For engine with water cold exhaust manifold. |
| 2 | Bracket | 822649 | 1 | |
| 3 | Hexagon screw | 940114 | 3 | |
| 3 | Hexagon screw | 940115 | 1 | |
| 4 | Spring washer | 942336 | 3 | |
| 5 | Pull link | 821121 | 1 | For engine with water cold exhaust manifold. |
| 5 | Pull rod | 845444 | 1 | (822647) |
| 6 | Anchorage | 821096 | 1 | For engine with water cold exhaust manifold., Early type |
| 6 | Spring anchorage | 822645 | 1 | |
| 7 | Hexagon nut | 955857 | 1 | |
| 8 | Spacer sleeve | 822779 | 1 | |
| 9 | Hexagon screw | 955541 | 1 | |
| 10 | Hexagon screw | 940100 | 3 | |
| 11 | Hexagon screw | 955512 | 4 | |
| 11 | Hexagon screw | 955513 | 1 | |
| 12 | Hexagon nut | 955825 | 4 | Late type |
| 13 | Spring washer | 941906 | 4 | |
| 13 | Washer | 955893 | 4 | |
| 14 | Lever | 821134 | 1 | |
| 15 | Split pin | 907824 | 1 | |
| 16 | Spring | 819809 | 1 | Early type |
| 17 | Spacer sleeve | 823575 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 18 | Clamp | 952627 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 19 | Cross recessed screw | 950046 | 1 | |
| 20 | Spring washer | 941906 | 1 | |
| 21 | Hexagon nut | 955825 | 1 | Late type |
| 22 | Cube | 804783 | 1 | Replaced by 1pc 843401, 1pc 845851, 1pc 961248. |
| 23 | Hexagon screw | 955224 | 2 | Replaced by 1pc 843401, 1pc 845851, 1pc 961248. |
| 24 | Washer | 955891 | 1 | Replaced by 1pc 843401, 1pc 845851, 1pc 961248. |
| 25 | Grommet | 881191 | 1 | Early type |
| Item | Part Name | Part No. |
| 5 | Pull link 821121 | 821121 |
| Details | |
| Engine model | TD100A TD70G TD70G-83 TID70G |
| Application | Stop Solenoid and Installation Components: A Stop Solenoid and Installation Components: B Stop Solenoid and Installation Components: C |
| Specification | |
| Descriptions | For engine with water cold exhaust manifold. |
