Pull link 845553

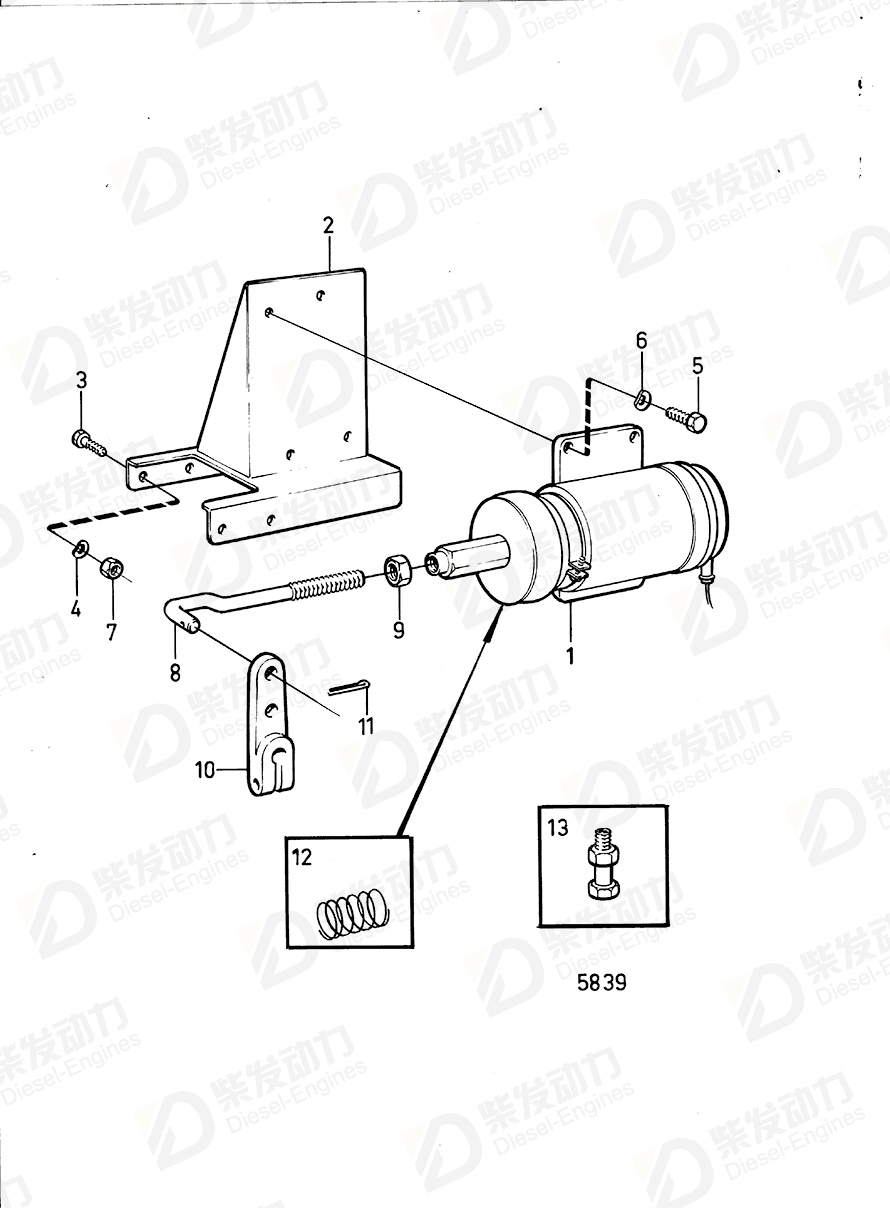

| No. | Part Name | Part Number | Qty | Description |
| 1 | Magnet | 881532 | 1 | 24V later prod |
| 2 | Bracket | 845558 | 1 | |
| 3 | Hexagon screw | 955294 | 4 | |
| 4 | Spring washer | 941907 | 4 | |
| 5 | Hexagon screw | 955270 | 4 | |
| 6 | Spring washer | 941906 | 4 | |
| 7 | Hexagon nut | 955781 | 4 | |
| 8 | Pull link | 845553 | 1 | |
| 9 | Hexagon nut | 955857 | 1 | |
| 10 | Intermediate lever | 845552 | 1 | |
| 11 | Split pin | 907824 | 1 | |
| 12 | Return spring | 843401 | 1 | Late type |
| 13 | Grommet | 881191 | 1 | Early type |
| Item | Part Name | Part No. |
| 8 | Pull link 845553 | 845553 |
| Details | |
| Engine model | D100B, TD100A TD60B TD60D TD60D-83 TD70G-83 |
| Application | Stop Solenoid and Installation Components for RQV-Governor Stop Solenoid and Installation Components for RQV-Regulator STOP SOLENOID AND INSTALLATION COMPONENTS FOR RQV-REGULATOR: A STOP SOLENOID AND INSTALLATION COMPONENTS FOR RQV-REGULATOR: B Stop Solenoid and Installation Components for RQV-Regulator: TD70G* |
