Pulley 20750935

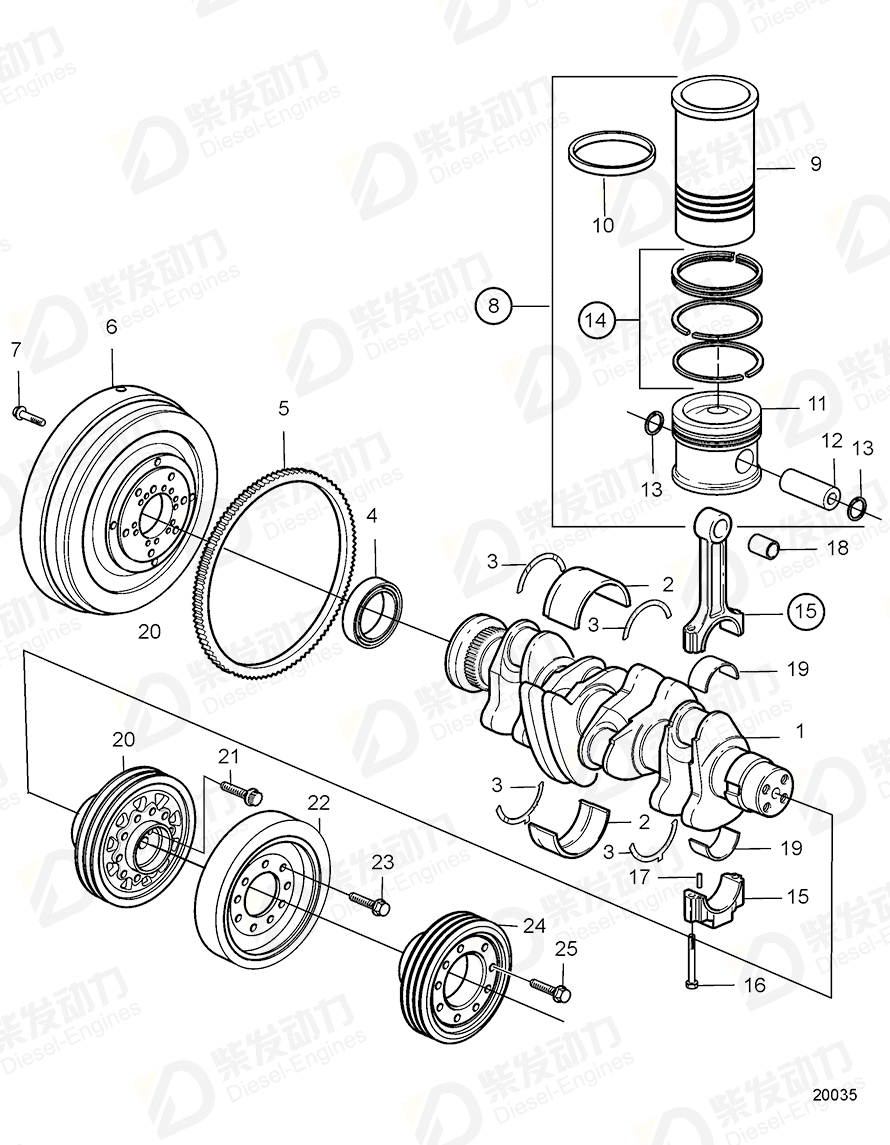

| No. | Part Name | Part Number | Qty | Description |
| 1 | Crankshaft | 20405540 | 1 | SN-01098272 |
| 1 | Crankshaft | 20900811 | 1 | SN01098273- |
| 2 | Main bearing | 20405529 | 5 | U.S=0,25mm, SN-10594934 |
| 2 | Main bearing | 20405541 | 5 | U.S=0.50mm |
| 2 | Main bearing | 21141948 | 5 | Std |
| 2 | Main bearing | 21234191 | 5 | U.S=0,25mm, SN10594935- |
| 3 | Safety washer | 11700315 | 2 | O.S=0.20mm (3.1mm) |
| 3 | Thrust washer kit | 20405899 | 2 | Std |
| 8 | Cylinder liner kit | 877337 | 4 | (877459) |
| 10 | O-ring | 20412762 | 8 | |
| 12 | Gudgeon pin | 20405577 | 4 | |
| 13 | Snap ring | 20405576 | 8 | |
| 14 | Piston ring | 21304975 | 4 | |
| 15 | Connecting rod | 20585982 | 4 | |
| 16 | Flange screw | 11700326 | 8 | |
| 17 | Grooved pin | 20459134 | 4 | |
| 18 | Bushing | 11700325 | 4 | |
| 19 | Bearing | 20565150 | 4 | Std, Only for original part 11700324 |
| 19 | Bearing | 20565188 | 4 | U.S=0.50mm, Only for 11700324 |
| 19 | Bearing | 20717211 | 4 | U.S=0.25mm, Only for 11700324 |
| 19 | Bearing | 20766790 | 4 | Std, Only for 20585982 |
| 19 | Big-end bearing kit | 20790423 | 4 | U.S=0.25mm, Only for 20585982 |
| 19 | Big-end bearing kit | 20790428 | 4 | U.S=0.50mm, Only for 20585982 |
| 20 | V-belt pulley | 20405725 | 1 | For fan mounted on coolant pump., Alternator dw/width 238,2/10., Pump dw/width 237,8/13. |
| 21 | Six point screw | 20405724 | 4 | |
| 22 | Vibration damper | 20412598 | 1 | Tropical radiator (high air temperature)., (340x32) |
| 23 | Flange screw | 975108 | 9 | L=20mm |
| 24 | Pulley | 20750935 | 1 | |
| 25 | Flange screw | 975102 | 9 | L=60mm |
| Item | Part Name | Part No. |
| 24 | Pulley 20750935 | 20750935 |
| Details | |
| Engine model | TD520VE TD720VE |
| Application | Crank Mechanism |
