Pulley 3837486

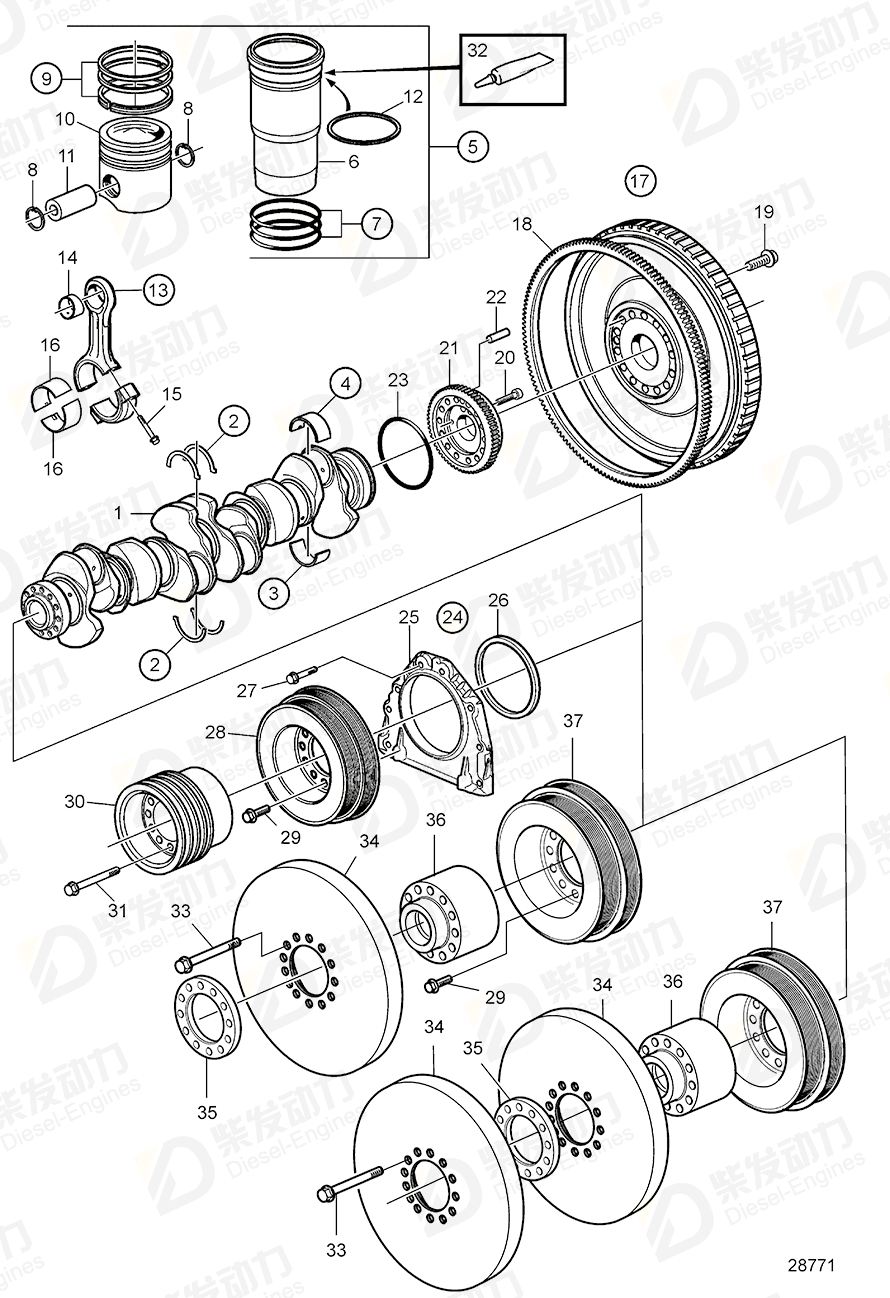

| No. | Part Name | Part Number | Qty | Description |
| 1 | Crankshaft | 8131247 | 1 | |
| 2 | Thrust washer kit | 21948268 | 1 | Std |
| 3 | Main bearing kit | 20578851 | 6 | SN002477-., Std |
| 3 | Main bearing kit | 20700881 | 6 | SN002477-., O.S=0,25mm |
| 3 | Main bearing kit | 20700882 | 6 | SN002477-., O.S=0,50mm |
| 3 | Main bearing kit | 20700885 | 6 | SN002477-., O.S=0,75mm |
| 3 | Main bearing kit | 20700886 | 6 | SN002477-., O.S=1,00mm |
| 3 | Main bearing kit | 20700887 | 6 | SN002477-., O.S=1,25mm |
| 4 | Main bearing kit | 20578853 | 1 | SN002477- Bearing no 7., Std |
| 4 | Main bearing kit | 20700890 | 1 | SN002477- Bearing no 7., O.S=0,25mm |
| 4 | Main bearing kit | 20700891 | 1 | SN002477- Bearing no 7., O.S=0,50mm |
| 4 | Main bearing kit | 20700893 | 1 | SN002477- Bearing no 7., O.S=1,00mm |
| 5 | Cylinder liner kit | 21254035 | 6 | |
| 7 | Sealing ring kit | 20520607 | 1 | See parts bulletin |
| 7 | Sealing ring kit | 22179684 | 1 | See parts bulletin |
| 8 | Snap ring | 945483 | 2 | |
| 9 | Piston ring kit | 20819869 | 1 | |
| 12 | Shim | 20523555 | 1 | TH=0,2mm |
| 12 | Shim | 20523556 | 1 | TH=0,3mm |
| 12 | Shim | 20523557 | 1 | TH=0,5mm |
| 13 | Connecting rod | 21535917 | 6 | |
| 14 | Bushing | 20898010 | 6 | (8131244) |
| 15 | Flange screw | 8131198 | 24 | |
| 16 | Big-end bearing kit | 20586602 | 6 | Std |
| 16 | Big-end bearing kit | 20586603 | 6 | O.S=0,25mm |
| 16 | Big-end bearing kit | 20586604 | 6 | O.S=0,50mm |
| 16 | Big-end bearing kit | 20586606 | 6 | O.S=1,00mm |
| 17 | Flywheel | 3840066 | 1 | |
| 18 | Ring gear | 20711957 | 1 | |
| 19 | Flange screw | 21344746 | 14 | |
| 20 | Flange screw | 984738 | 2 | |
| 21 | Gear, crankshaft | 21430914 | 1 | |
| 22 | Pin | 950656 | 1 | |
| 23 | O-ring | 997790 | 1 | |
| 24 | Cover | 21054681 | 1 | |
| 26 | Crankshaft seal | 21347087 | 1 | |
| 27 | Flange screw | 984736 | 8 | |
| 28 | Vibration damper | 20585893 | 1 | |
| 29 | Flange screw | 984815 | 6 | |
| 30 | Pulley | 3829173 | 1 | |
| 31 | Flange screw | 984821 | 12 | |
| 32 | Sealant | 1161231 | 1 | 304ml |
| 32 | Sealant | 1161277 | 1 | 20g |
| 33 | Flange screw | 984825 | 12 | |
| 34 | Vibration damper | 3889367 | 2 | |
| 35 | Spacer | 3838497 | 1 | |
| 36 | Adapter | 3838498 | 1 | |
| 37 | Pulley | 3837486 | 1 |
| Item | Part Name | Part No. |
| 37 | Pulley 3837486 | 3837486 |
| Details | |
| Engine model | TAD1640GE TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1644GE, TWD1645GE TWD1672GE, TWD1673GE |
| Application | Crank Mechanism |
