Pulley 4773540

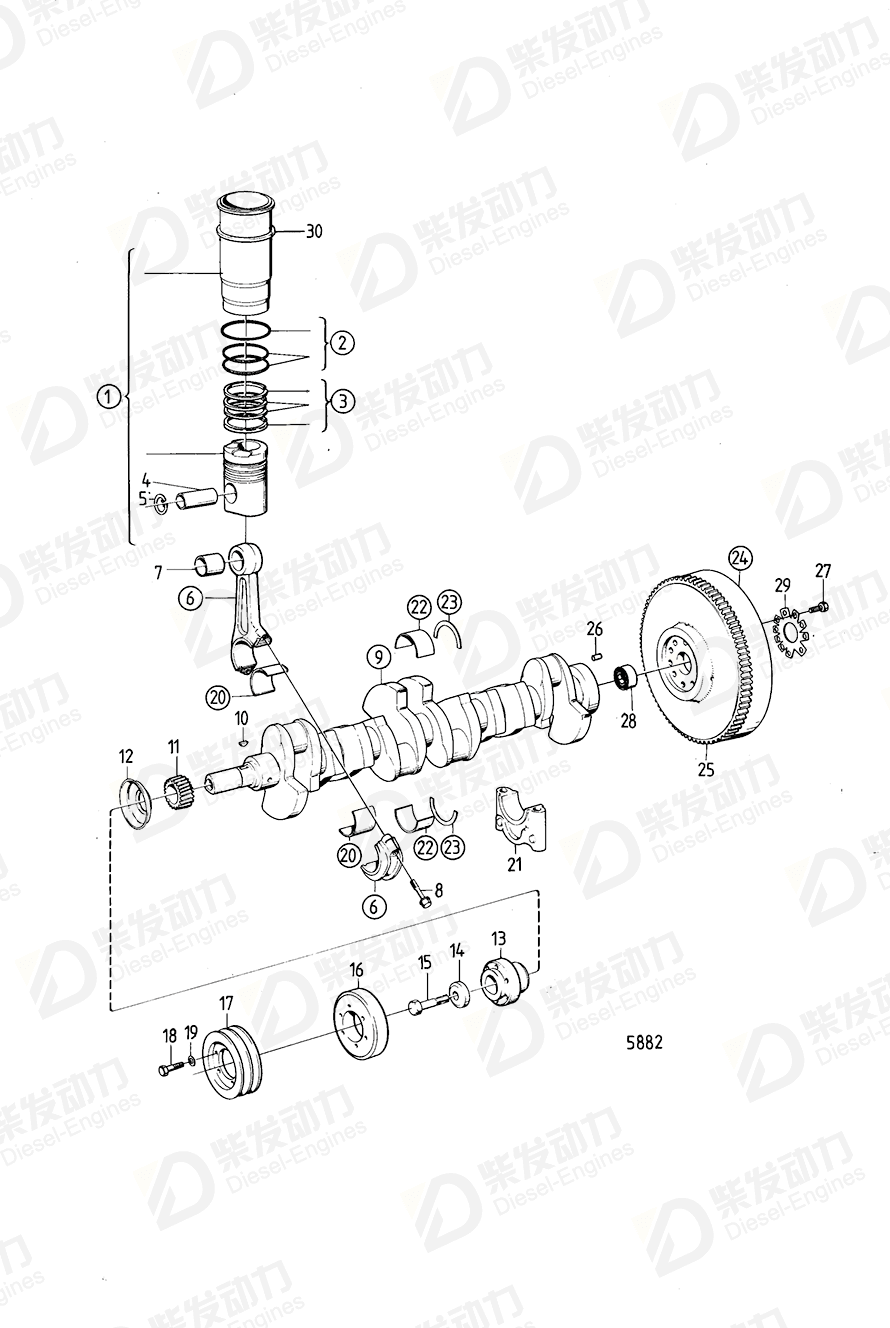

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 275066 | 6 | (275057) |
| 2 | Sealing ring kit | 275736 | 6 | (275567) |
| 3 | Piston ring kit | 275320 | 6 | |
| 4 | Gudgeon pin | 420258 | 6 | Std D |
| 4 | Pin | 420259 | 6 | 0.05mm o.s |
| 4 | Gudgeon pin | 420261 | 6 | 0.20mm o.s |
| 5 | Retaining ring | 914523 | 12 | |
| 6 | Connecting rod | 420520 | 6 | (465665) |
| 7 | Bearing | 465816 | 6 | (420257) |
| 8 | Connecting rod bolt | 420126 | 12 | |
| 9 | Crankshaft | 465755 | 1 | (465642) |
| 10 | Woodruff key | 422253 | 1 | |
| 11 | Crankshaft gear | 421080 | 1 | |
| 12 | Oil deflector | 420172 | 1 | |
| 13 | Hub | 836304 | 1 | |
| 14 | Washer | 420124 | 1 | |
| 15 | Screw | 417464 | 1 | |
| 16 | Vibration damper | 421414 | 1 | Spec.867277 |
| 17 | Pulley | 4773540 | 1 | 4-GROOVE |
| 18 | Hexagon screw | 940160 | 6 | SAE1-2 |
| 19 | Spring washer | 941909 | 6 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 20 | Big-end bearing kit | 270081 | 6 | Std D |
| 20 | Big-end bearing kit | 270082 | 6 | 0.25mm u.s |
| 20 | Big-end bearing kit | 270083 | 6 | 0.50mm u.s |
| 20 | Big-end bearing kit | 270084 | 6 | 0.75mm u.s |
| 20 | Big-end bearing kit | 270085 | 6 | 1.00mm u.s |
| 20 | Big end bearing kit | 270086 | 6 | 1.25mm u.s |
| 22 | Main bearing kit | 271230 | 7 | Std D (270426) |
| 22 | Main bearing kit | 271231 | 7 | 0.25mm u.s (270427) |
| 22 | Main bearing kit | 271232 | 7 | 0.50mm u.s (270428) |
| 22 | Main bearing kit | 271233 | 7 | 0.75mm u.s (270429) |
| 22 | Main bearing kit | 271234 | 7 | 1.00mm u.s (270430) |
| 22 | Main bearing kit | 271235 | 7 | 1.25mm u.s (270431) |
| 23 | Thrust washer kit | 276751 | 1 | Std D |
| 23 | Thrust washer kit | 276752 | 1 | 0.1mm o.s |
| 23 | Thrust washer kit | 276753 | 1 | 0.2mm o.s |
| 23 | Thrust washer kit | 276780 | 1 | 0.3mm o.s |
| 24 | Flywheel | 814731 | 1 | Engine withClark converter C-272,C-273. |
| 24 | Flywheel | 821299 | 1 | For engine with gear box without distance control |
| 24 | Flywheel | 821810 | 1 | Engine with TD converter 44-412-2. TDC converter 22-406-2. TDPX 1440 |
| 24 | Flywheel | 823749 | 1 | TD70G, Allison converter |
| 24 | Flywheel | 848340 | 1 | |
| 25 | Gear ring | 420067 | 1 | MO84522/XXXX-MO84530.MO84652/XXXXX-.engine without air starting motor. |
| 26 | Pin | 950677 | 1 | |
| 27 | Hexagon screw | 941570 | 6 | |
| 27 | Hex. socket screw | 947527 | 6 | |
| 28 | Ball bearing | 181335 | 1 | |
| 29 | Lock washer | 466050 | 1 | |
| 30 | Adjusting washer | 465394 | 1 | TH=0.20mm |
| 30 | Adjusting washer | 465395 | 1 | TH=0.30mm |
| 30 | Adjusting washer | 465396 | 1 | TH=0.40mm |
| Item | Part Name | Part No. |
| 17 | Pulley 4773540 | 4773540 |
| Details | |
| Engine model | TD60D |
| Application | CRANKSHAFT AND RELATED PARTS: A THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS |
| Specification | |
| Descriptions | 4-GROOVE SEE GROUP 2A |
