Pulley 823006

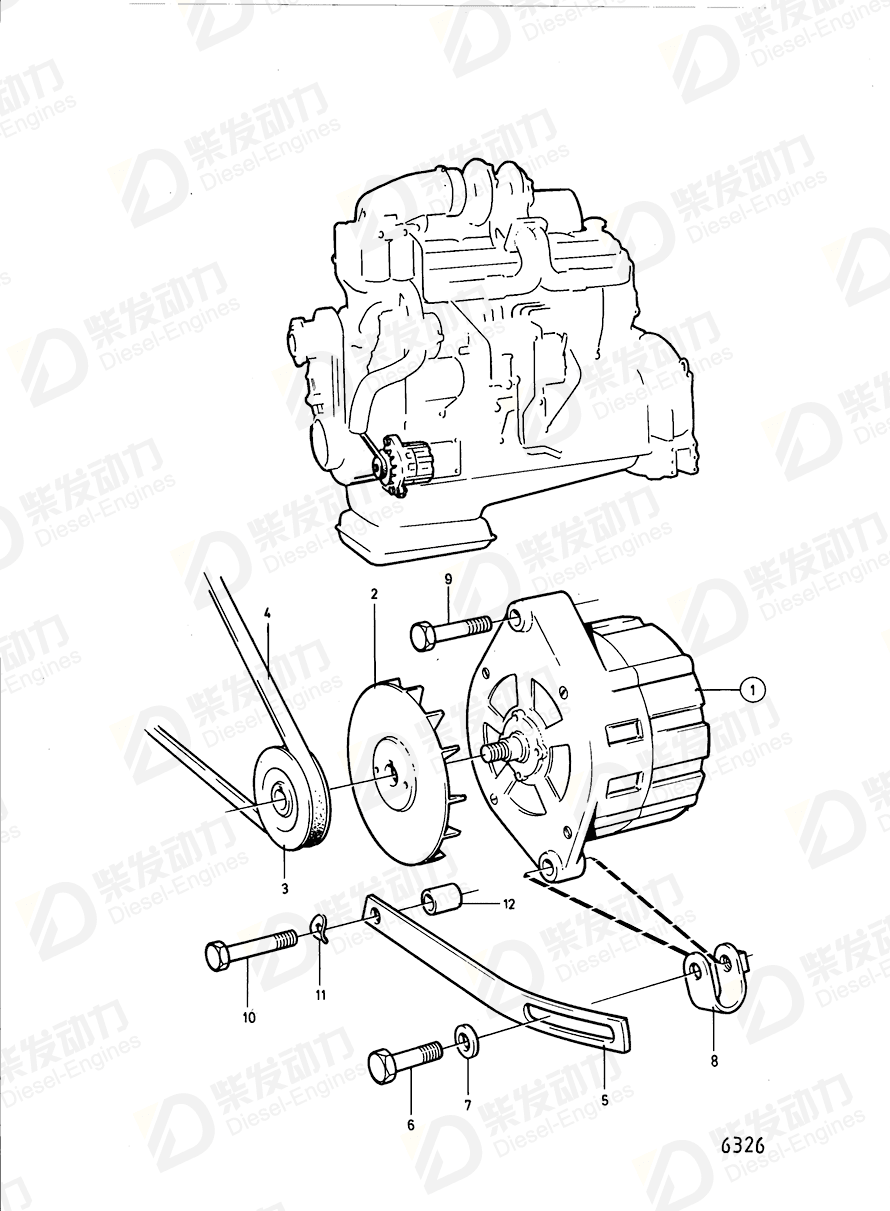

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1578140 | 1 | 28V 45A |
| 2 | Fan | 241363 | 1 | |
| 3 | Pulley | 823006 | 1 | |
| 4 | V-belt | 958319 | 1 | |
| 5 | Tensioner | 845021 | 1 | |
| 6 | Hexagon screw | 955300 | 1 | (955299) |
| 7 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 8 | Tensioning loop | 466735 | 1 | |
| 9 | Hexagon screw | 955553 | 1 | |
| 10 | Hexagon screw | 955544 | 1 | |
| 12 | Spacer sleeve | 824205 | 1 | D=17mm |
| Item | Part Name | Part No. |
| 3 | Pulley 823006 | 823006 |
| Details | |
| Engine model | D100B, TD100A D70B, TD70B TD100A TD120C TD120G TD70B TD70G TID120FG |
| Application | Alternator 1578140 and Installation Components Alt Alternator and Installation Alternator and Installation Components Alternator and Installation Components, MOXXXXX/30308- Alternator and Installation Components, MOXXXXX/33072- Thermostat and Water Pump with Installation Components |
| Specification | |
| Descriptions | Alternator,low mounted., See group 3 |
