Pulley 823028

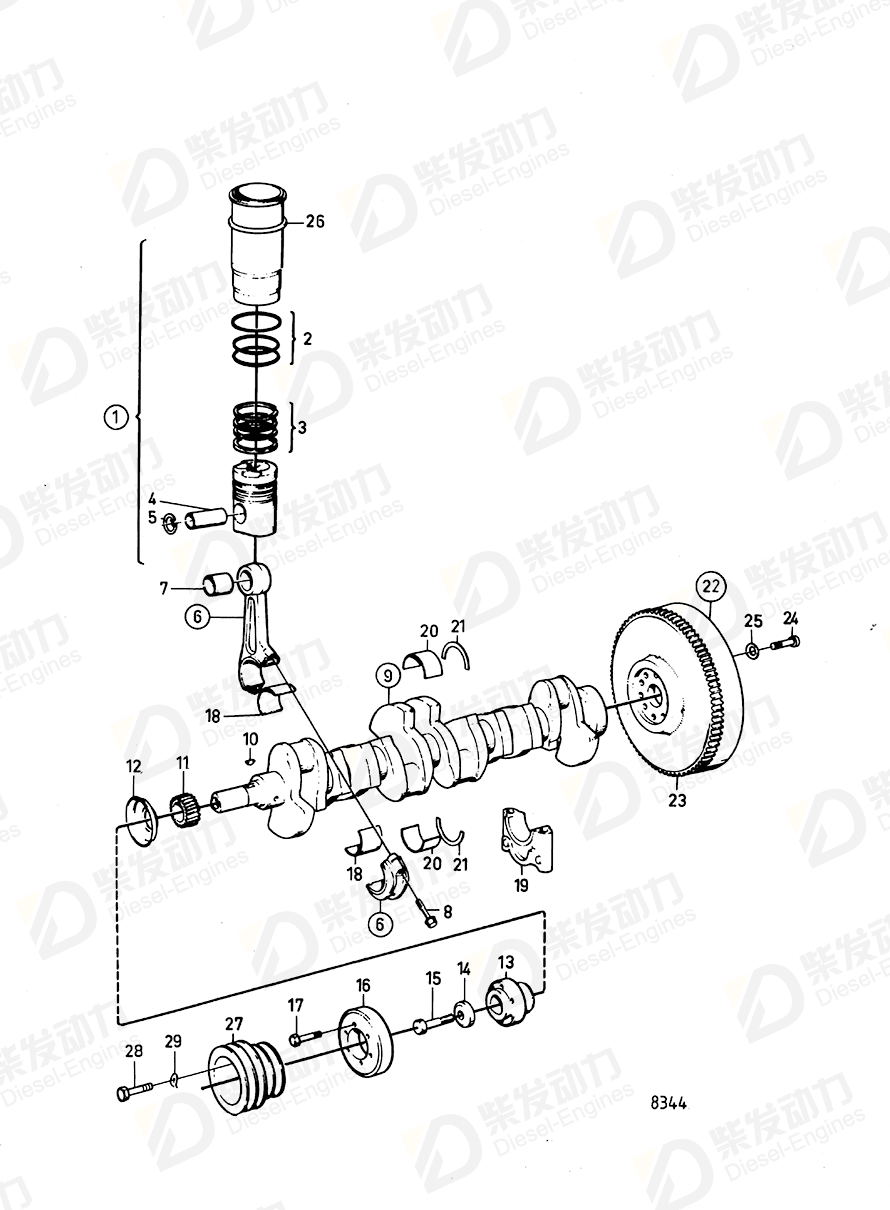

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 275627 | 6 | |
| 2 | Sealing ring kit | 271157 | 6 | |
| 3 | Piston ring kit | 275084 | 6 | |
| 4 | Gudgeon pin | 422344 | 6 | Std |
| 4 | Gudgeon pin | 422345 | 6 | 0.05mm o.s |
| 4 | Gudgeon pin | 422347 | 6 | 0.20mm o.s |
| 5 | Retaining ring | 417466 | 12 | |
| 6 | Connecting rod | 846731 | 6 | Classified |
| 7 | Bushing | 1545302 | 6 | |
| 8 | Flange screw | 1545479 | 12 | (417464) |
| 9 | Crankshaft | 848767 | 1 | SN-2100280596 |
| 10 | Woodruff key | 422253 | 1 | |
| 11 | Gear | 423080 | 1 | |
| 12 | Oil deflector | 423177 | 1 | |
| 13 | Hub | 470595 | 1 | |
| 14 | Washer | 422124 | 1 | |
| 15 | Hexagon screw | 941494 | 1 | |
| 16 | Vibration damper | 424525 | 1 | |
| 17 | Hex. socket screw | 956601 | 12 | Repl by 1pc 829856 4PCS 829857 4PCS 829858 4PCS 941905 4PCS 955780., L=32mm |
| 18 | Big-end bearing kit | 270124 | 6 | Std D |
| 18 | Big-end bearing kit | 270125 | 6 | 0,25mm u.s |
| 18 | Big-end bearing kit | 270126 | 6 | 0,50mm u.s |
| 18 | Big-end bearing kit | 270127 | 6 | U.S=0,75mm |
| 18 | Big-end bearing kit | 270128 | 6 | U.S=1,00mm |
| 18 | Big-end bearing kit | 270129 | 6 | U.S=1,25mm |
| 20 | Main bearing kit | 270438 | 7 | |
| 20 | Main bearing kit | 270439 | 7 | 0.25mm u.s |
| 20 | Main bearing kit | 270440 | 7 | 0.50mm u.s |
| 20 | Main bearing kit | 270441 | 7 | 0.75mm u.s |
| 20 | Main bearing kit | 270442 | 7 | 1.00mm u.s |
| 20 | Main bearing kit | 270443 | 7 | 1.25mm u.s |
| 21 | Thrust washer kit | 276758 | 1 | Std D |
| 21 | Thrust washer kit | 276759 | 1 | 0,10mm o.s |
| 21 | Thrust washer kit | 276760 | 1 | 0,20mm o.s |
| 22 | Flywheel, 10 hole | 864402 | 1 | |
| 23 | Gear ring | 423082 | 1 | |
| 24 | Hexagon screw | 941570 | 10 | |
| 25 | Washer | 467773 | 10 | |
| 26 | Adjusting washer | 422619 | 1 | TH=0.20mm |
| 26 | Adjusting washer | 422620 | 1 | TH=0.30mm |
| 26 | Adjusting washer | 422621 | 1 | TH=0.50mm |
| 27 | Pulley | 823028 | 1 | MO 3119298/XXXX-3130871/216681. |
| 28 | Hexagon screw | 955549 | 12 | AQ170B MOXXXX/87713-., L=45mm |
| 29 | Spring washer | 941909 | 12 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| Item | Part Name | Part No. |
| 27 | Pulley 823028 | 823028 |
| Details | |
| Engine model | D100A D100B D100BRC TD100A TD100ARC TD100CRC TD120A |
| Application | Crankshaft and Related Parts: A Crankshaft and Related Parts: B Crankshaft and Related Parts: C CRANKSHAFT AND RELATED PARTS: D |
| Specification | |
| Descriptions | MO 3119298/XXXX-3130871/216681. |
Related Products
Tags: Pulley, Volvo Penta, 823028
