Pulley 846332

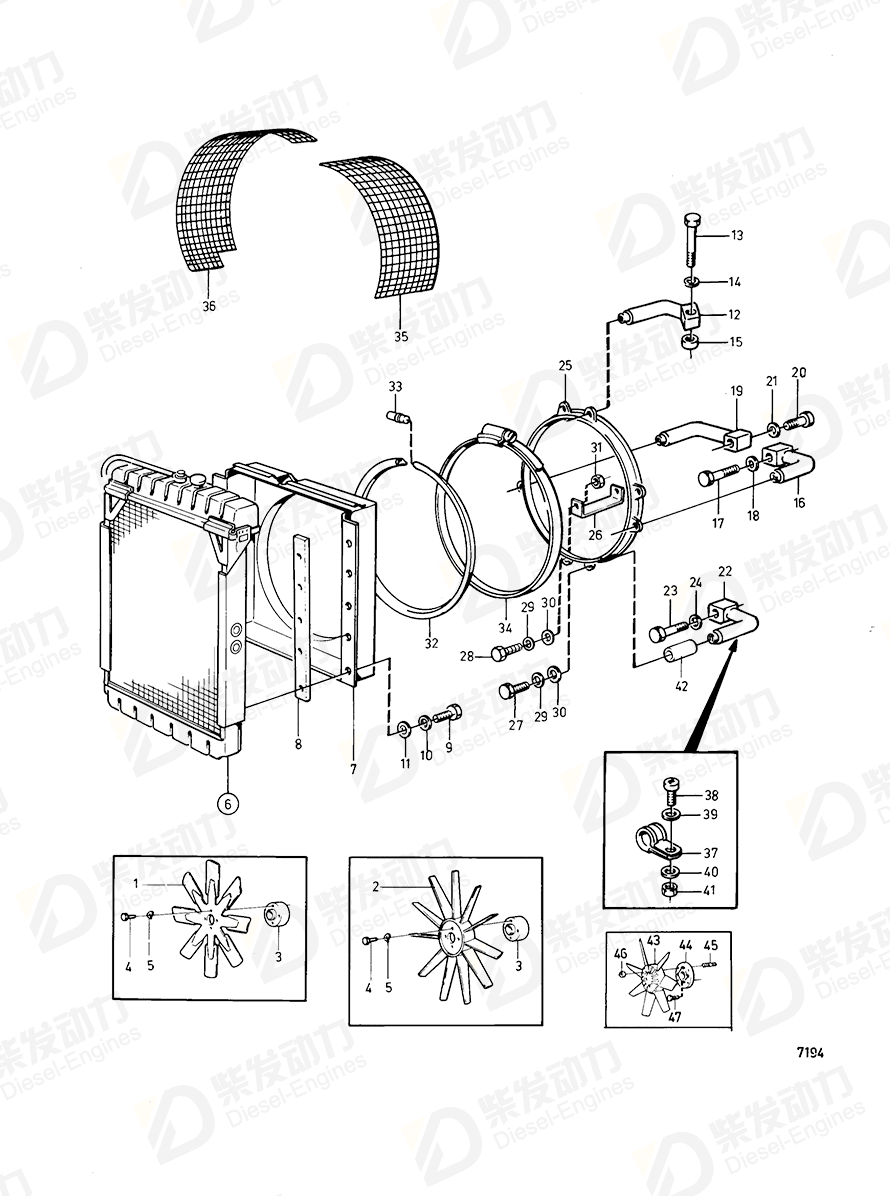

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan | 843517 | 1 | Åkerman spec. 867454., D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867061, 867063, 867277. TD70B spec. 867065. D70B spec. 867059, 867260 alt. D70BK alt., D=620mm |
| 1 | Fan, suction type | 864613 | 1 | Alt |
| 2 | Fan | 843563 | 1 | Spec. 867221., D70B spec. 867062, 867221, 867259, 867260, 867278. TD70B spec 867065 alt. D70BK alt., D=620mm |
| 3 | Spacer ring | 843839 | 1 | |
| 4 | Hexagon screw | 940186 | 4 | |
| 4 | Flange screw | 945444 | 4 | |
| 5 | Spring washer | 941907 | 4 | |
| 7 | Fan shroud | 843641 | 1 | (837284) |
| 7 | Fan shroud | 844696 | 1 | MOXXXXX/30308- |
| 8 | Sealing strip | 821707 | 2 | For engine with 2 pc oil cooler 836821., Spec. 867056, 867058, 867059, 867279. |
| 8 | Sealing strip | 836046 | 2 | Spec. 867054, 867055, 867132, 867259, 867260, 867277 MO-XXXXX/32501. spec. 867278. |
| 9 | Hexagon screw | 955270 | 10 | |
| 9 | Hexagon screw | 955524 | 10 | Used on crankshaft 829999. |
| 10 | Spring washer | 941907 | 10 | |
| 11 | Washer | 899990 | 10 | |
| 11 | Washer | 955893 | 10 | |
| 12 | Anchorage | 843642 | 1 | Left |
| 12 | Anchorage | 843643 | 1 | Right |
| 13 | Hexagon screw | 941252 | 2 | (959800) |
| 14 | Spring washer | 942336 | 2 | |
| 15 | Spacer sleeve | 843028 | 2 | |
| 16 | Anchorage | 843013 | 1 | Left |
| 17 | Hexagon screw | 955539 | 1 | |
| 18 | Spring washer | 942336 | 1 | |
| 19 | Anchorage | 847198 | 1 | |
| 20 | Hexagon screw | 955538 | 1 | |
| 21 | Spring washer | 941908 | 1 | |
| 22 | Anchorage | 846825 | 1 | |
| 23 | Hexagon screw | 955538 | 1 | |
| 24 | Spring washer | 942336 | 1 | |
| 25 | Fan ring | 843694 | 1 | |
| 26 | Anchorage | 846837 | 1 | |
| 27 | Hexagon screw | 955526 | 5 | MD70BK spec 867116 MOXXXX/9685- |
| 28 | Hexagon screw | 955295 | 1 | |
| 29 | Spring washer | 941907 | 6 | |
| 30 | Washer | 960141 | 6 | |
| 31 | Hexagon nut | 955782 | 1 | |
| 32 | Sealing strip | 837300 | 1 | |
| 33 | Connector | 475450 | 1 | |
| 34 | Hose clamp | 947467 | 1 | |
| 35 | Safety net | 847500 | 1 | (843010) alt |
| 36 | Safety net | 847499 | 1 | (843011) alt |
| 37 | Clamp | 952632 | 12 | Late type |
| 38 | Hexagon screw | 945970 | 10 | |
| 38 | Cross recessed screw | 956095 | 12 | |
| 39 | Washer | 192404 | 12 | |
| 40 | Washer | 960139 | 12 | MO201374/XXXXX- |
| 41 | Lock nut | 963105 | 12 | |
| 42 | Spacer tube | 847309 | 5 | |
| 43 | Fan | 846337 | 1 | Visco D=620mm |
| 44 | Pulley | 846332 | 1 | 2 groove |
| 45 | Stud | 924076 | 4 | |
| 46 | Hexagon nut | 955783 | 4 | |
| 47 | Hex. socket screw | 956570 | 4 |
| Item | Part Name | Part No. |
| 44 | Pulley 846332 | 846332 |
| Details | |
| Engine model | TD100G TD100G-85 TD100GG TD100GP TID100K |
| Application | Fan, Fan-and Belt Guard with Installation Components: A Fan, Fan-and Belt Guard with Installation Components: B Fan, Fan-and Belt Guard with Installation Components: C Radiator and Installation Components 35CG: A |
| Specification | |
| Descriptions | 2 groove 2-Groove Spec 867925 |
