Radiation shield 3884787

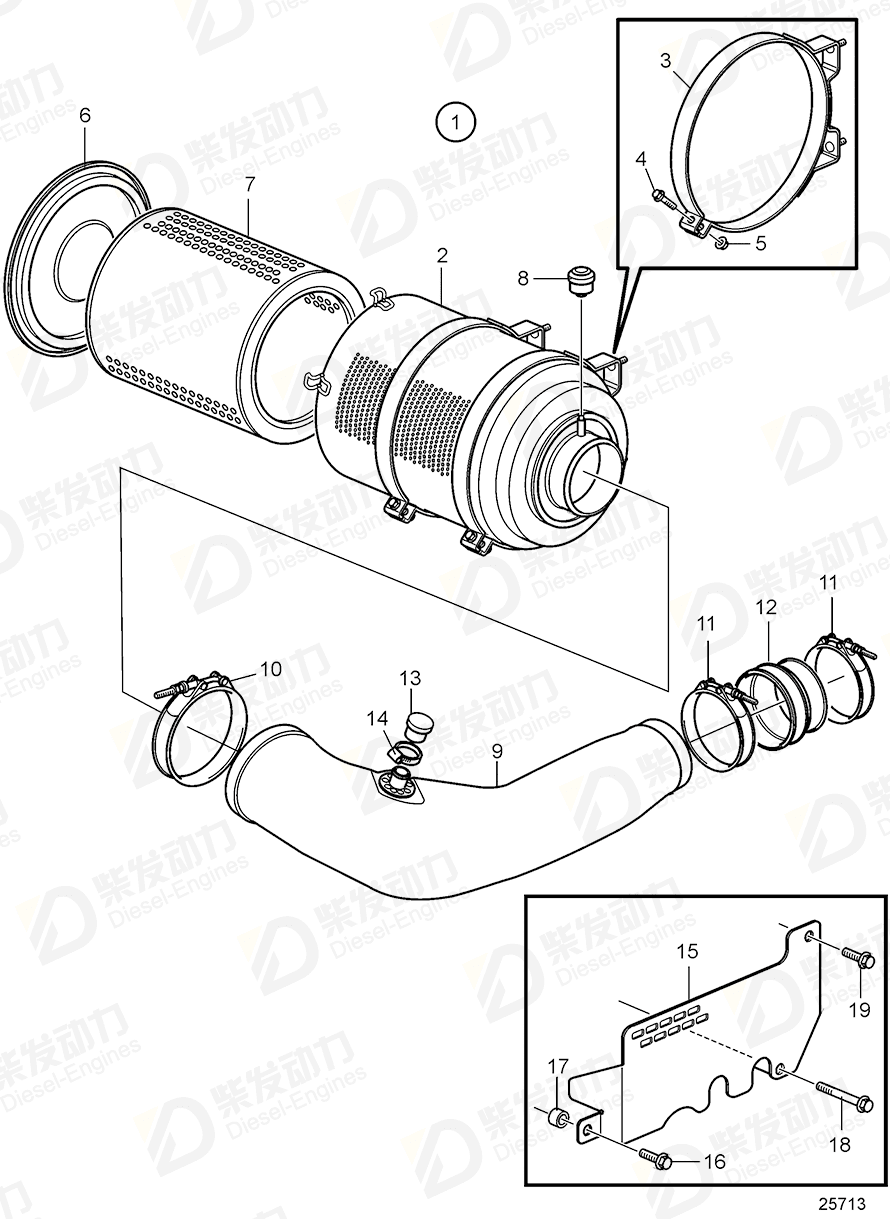

| No. | Part Name | Part Number | Qty | Description |
| 1 | Air filter | 21202071 | 1 | |
| 3 | Mounting strap | 3831143 | 2 | |
| 7 | Insert | 21186955 | 1 | |
| 8 | Pressure drop indica | 3828765 | 1 | |
| 9 | Connection pipe | 21489980 | 1 | |
| 10 | Hose clamp | 1674223 | 1 | |
| 11 | Hose clamp | 1544735 | 2 | |
| 12 | Rubber collar | 21488062 | 1 | |
| 13 | Plastic plug | 845422 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 14 | Hose clamp | 961668 | 1 | |
| 15 | Radiation shield | 3884787 | 1 | |
| 16 | Flange screw | 975110 | 1 | |
| 17 | Spacer sleeve | 948007 | 1 | |
| 18 | Flange screw | 968553 | 1 | L=115mm |
| 19 | Flange screw | 984753 | 1 |
| Item | Part Name | Part No. |
| 15 | Radiation shield 3884787 | 3884787 |
| Details | |
| Engine model | TAD1650VE |
| Application | Air Filter with Installation Components, Standard, New Air Filter with Installation Components, Standard, Old |
