Radiator hose 1195577

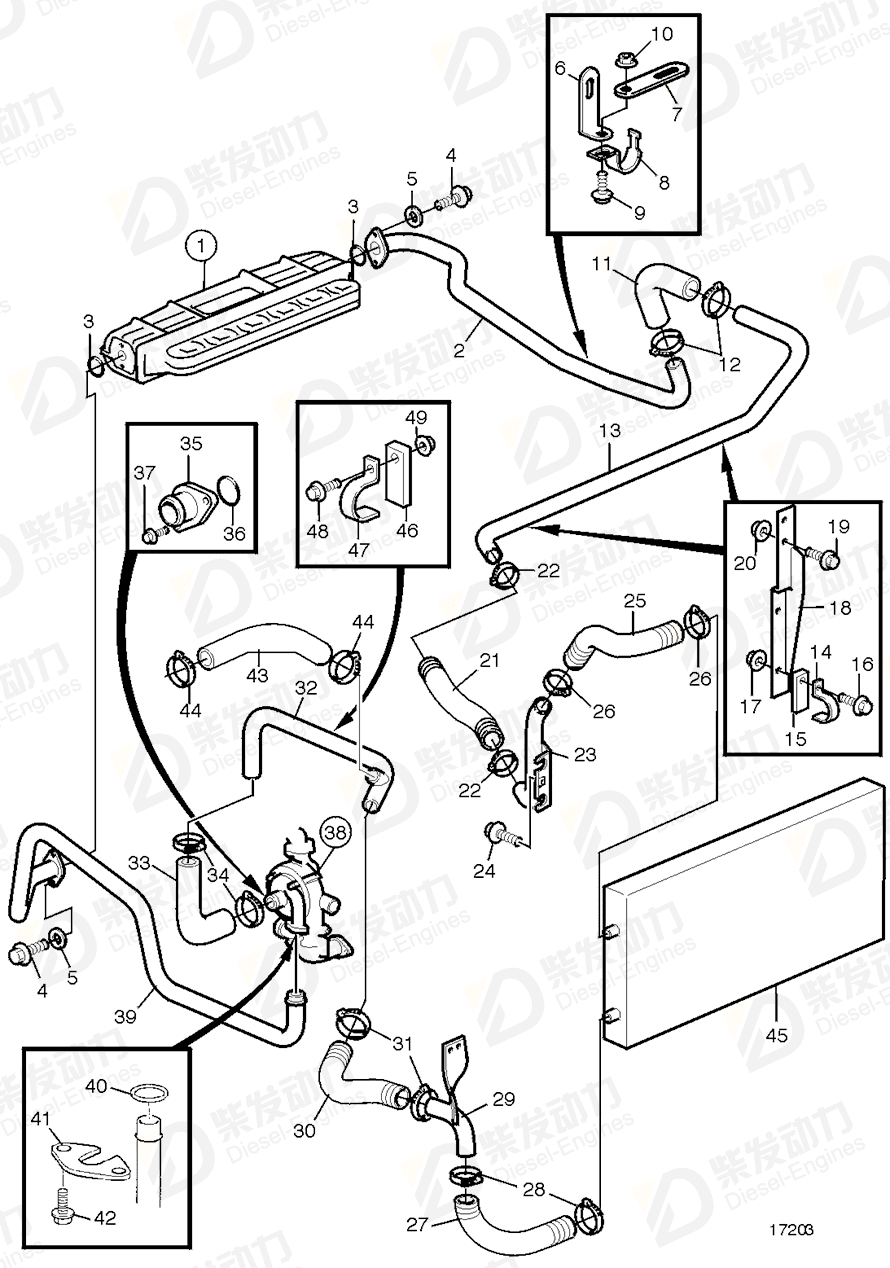

| No. | Part Name | Part Number | Qty | Description |
| 2 | Coolant pipe | 9521746 | 1 | |
| 3 | O-ring | 949722 | 2 | |
| 4 | Flange screw | 946173 | 4 | |
| 5 | Washer | 955894 | 4 | |
| 6 | Bracket | 965552 | 1 | |
| 7 | Bracket | 965538 | 1 | |
| 8 | Attaching clamp | 425323 | 1 | |
| 9 | Flange screw | 945444 | 1 | |
| 10 | Flange nut | 945408 | 1 | |
| 11 | Radiator hose | 1195577 | 1 | For THD102KB, THD102KD and DH10A prod.nr 868835. |
| 12 | Hose clamp | 994562 | 2 | Spec. 9882, 9961., (951793) |
| 13 | Coolant pipe | 9520977 | 1 | For THD102KB, THD102KD and DH10A prod.nr 868835 |
| 14 | Clamp | 967943 | 2 | For THD102KB, THD102KD and DH10A prod.nr 868835. |
| 15 | Spacer | 1190059 | 2 | For THD102KB, THD102KD and DH10A prod.nr 868835 |
| 16 | Flange screw | 945444 | 2 | |
| 17 | Flange lock nut | 948645 | 2 | |
| 18 | Bracket | 9520976 | 1 | For THD102KB, THD102KD and DH10A prod.nr 868835 |
| 19 | Flange screw | 946671 | 6 | |
| 20 | Flange lock nut | 948645 | 6 | |
| 21 | Hose | 467739 | 1 | |
| 22 | Hose clamp | 994562 | 2 | Spec. 9882, 9961., (951793) |
| 23 | Coolant pipe | 9520978 | 1 | For THD102KB, THD102KD and DH10A prod.nr 868835 |
| 24 | Flange screw | 947542 | 1 | |
| 25 | Hose | 467739 | 1 | |
| 26 | Hose clamp | 994562 | 2 | Spec. 9882, 9961., (951793) |
| 27 | Hose | 467739 | 2 | |
| 28 | Hose clamp | 994562 | 2 | Spec. 9882, 9961., (951793) |
| 29 | Coolant pipe | 9521627 | 1 | For THD102KB, THD102KD and DH10A prod.nr 868835. |
| 30 | Hose | 467739 | 1 | |
| 31 | Hose clamp | 994562 | 2 | Spec. 9882, 9961., (951793) |
| 32 | Coolant pipe | 9520979 | 1 | For THD102KB, THD102KD and DH10A prod.nr 868835 |
| 33 | Radiator hose | 3031077 | 1 | For THD102KB, THD102KD and DH10A prod.nr 868835. |
| 34 | Hose clamp | 994562 | 2 | Spec. 9882, 9961., (951793) |
| 35 | Connection flange | 9956174 | 1 | |
| 36 | O-ring | 949722 | 1 | |
| 37 | Flange screw | 946173 | 2 | |
| 39 | Coolant pipe | 3979211 | 1 | (425733) |
| 40 | Sealing ring | 469982 | 1 | |
| 41 | Flange | 469950 | 1 | |
| 42 | Flange screw | 946173 | 2 | |
| 43 | Radiator hose | 3031816 | 1 | |
| 44 | Hose clamp | 994561 | 2 | |
| 46 | Clamp | 967943 | 1 | For THD102KB, THD102KD and DH10A prod.nr 868835. |
| 47 | Spacer | 1190059 | 1 | For THD102KB, THD102KD and DH10A prod.nr 868835 |
| 48 | Flange screw | 945444 | 1 | |
| 49 | Flange lock nut | 948645 | 1 |
| Item | Part Name | Part No. |
| 11 | Radiator hose 1195577 | 1195577 |
| Details | |
| Engine model | DH10A, THD102KD, THD102KB |
| Application | Aftercooler Aftercooler, SN1201090022- |
| Specification | |
| Descriptions | For THD102KB, THD102KD and DH10A prod.nr 868835. |
