Radiator hose 3827051

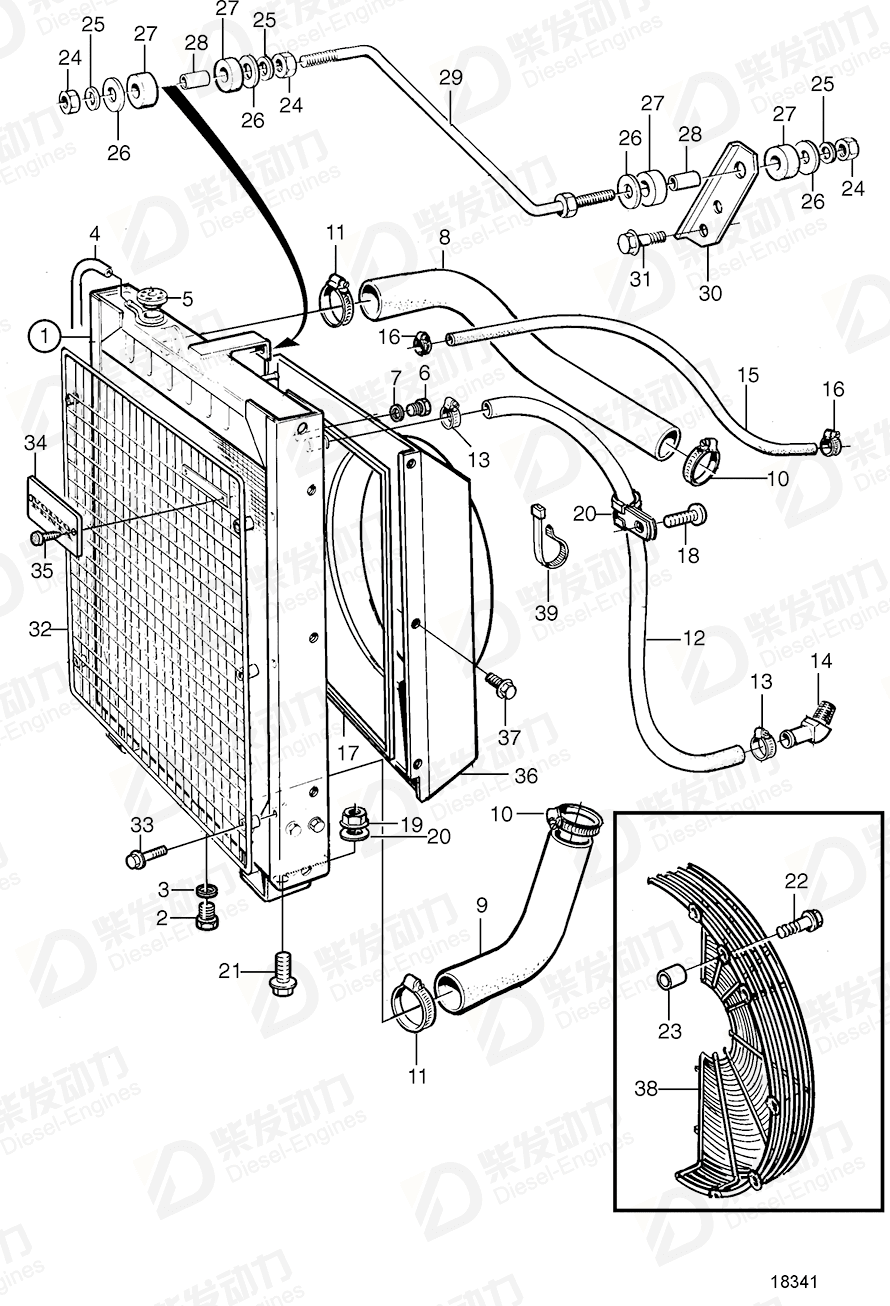

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 3827338 | 1 | |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 969011 | 1 | |
| 4 | Hose | 192618 | 1 | L=1400mm |
| 5 | Pressure cap | 866095 | 1 | (350578) |
| 6 | Plug | 947660 | 1 | (836268) |
| 7 | Gasket | 11994 | 1 | |
| 8 | Radiator hose | 3827051 | 1 | |
| 9 | Radiator hose | 3827052 | 1 | |
| 10 | Hose clamp | 943479 | 2 | |
| 11 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 12 | Rubber hose | 944386 | 1 | |
| 13 | Hose clamp | 994560 | 2 | |
| 14 | Elbow nipple | 942649 | 1 | |
| 15 | Rubber hose | 943367 | 1 | L=1700mm |
| 16 | Hose clamp | 994556 | 2 | |
| 17 | Sealing strip | 3827816 | 1 | (3831141) |
| 17 | Sealing strip | 3827817 | 1 | L=900mm |
| 18 | Six point socket scr | 972603 | 1 | |
| 19 | Flange lock nut | 971099 | 1 | |
| 20 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 21 | Flange screw | 946817 | 2 | |
| 22 | Flange screw | 946671 | 12 | |
| 23 | Spacer sleeve | 843075 | 12 | |
| 24 | Hexagon nut | 955793 | 3 | |
| 25 | Spring washer | 941912 | 3 | |
| 26 | Washer | 191940 | 4 | |
| 27 | Rubber bushing | 866857 | 4 | |
| 28 | Spacer sleeve | 252202 | 2 | |
| 29 | Stay | 3827050 | 1 | |
| 30 | Attaching plate | 848847 | 1 | |
| 31 | Flange screw | 946173 | 2 | |
| 32 | Radiator protector | 865159 | 1 | |
| 33 | Flange screw | 947760 | 6 | M8x40mm |
| 34 | Emblem | 846118 | 1 | |
| 35 | Screw | 941651 | 2 | |
| 36 | Fan shroud | 3827337 | 1 | |
| 37 | Flange screw | 967949 | 10 | |
| 38 | Fan guard | 3825616 | 2 | SNXXXXXXXXXX/277520- |
| 39 | Cable tie | 948211 | 8 |
| Item | Part Name | Part No. |
| 8 | Radiator hose 3827051 | 3827051 |
| Details | |
| Engine model | TWD740GE TWD740VE |
| Application | Radiator: SN 2071145378-2071170098 Radiator: SN 2071170098- Radiator: SN-2071145377 |
