Radiator hose 821124

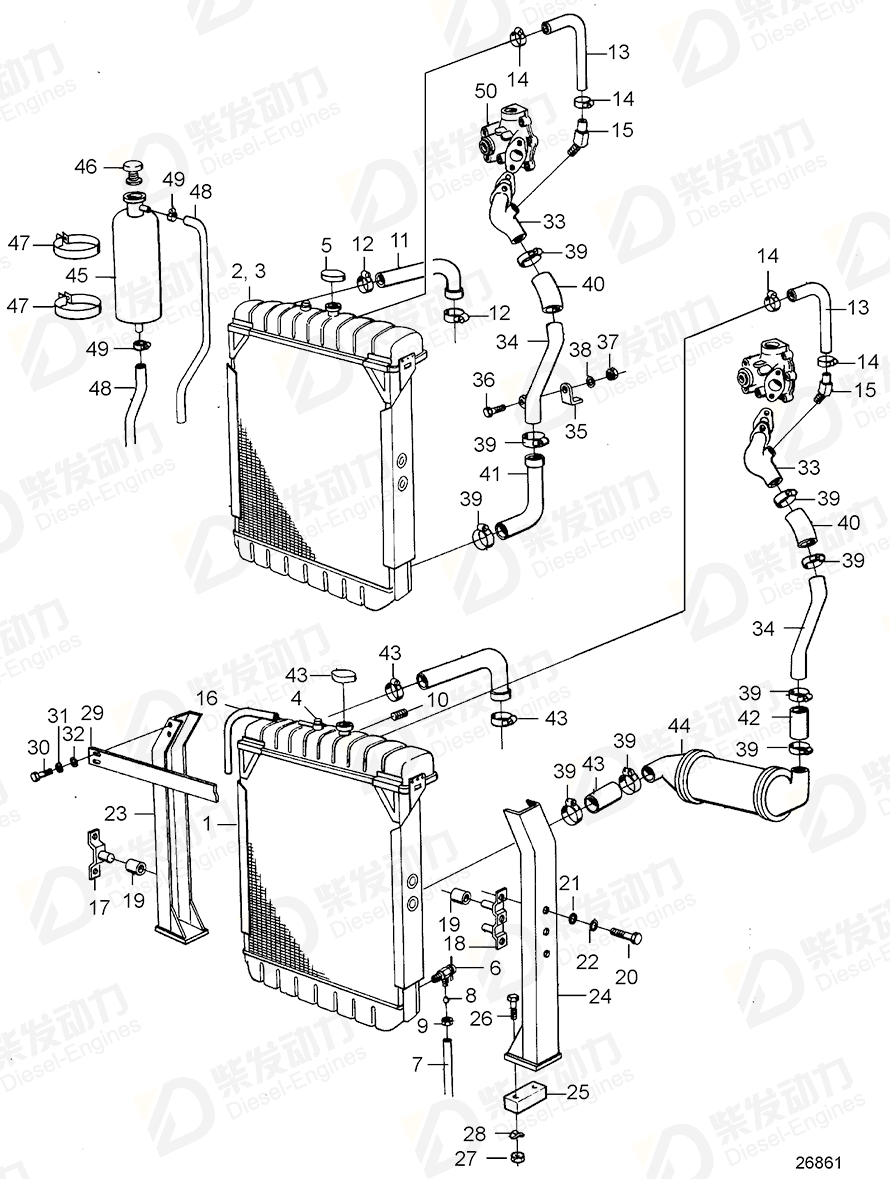

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 821160 | 1 | Åkerman., MO-XXXXX/98707 |
| 2 | Radiator | 822721 | 1 | MOXXXXX/98708-. |
| 3 | Radiator | 822722 | 1 | 2'' alt |
| 4 | Safety valve | 342099 | 1 | |
| 5 | Radiator cap insert | 323685 | 1 | |
| 5 | Radiator cap | 344753 | 1 | |
| 6 | Drain cock | 820436 | 1 | |
| 7 | Tube | 954305 | 1 | L=250mm |
| 8 | Fitting | 954365 | 1 | |
| 9 | Fitting nut | 954357 | 1 | |
| 10 | Plug | 952075 | 1 | |
| 11 | Radiator hose | 821124 | 1 | |
| 12 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 13 | Radiator hose | 342761 | 1 | Early type |
| 14 | Hose clamp | 994560 | 2 | |
| 15 | Elbow nipple | 942649 | 1 | |
| 16 | Hose | 192618 | 1 | L=1400mm |
| 17 | Attaching plate | 341907 | 2 | Right |
| 18 | Attaching plate | 341909 | 1 | Left |
| 19 | Rubber cushion | 823381 | 4 | |
| 20 | Hexagon screw | 940135 | 7 | |
| 21 | Washer | 899990 | 7 | |
| 22 | Spring washer | 941907 | 7 | |
| 23 | Pillar | 820779 | 1 | |
| 24 | Pillar | 820781 | 1 | |
| 25 | Spacer plate | 844505 | 4 | Alt MOXXXXX/33095- |
| 26 | Hexagon screw | 940115 | 6 | |
| 26 | Hexagon screw | 955535 | 2 | |
| 26 | Hexagon screw | 955537 | 8 | |
| 27 | Hexagon nut | 955827 | 8 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 28 | Spring washer | 942336 | 8 | |
| 29 | Cross stay | 821052 | 1 | |
| 30 | Hexagon screw | 955523 | 4 | |
| 31 | Washer | 955894 | 4 | |
| 32 | Spring washer | 941907 | 4 | |
| 34 | Coolant pipe | 820771 | 1 | |
| 35 | Stay | 821636 | 1 | |
| 36 | Hexagon screw | 955514 | 1 | L = 25 MM |
| 37 | Hexagon nut | 955825 | 1 | Late type |
| 38 | Spring washer | 941906 | 1 | |
| 39 | Hose clamp | 943480 | 6 | MO-XXXXX/98707., (951797) |
| 40 | Radiator hose | 821128 | 1 | |
| 41 | Radiator hose | 821125 | 1 | |
| 42 | Rubber hose | 943372 | 1 | L=90mm |
| 43 | Radiator hose | 821684 | 1 | MO-XXXXX/98707. |
| 44 | Oil cooler | 823811 | 1 | Alt |
| 44 | Oil cooler | 823812 | 1 | Alt |
| 44 | Oil cooler | 836821 | 1 | Std |
| 44 | Oil filter | 4785974 | 1 | |
| 45 | Expansion tank | 351579 | 1 | Spec. 867221. |
| 46 | Pressure cap | 673336 | 1 | Spec. 867221. |
| 47 | Bracket | 352120 | 2 | Spec. 867221. |
| 48 | Hose | 13776 | 1 | L=450mm early type |
| 49 | Hose clamp | 994556 | 2 |
| Item | Part Name | Part No. |
| 11 | Radiator hose 821124 | 821124 |
| Details | |
| Engine model | D70B D70CRC, TD70CRC TD70B |
| Application | Radiator and Installation Components: A Radiator and Installation Components: B Radiator with Installation Components |
