Radiator hose 843552

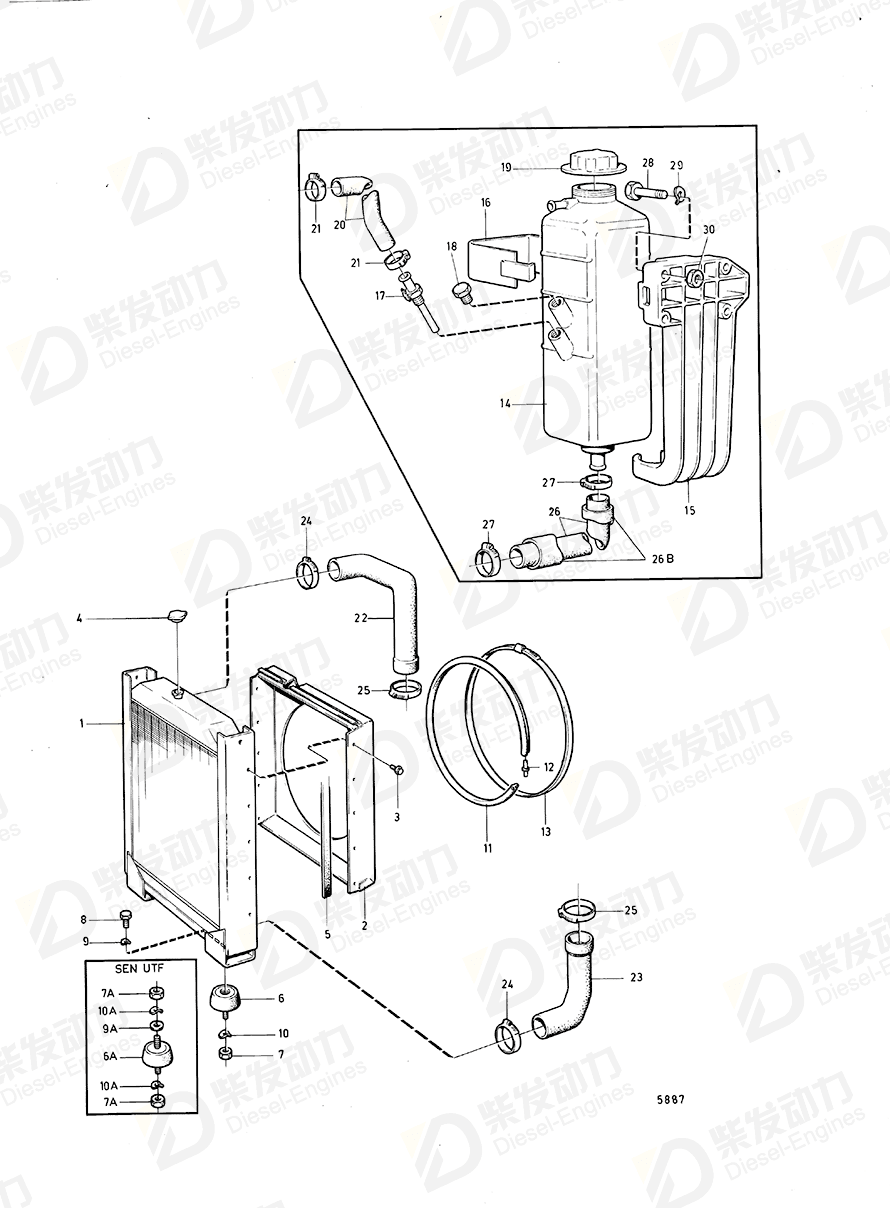

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 843546 | 1 | 2'' |
| 1 | Radiator | 844090 | 1 | 3''repl by 863799 |
| 2 | Fan shroud | 844061 | 1 | |
| 3 | Hexagon screw | 945970 | 10 | |
| 4 | Radiator cap insert | 323685 | 1 | |
| 5 | Sealing strip | 821707 | 2 | For engine with 2 pc oil cooler 836821., Spec. 867056, 867058, 867059, 867279. |
| 6 | Rubber cushion | 833950 | 2 | Spec.868067 |
| 7 | Hexagon nut | 955850 | 2 | |
| 8 | Hexagon screw | 955314 | 2 | Early type |
| 9 | Spring washer | 941908 | 2 | |
| 10 | Spring washer | 940280 | 2 | |
| 11 | Sealing strip | 837300 | 1 | |
| 12 | Connector | 475450 | 1 | |
| 13 | Hose clamp | 947467 | 1 | |
| 14 | Expansion tank | 844062 | 1 | |
| 15 | Bracket | 843260 | 1 | |
| 16 | Clamp | 843266 | 1 | |
| 17 | Connecting pipe | 843247 | 1 | |
| 18 | Plug | 836268 | 1 | |
| 19 | Pressure cap | 844624 | 1 | |
| 20 | Rubber hose | 943366 | 1 | L=600mm late type |
| 20 | Rubber hose | 949381 | 1 | Åkerman., Åkerman spec. 867454., L=600mm |
| 21 | Hose clamp | 945651 | 2 | (943470) |
| 22 | Radiator hose | 843552 | 1 | Early type |
| 23 | Radiator hose | 844057 | 1 | |
| 24 | Hose clamp | 943479 | 2 | |
| 25 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 26 | Rubber hose | 943368 | 1 | L=4000mm |
| 27 | Hose clamp | 943472 | 1 | |
| 28 | Hexagon screw | 955320 | 4 | |
| 29 | Spring washer | 941908 | 4 | |
| 30 | Hexagon nut | 955783 | 4 | |
| 26B | Hose | 826224 | 1 | Late type |
| Item | Part Name | Part No. |
| 22 | Radiator hose 843552 | 843552 |
| Details | |
| Engine model | TD60A TD60B TD60D TD60D-83 TID60DG |
| Application | RADIATOR AND FAN WITH INSTALLATION COMPONENTS: A RADIATOR AND FAN WITH INSTALLATION COMPONENTS: B RADIATOR AND INSTALLATION COMPONENTS Radiator and Installation Components: A Radiator and Installation Components: B |
| Specification | |
| Descriptions | Early type |
