Radiator hose 845156

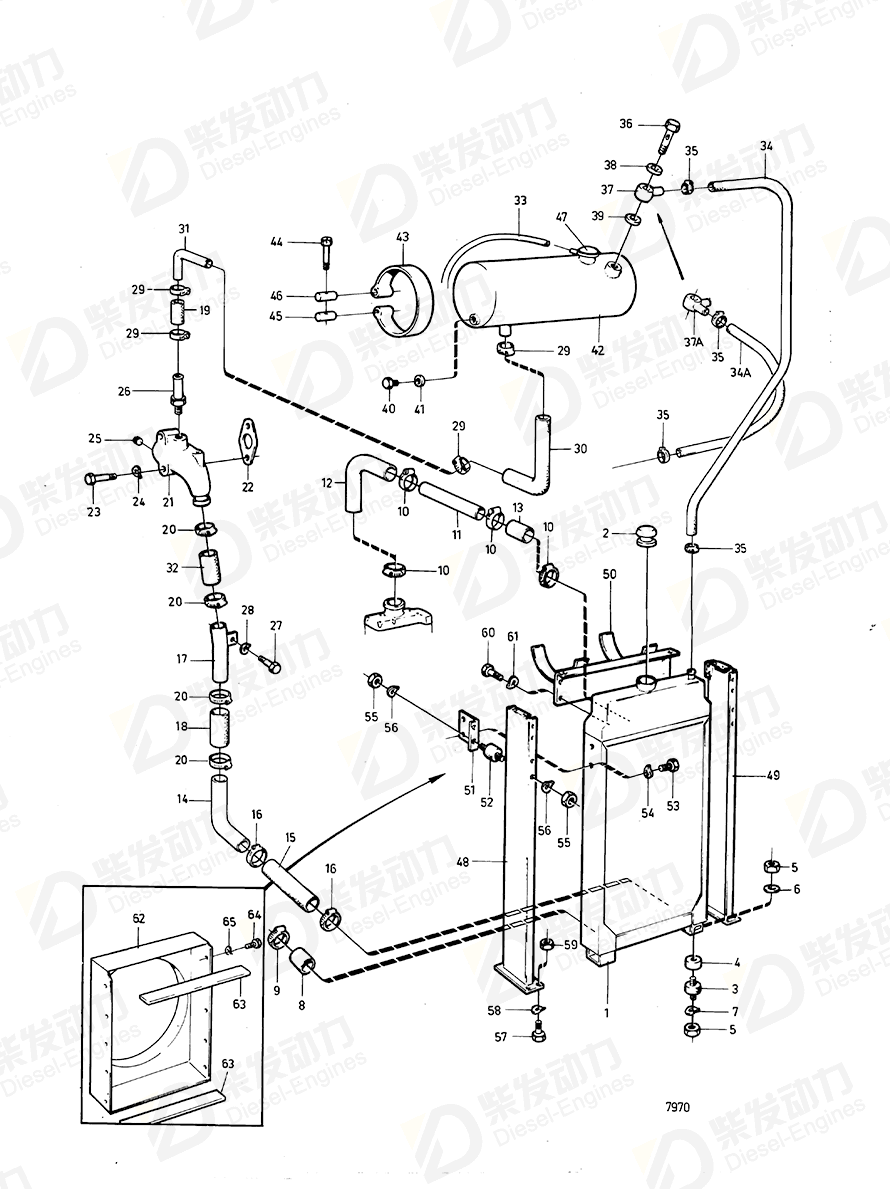

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 843989 | 1 | Classified engine |
| 2 | Radiator cap | 344753 | 1 | |
| 3 | Rubber cushion | 833720 | 2 | |
| 4 | Sleeve | 807228 | 2 | |
| 5 | Hexagon nut | 955850 | 4 | |
| 6 | Washer | 955898 | 2 | Late type |
| 7 | Spring washer | 940280 | 4 | |
| 8 | Rubber cap | 824474 | 1 | |
| 9 | Hose clamp | 943480 | 1 | MO-XXXXX/98707., (951797) |
| 10 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 11 | Coolant pipe | 845155 | 1 | Late type |
| 12 | Radiator hose | 845156 | 1 | Late type |
| 13 | Hose | 952980 | 1 | L=60mm |
| 14 | Coolant pipe | 845271 | 1 | Late type |
| 15 | Hose | 952980 | 1 | L=60mm |
| 16 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 17 | Coolant pipe | 846832 | 1 | |
| 18 | Hose | 952980 | 1 | L=60mm |
| 19 | Hose | 952980 | 1 | L=60mm |
| 20 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 21 | Pipe elbow, pipe | 423137 | 1 | For turbo with rotor 842832., (822430) |
| 22 | Gasket | 423138 | 1 | |
| 23 | Hexagon screw | 955537 | 1 | |
| 23 | Hexagon screw | 955540 | 1 | MOXXXXX/105195- |
| 24 | Spring washer | 942336 | 2 | |
| 25 | Plug | 952077 | 2 | |
| 26 | Nipple | 941845 | 1 | |
| 27 | Cross recessed screw | 956092 | 1 | (241793) |
| 28 | Spring washer | 941906 | 1 | |
| 29 | Hose clamp | 943475 | 4 | |
| 30 | Hose | 826224 | 1 | Late type |
| 31 | Coolant pipe | 845276 | 1 | Late type |
| 32 | Hose | 952980 | 1 | L=60mm |
| 33 | Hose | 192618 | 1 | L=1400mm |
| 34 | Rubber hose | 943366 | 1 | L=600mm late type |
| 35 | Hose clamp | 945651 | 4 | (943470) |
| 36 | Hollow screw | 944153 | 1 | |
| 37 | Banjo nipple | 836267 | 1 | |
| 38 | Gasket | 957178 | 1 | |
| 39 | Gasket | 957177 | 1 | Spec. 867131. |
| 40 | Plug | 947660 | 1 | (836268) |
| 41 | Gasket | 957175 | 1 | |
| 42 | Expansion tank | 836199 | 1 | |
| 43 | Tensioning band | 339958 | 2 | |
| 44 | Hexagon screw | 31406 | 2 | |
| 45 | Clevis pin, threaded | 31404 | 2 | |
| 46 | Pin | 31405 | 2 | |
| 47 | Pressure cap | 350578 | 1 | (321973) |
| 48 | Bracket | 837221 | 1 | Right |
| 49 | Bracket | 837222 | 1 | Left |
| 50 | Cross stay | 837223 | 1 | |
| 51 | Anchorage | 837387 | 2 | |
| 52 | Cushion | 1228599 | 4 | |
| 53 | Hexagon screw | 940199 | 4 | |
| 54 | Spring washer | 941907 | 4 | |
| 55 | Hexagon nut | 955781 | 8 | |
| 56 | Spring washer | 941906 | 8 | |
| 57 | Hexagon screw | 940134 | 8 | |
| 58 | Spring washer | 941909 | 8 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 59 | Hexagon nut | 940157 | 8 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 60 | Hexagon screw | 940114 | 6 | |
| 61 | Spring washer | 942336 | 6 | |
| 62 | Fan shroud | 844696 | 1 | MOXXXXX/30308- |
| 63 | Sealing strip | 836046 | 2 | Spec. 867054, 867055, 867132, 867259, 867260, 867277 MO-XXXXX/32501. spec. 867278. |
| 64 | Hexagon screw | 955270 | 10 | |
| 65 | Washer | 955893 | 10 | |
| 34A | Hose | 13776 | 1 | L=450mm early type |
| 37A | Banjo nipple | 848610 | 1 |
| Item | Part Name | Part No. |
| 12 | Radiator hose 845156 | 845156 |
| Details | |
| Engine model | D100B TD100A TD100G TD100GG |
| Application | Radiator and Installation Components Tropic 45CG: A Radiator and Installation Components Tropic 45CG: B Radiator and Installation Components, Spec Version: A Radiator and Installation Components, Spec Version: B |
| Specification | |
| Descriptions | Late type |
