Radiator hose 849920

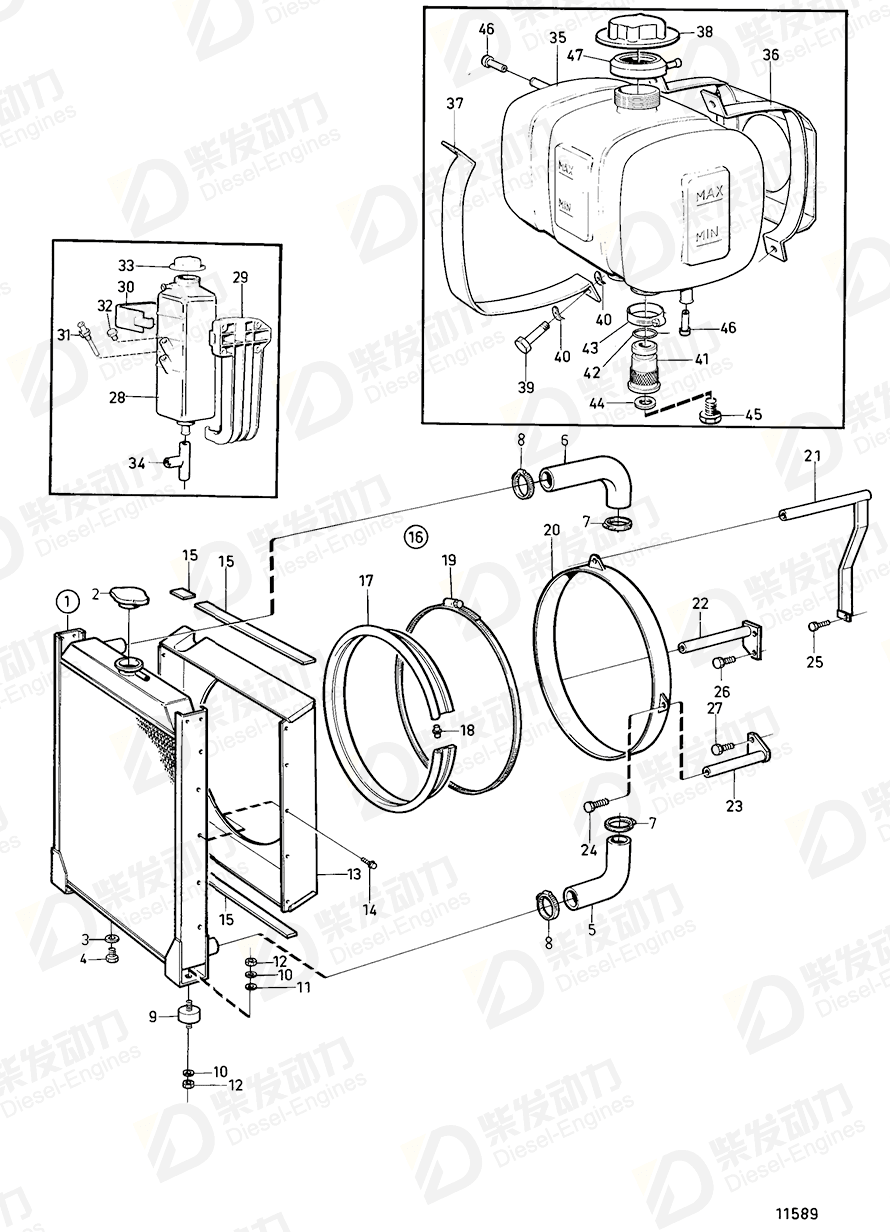

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 863799 | 1 | |
| 2 | Radiator cap | 344753 | 1 | |
| 3 | Gasket | 969011 | 1 | |
| 4 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 5 | Radiator hose | 849920 | 1 | |
| 6 | Radiator hose | 849921 | 1 | |
| 7 | Hose clamp | 943479 | 2 | |
| 8 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 9 | Rubber cushion | 849170 | 2 | |
| 10 | Spring washer | 940280 | 4 | |
| 11 | Washer | 955898 | 2 | Late type |
| 12 | Hexagon nut | 955850 | 4 | |
| 13 | Fan shroud | 844061 | 1 | |
| 14 | Hexagon screw | 945970 | 10 | |
| 15 | Sealing strip | 821707 | 1 | For engine with 2 pc oil cooler 836821., Spec. 867056, 867058, 867059, 867279. |
| 17 | Sealing strip | 837300 | 1 | |
| 18 | Connector | 475450 | 1 | |
| 19 | Hose clamp | 947467 | 1 | |
| 20 | Fan ring | 862184 | 1 | |
| 21 | Support | 862302 | 1 | |
| 22 | Anchorage | 849065 | 1 | |
| 23 | Anchorage | 849064 | 1 | |
| 24 | Flange screw | 947107 | 3 | |
| 25 | Flange screw | 945444 | 1 | |
| 26 | Flange screw | 965179 | 2 | |
| 27 | Flange screw | 946440 | 2 | |
| 28 | Expansion tank | 844062 | 1 | |
| 29 | Bracket | 843260 | 1 | |
| 30 | Clamp | 843266 | 1 | |
| 31 | Connecting pipe | 843247 | 1 | |
| 32 | Plug | 947660 | 1 | (836268) |
| 33 | Pressure cap | 844624 | 1 | |
| 34 | T-pipe | 864863 | 1 | For TWD1010G |
| 35 | Expansion tank | 4804536 | 1 | 8L |
| 36 | Attaching plate | 4952322 | 1 | |
| 37 | Strip | 4804283 | 2 | |
| 38 | Pressure cap | 1542591 | 1 | 50kPa |
| 39 | Hexagon screw | 955294 | 4 | |
| 40 | Spring washer | 941907 | 8 | |
| 41 | Nipple | 11031743 | 1 | |
| 42 | O-ring | 960164 | 1 | |
| 43 | Hose clamp | 943473 | 1 | |
| 44 | Gasket | 11994 | 1 | |
| 45 | Plug | 947660 | 1 | (836268) |
| 46 | Throttle sleeve | 865754 | 2 | |
| 47 | Rubber collar | 3828863 | 1 |
| Item | Part Name | Part No. |
| 5 | Radiator hose 849920 | 849920 |
| Details | |
| Engine model | TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TD630VE, TWD630VE, TD640VE TD61A, TD61AW, TD71A, TD71AW, TID71A TD71A, TID71A, TD730VE, TWD731VE, TWD740VE |
| Application | Radiator Radiator 0,50sqm Radiator and Fan Protection with Installation Components |
