Radiator hose 863159

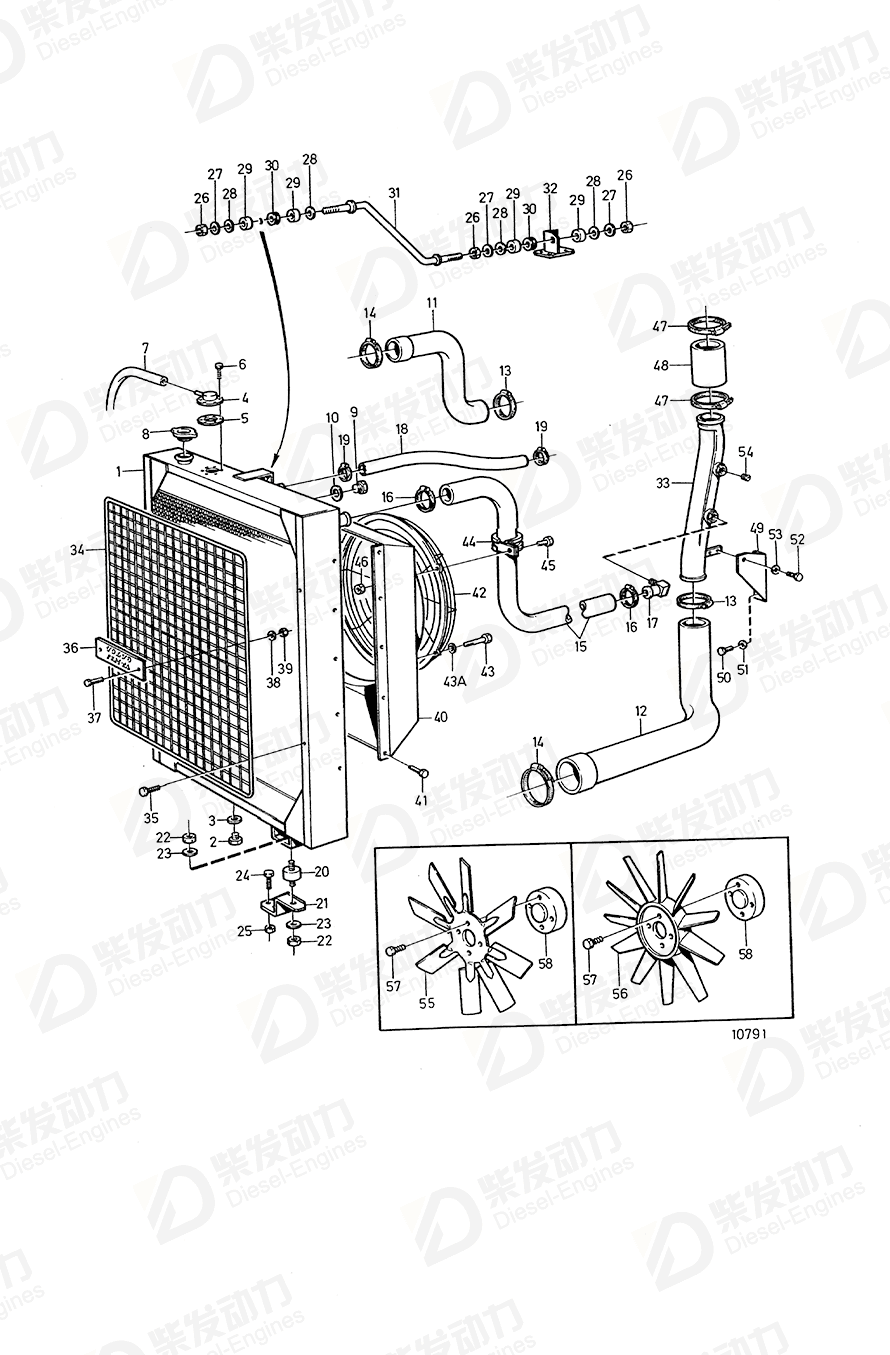

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 863062 | 1 | Repl by 3829277 |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 969011 | 1 | |
| 4 | Delivery valve | 848723 | 1 | |
| 5 | Rubber gasket | 848715 | 1 | |
| 7 | Hose | 192618 | 1 | L=1400mm |
| 8 | Pressure cap | 350578 | 1 | (321973) |
| 9 | Plug | 947660 | 1 | (836268) |
| 10 | Gasket | 11994 | 1 | |
| 11 | Radiator hose | 863159 | 1 | |
| 12 | Radiator hose | 863158 | 1 | |
| 13 | Hose clamp | 943479 | 2 | |
| 14 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 15 | Rubber hose | 944386 | 1 | |
| 16 | Hose clamp | 943475 | 2 | |
| 17 | Elbow nipple | 942649 | 1 | |
| 18 | Hose | 13776 | 1 | L=450mm early type |
| 19 | Hose clamp | 943470 | 2 | |
| 20 | Rubber cushion | 849170 | 2 | |
| 21 | Bracket | 863032 | 2 | |
| 22 | Hexagon nut | 955850 | 4 | |
| 23 | Spring washer | 940280 | 4 | |
| 24 | Flange screw | 946173 | 4 | |
| 25 | Flange lock nut | 948645 | 4 | |
| 26 | Hexagon nut | 955793 | 3 | |
| 27 | Spring washer | 941912 | 3 | |
| 28 | Washer | 191940 | 4 | |
| 29 | Rubber washer | 252203 | 4 | |
| 30 | Spacer sleeve | 252202 | 2 | |
| 31 | Radiator stay | 848846 | 1 | |
| 32 | Anchorage | 863214 | 1 | |
| 33 | Coolant pipe | 846832 | 1 | |
| 34 | Radiator protector | 862957 | 1 | |
| 35 | Flange screw | 947760 | 6 | M8x40mm |
| 36 | Emblem | 846118 | 1 | |
| 37 | Screw | 941651 | 2 | |
| 38 | Washer | 192404 | 2 | |
| 39 | Lock nut | 963103 | 2 | |
| 40 | Fan shroud | 849150 | 1 | |
| 41 | Flange screw | 946025 | 10 | |
| 42 | Fan protector | 862910 | 2 | Replaced by 2pc fan protection 3825685, 4pc sleeve 807425, 4pc screw 947760 and 8pc strip clamp 948211. |
| 43 | Flange screw | 946440 | 4 | |
| 44 | Clamp | 943717 | 1 | |
| 45 | Cross recessed screw | 956094 | 1 | |
| 46 | Lock nut | 963105 | 1 | |
| 47 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 48 | Hose | 952980 | 1 | L=60mm |
| 49 | Bracket | 846834 | 1 | |
| 50 | Hexagon screw | 955541 | 2 | |
| 51 | Spring washer | 942336 | 2 | |
| 52 | Cross recessed screw | 956092 | 1 | (241793) |
| 53 | Spring washer | 949607 | 1 | |
| 54 | Plug | 952077 | 2 | |
| 55 | Fan, suction type | 863221 | 1 | |
| 56 | Fan, pusher type | 863225 | 1 | |
| 57 | Flange screw | 968845 | 6 | |
| 58 | Fan hub | 863029 | 1 | |
| 43A | Washer | 191172 | 4 | Spec.867054, 867221. |
| Item | Part Name | Part No. |
| 11 | Radiator hose 863159 | 863159 |
| Details | |
| Engine model | TD1010G, TWD1010G TID100KGP-87 |
| Application | Radiator and Fan, SN-2100256096 Radiator and Installation Comps. |
