Radiator protector 865208

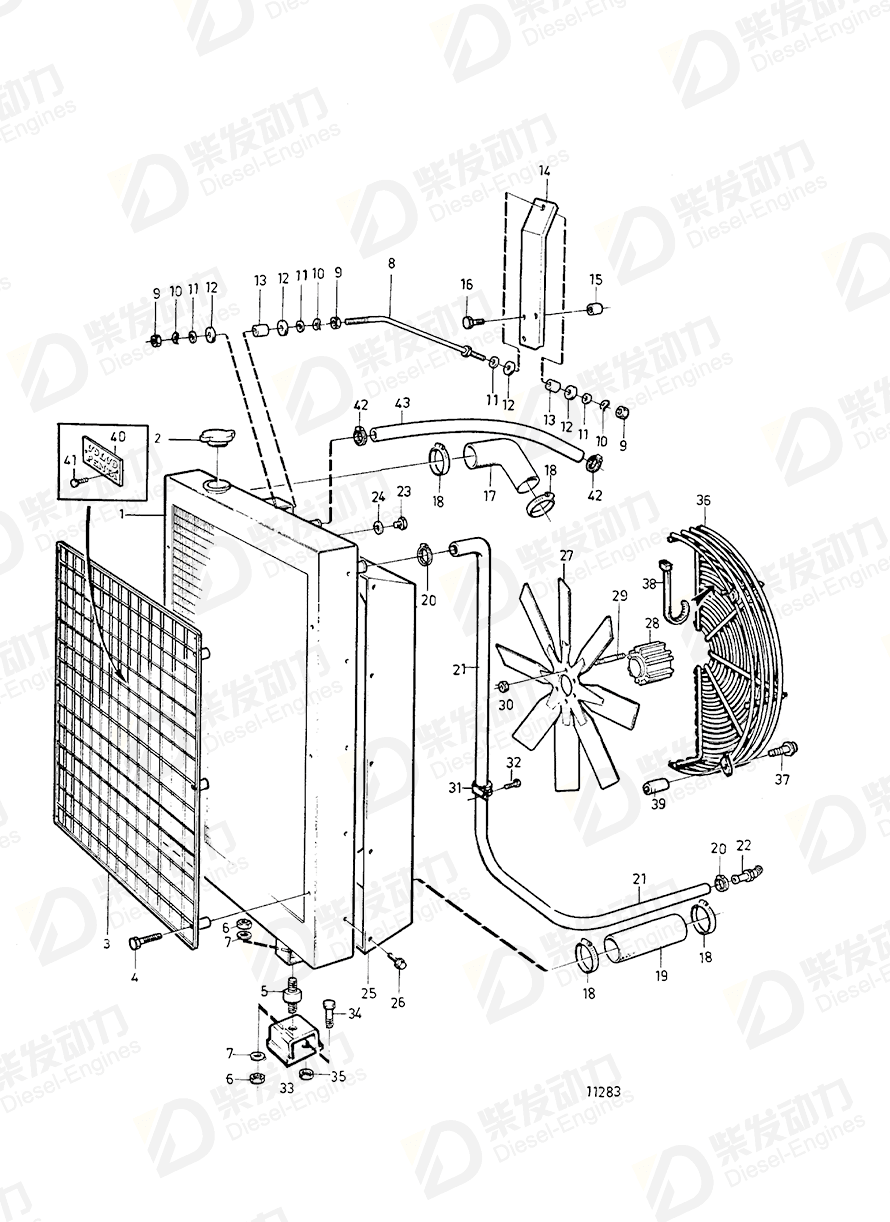

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 3829278 | 1 | |
| 2 | Pressure cap | 866095 | 1 | (350578) |
| 3 | Radiator protector | 865208 | 1 | |
| 4 | Flange screw | 947760 | 6 | M8x40mm |
| 5 | Rubber cushion | 849170 | 2 | |
| 6 | Hexagon nut | 955850 | 4 | |
| 7 | Spring washer | 940280 | 4 | |
| 8 | Radiator stay | 862159 | 1 | |
| 9 | Hexagon nut | 955793 | 3 | |
| 10 | Spring washer | 941912 | 3 | |
| 11 | Washer | 191940 | 4 | |
| 12 | Rubber bushing | 866857 | 4 | |
| 13 | Spacer sleeve | 252202 | 2 | |
| 14 | Bracket | 862161 | 1 | |
| 15 | Spacer sleeve | 847239 | 3 | |
| 17 | Radiator hose | 862102 | 1 | |
| 18 | Hose clamp | 961673 | 4 | |
| 19 | Radiator hose | 849738 | 1 | |
| 20 | Hose clamp | 994560 | 2 | |
| 21 | Rubber hose | 944386 | 1 | |
| 22 | Elbow nipple | 942649 | 1 | |
| 23 | Plug | 947660 | 1 | (836268) |
| 24 | Gasket | 11994 | 1 | |
| 25 | Fan shroud | 848889 | 1 | SN-XXXXX19089 |
| 25 | Fan shroud | 3828012 | 1 | |
| 26 | Flange screw | 966807 | 12 | |
| 27 | Fan, pusher type | 848924 | 1 | |
| 27 | Fan, suction type | 848925 | 1 | For external produced radiator., D=890mm, alt |
| 28 | Fan hub | 3828712 | 1 | (862495) |
| 29 | Stud | 969199 | 6 | |
| 30 | Flange nut | 971095 | 6 | Alt |
| 31 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 32 | Hexagon screw | 945970 | 1 | |
| 33 | Bracket | 3826264 | 2 | (865242) |
| 34 | Flange screw | 946329 | 4 | |
| 35 | Flange lock nut | 971098 | 4 | |
| 36 | Fan guard | 3825616 | 2 | SNXXXXXXXXXX/277520- |
| 37 | Flange screw | 973924 | 4 | |
| 38 | Cable tie | 948211 | 8 | |
| 39 | Spacer sleeve | 807425 | 4 | L=24mm |
| 40 | Emblem | 846118 | 1 | |
| 41 | Screw | 941651 | 2 | |
| 42 | Hose clamp | 994556 | 2 | |
| 43 | Rubber hose | 943366 | 1 | L=600mm late type |
| Item | Part Name | Part No. |
| 3 | Radiator protector 865208 | 865208 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TAD1351VE, TAD1352VE, TAD1353VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE TAD870VE, TAD871VE, TAD872VE, TAD873VE TID162AGP, TID162AP TWD1620G TWD1630G |
| Application | Radiator and Fan Radiator and Fan, Later Prod. Radiator and Metal Fan Radiator and Plastic Fan, SN-2160048211 Radiator Protector |
