Regulator hub 240856

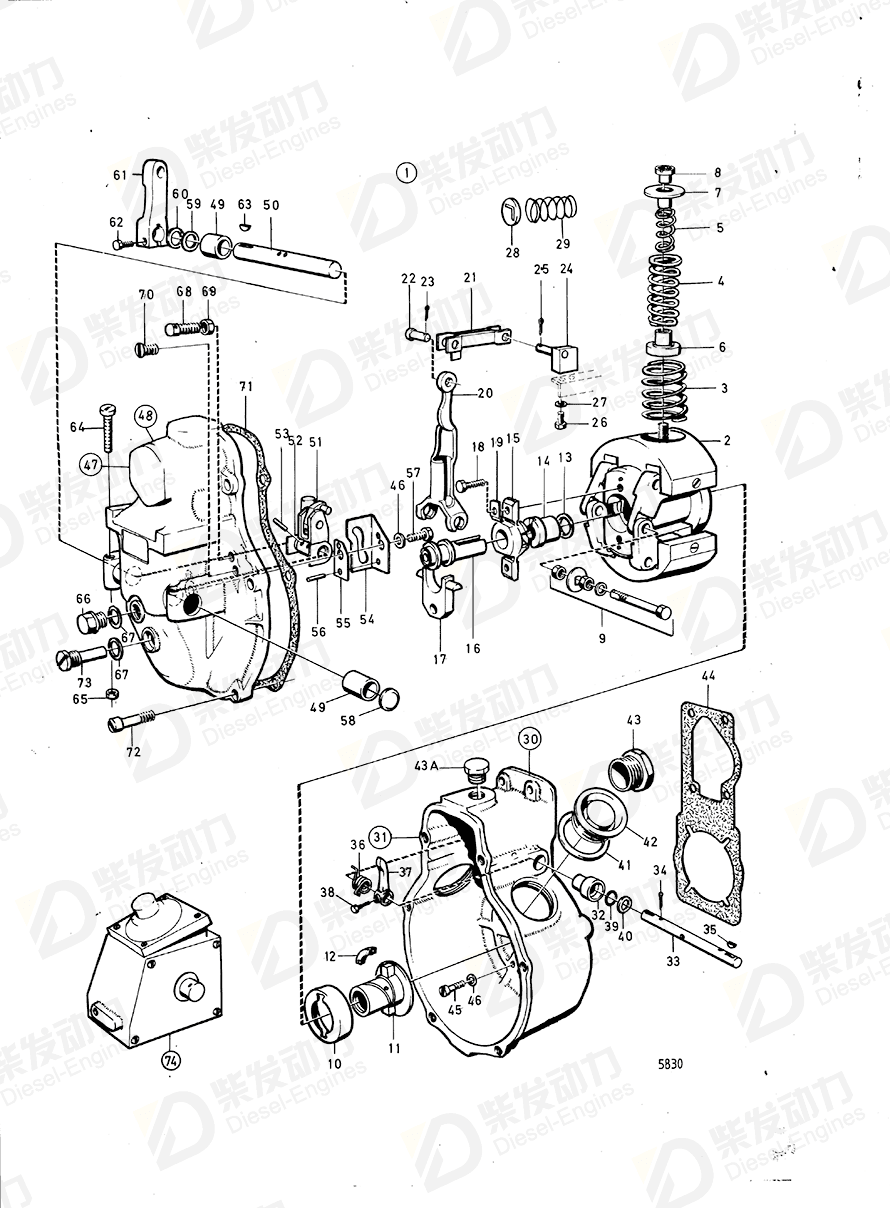

| No. | Part Name | Part Number | Qty | Description |
| 1 | Governor | 244465 | 1 | |
| 2 | Regulator hub | 240856 | 1 | |
| 3 | Spring | 241764 | 2 | For governor 228-750. |
| 4 | Spring | 238743 | 2 | |
| 5 | Spring | 244466 | 2 | |
| 6 | Spring disc | 239298 | 2 | TH=3.75mm |
| 7 | Spring disc | 241101 | 2 | |
| 9 | Screw kit | 233052 | 1 | |
| 10 | Cap | 241123 | 1 | |
| 11 | Companion flange | 241122 | 1 | |
| 12 | Shock absorber | 233130 | 4 | |
| 13 | Adjusting washer | 233088 | 1 | TH=1.90mm |
| 13 | Adjusting washer | 233413 | 1 | TH=1.95mm |
| 13 | Adjusting washer | 238106 | 1 | TH=1.60mm |
| 13 | Washer | 240563 | 1 | TH=2.05mm |
| 13 | Adjusting washer | 240564 | 1 | TH=2.10mm |
| 13 | Adjusting washer | 244755 | 1 | TH=1,66mm |
| 13 | Adjusting washer | 244756 | 1 | TH=1,69mm |
| 13 | Adjusting washer | 244758 | 1 | TH=1,75mm |
| 13 | Adjusting washer | 244760 | 1 | TH=1,81mm |
| 13 | Adjusting washer | 244761 | 1 | TH=1,84mm |
| 13 | Adjusting washer | 244766 | 1 | TH=1,99mm |
| 14 | Round nut | 240678 | 1 | |
| 15 | Bushing | 240051 | 1 | |
| 16 | Setting bolt | 241801 | 1 | |
| 17 | Link | 240682 | 1 | |
| 19 | Striker plate | 240565 | 2 | |
| 20 | Arm | 240683 | 1 | |
| 21 | Link | 244397 | 1 | |
| 22 | Bolt | 243447 | 1 | |
| 26 | Cross recessed screw | 956076 | 2 | |
| 27 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 28 | Spring disc | 244718 | 1 | |
| 29 | Spring | 244719 | 1 | |
| 32 | Bushing | 240059 | 2 | |
| 33 | Shaft | 233404 | 1 | |
| 34 | Split pin | 907824 | 2 | |
| 35 | Key | 77582 | 1 | |
| 36 | Bearing cover | 240021 | 1 | |
| 37 | Lever | 240060 | 1 | |
| 38 | Screw | 241102 | 1 | |
| 39 | Gasket | 239908 | 2 | |
| 40 | Washer | 233372 | 1 | |
| 41 | Washer | 240689 | 1 | |
| 42 | Plug | 240688 | 1 | |
| 43 | Bushing | 240120 | 1 | |
| 44 | Gasket | 240058 | 1 | |
| 46 | Spring washer | 941906 | 1 | |
| 47 | Cover | 244467 | 1 | |
| 49 | Bushing | 240691 | 2 | |
| 50 | Shaft | 240434 | 1 | |
| 52 | Washer | 238128 | 1 | |
| 53 | Pin | 233103 | 2 | |
| 54 | Washer | 238127 | 1 | |
| 55 | Spacer | 233071 | 1 | TH=0.2mm |
| 55 | Spacer | 233072 | 1 | TH=0.3mm |
| 55 | Spacer | 233427 | 1 | TH=0.8mm |
| 55 | Plate | 240568 | 1 | TH=0.5mm |
| 56 | Pin | 233104 | 2 | |
| 59 | Sealing ring | 240063 | 1 | |
| 60 | Washer | 238132 | 1 | |
| 60 | Washer | 240065 | 1 | TH=2.5mm |
| 61 | Intermediate lever | 239316 | 1 | |
| 63 | Woodruff key | 910112 | 1 | |
| 64 | Screw | 241847 | 1 | |
| 65 | Hexagon nut | 955781 | 1 | |
| 66 | Screw | 240570 | 1 | |
| 67 | Gasket | 18836 | 2 | |
| 68 | Screw | 244553 | 1 | |
| 69 | Nut | 243844 | 1 | |
| 71 | Gasket | 239889 | 1 | |
| 73 | Screw | 239927 | 1 | |
| 74 | Smoke limiter | 243257 | 1 | |
| 43A | Plug | 240919 | 1 |
| Item | Part Name | Part No. |
| 2 | Regulator hub 240856 | 240856 |
| Details | |
| Application | Centrifugal Governor Centrifugal Governor: 241737 Centrifugal Governor: 243829 Centrifugal Governor: 6212666 Centrifugal Governor: 830799 |
