Relay 1577375

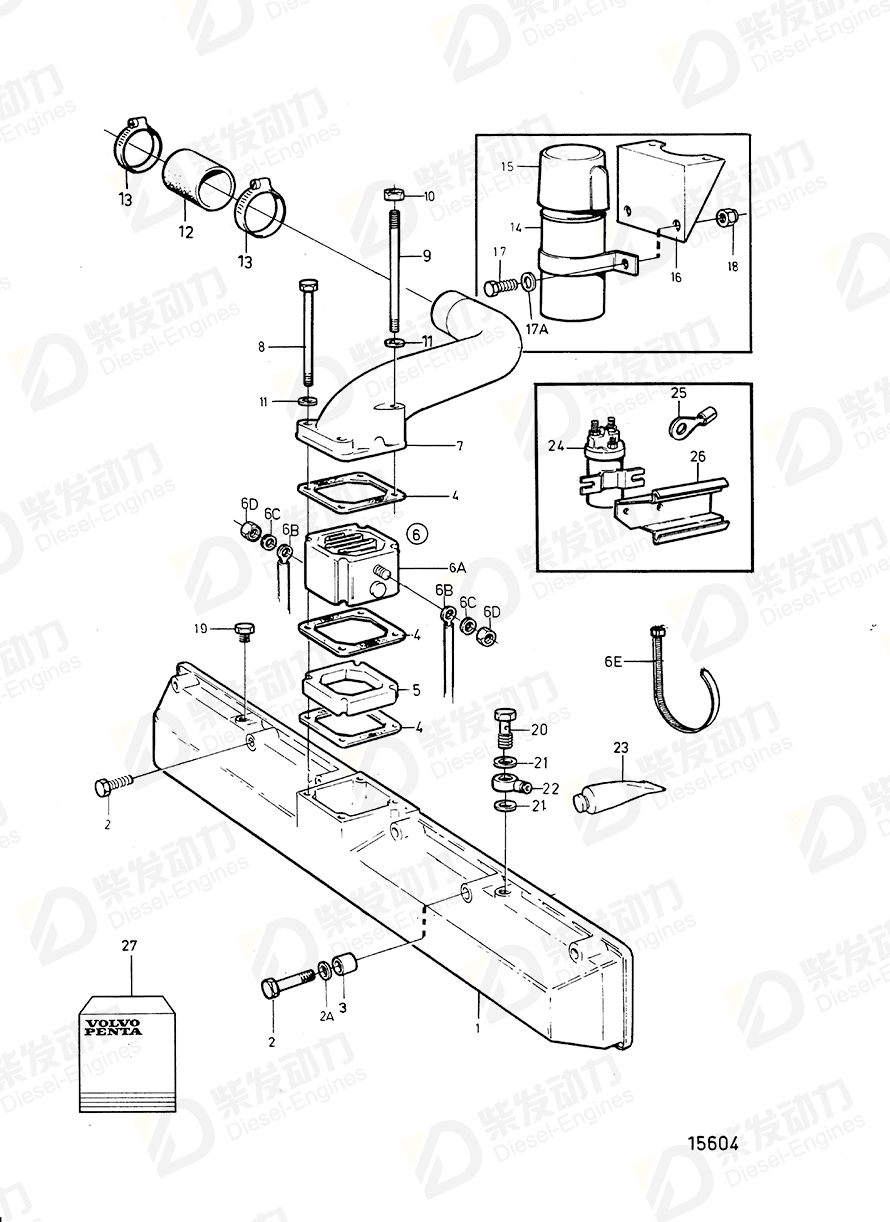

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe | 420509 | 1 | |
| 2 | Flange screw | 965180 | 12 | |
| 2 | Flange screw | 965182 | 1 | |
| 3 | Spacer sleeve | 826652 | 1 | |
| 4 | Gasket | 471682 | 3 | Included in gasket kit. |
| 5 | Spacer | 848534 | 1 | |
| 6 | Starter element | 848959 | 1 | 24V |
| 6 | Heater | 863377 | 1 | 12V |
| 7 | Tube | 465251 | 1 | SEE GROUP 3 |
| 8 | Hexagon screw | 955311 | 2 | |
| 9 | Stud | 942283 | 2 | |
| 10 | Hexagon nut | 946330 | 2 | |
| 11 | Washer | 955894 | 4 | |
| 13 | Hose clamp | 943479 | 2 | |
| 14 | Relay | 873962 | 1 | |
| 15 | Casing | 1581123 | 1 | |
| 16 | Attaching plate | 843400 | 1 | |
| 17 | Hexagon screw | 955244 | 2 | |
| 18 | Lock nut | 946577 | 2 | |
| 19 | Plug | 479979 | 1 | |
| 20 | Hollow screw | 969299 | 1 | |
| 21 | Gasket | 11994 | 2 | |
| 23 | Sealant | 1161231 | 1 | 304ml |
| 24 | Relay | 872242 | 1 | 12V, alt |
| 24 | Relay | 1577375 | 1 | Replaced by 1pc relay 872242, 2pcs cabel terminal 881493 and 1pc attaching plate 866463., 12V |
| 25 | Cable terminal | 881493 | 2 | M5x1,1-2,5mm² |
| 26 | Attaching plate | 866463 | 1 | Alt |
| 27 | Intake gasket kit | 876336 | 1 | See group 99 |
| 2A | Washer | 976944 | 1 | |
| 6C | Washer | 955894 | 2 | |
| 6D | Hexagon nut | 17624 | 2 | |
| 6E | Cable tie | 948211 | 3 | |
| 17A | Washer | 940090 | 2 |
| Item | Part Name | Part No. |
| 24 | Relay 1577375 | 1577375 |
| Details | |
| Engine model | TD610G TD610M TD71A TD71AG |
| Application | Induction Manifold with Installation Components: A Induction Manifold with Installation Components: B Inlet Manifold Inlet Manifold: A |
| Specification | |
| Descriptions | 12V,alt Replaced by 1pc relay 872242, 2pcs cabel terminal 881493 and 1pc attaching plate 866463., 12V Replaced by 1pc relay 872242, 2pcs cabel terminal 881493 and 1pc attaching plate 866463., 12V, alt |
Related Products
Tags: Relay, Volvo Penta, 1577375
