Relay 21311705

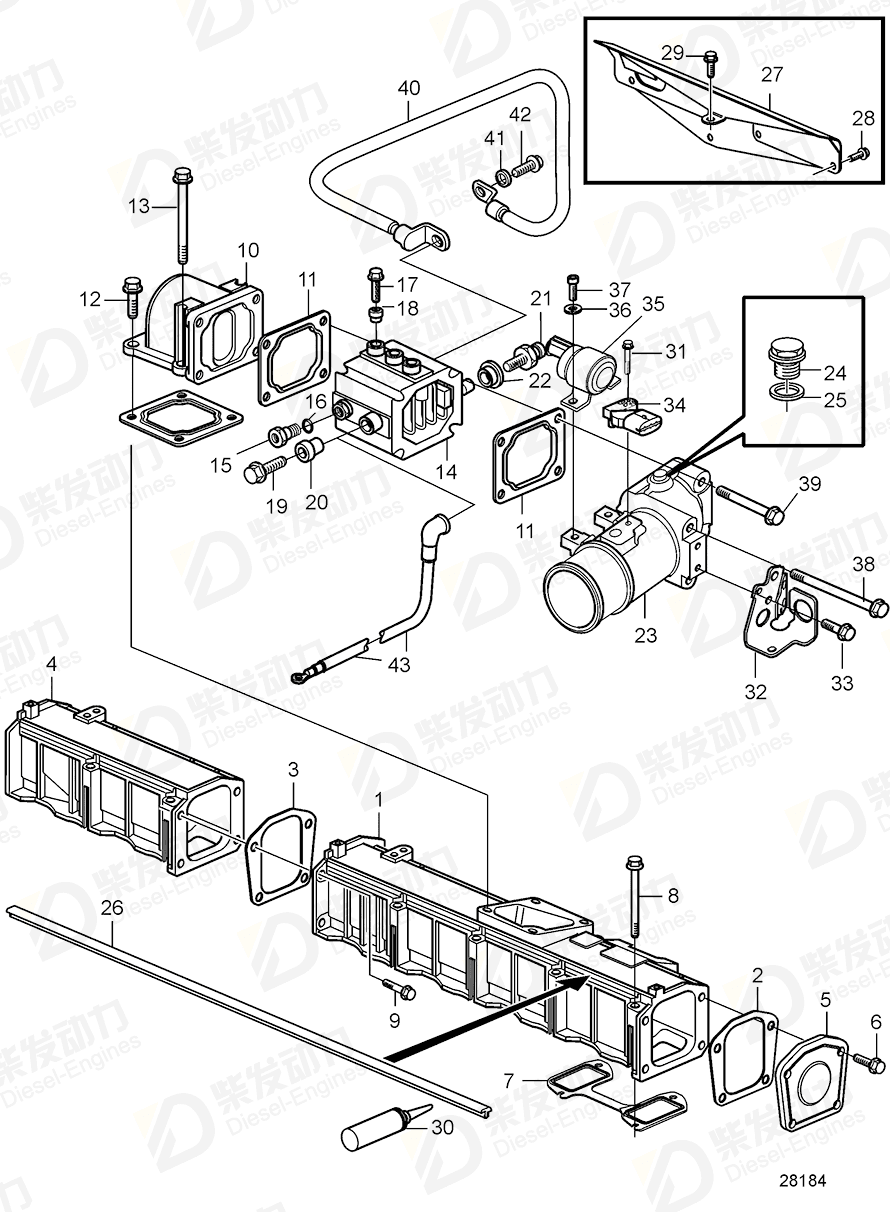

| No. | Part Name | Part Number | Qty | Description |
| 1 | Charge air pipe | 21011717 | 1 | |
| 2 | Gasket | 20405613 | 1 | |
| 3 | Gasket | 21333188 | 1 | |
| 4 | Inlet manifold | 20792899 | 1 | SN-11761352, Replaced by 22444131 |
| 4 | Charge air pipe | 22444131 | 1 | SN11761353- |
| 5 | Cover | 20405614 | 1 | |
| 6 | Flange screw | 984733 | 4 | |
| 7 | Gasket | 20591706 | 3 | |
| 8 | Flange screw | 20412601 | 12 | |
| 9 | Flange screw | 20459228 | 4 | |
| 10 | Elbow | 20459938 | 1 | |
| 11 | Gasket | 20531832 | 2 | |
| 12 | Flange screw | 946671 | 4 | |
| 13 | Flange screw | 996778 | 2 | |
| 14 | Flange | 20585825 | 1 | |
| 14 | Heater, 24V | 20758403 | 1 | |
| 15 | Connector, -pole | 21638698 | 1 | |
| 16 | O-ring | 20498524 | 1 | |
| 17 | Flange screw | 20550356 | 5 | |
| 18 | Insulator | 20550336 | 1 | |
| 19 | Flange screw | 20512299 | 2 | |
| 20 | Insulator | 20758437 | 2 | 24V, (20550368) |
| 21 | Connector, +pole | 20726089 | 1 | (20726089) |
| 22 | Insulator | 20521558 | 1 | |
| 23 | Charge air pipe | 22328869 | 1 | |
| 24 | Plug | 888774 | 1 | (20405556) |
| 25 | Gasket | 21033247 | 1 | |
| 26 | Sealing strip | 20996748 | 1 | |
| 27 | Heat shield | 20856724 | 1 | |
| 28 | Flange screw | 984733 | 4 | |
| 29 | Flange screw | 20405898 | 1 | |
| 30 | Sealant | 1161231 | 1 | 304ml |
| 31 | Hexagon screw | 955271 | 1 | |
| 33 | Flange screw | 946440 | 2 | |
| 34 | Pressure sensor, charge pressure/tempera ture | 21385453 | 1 | |
| 35 | Relay | 21311705 | 1 | |
| 36 | Washer | 20768671 | 2 | |
| 37 | Flange screw | 967949 | 2 | |
| 37 | Flange screw | 994442 | 2 | |
| 37 | Hex. socket screw | 996810 | 2 | Replaced by 20405729 |
| 37 | Hexagon screw | 20405729 | 2 | |
| 38 | Flange screw | 22329289 | 2 | |
| 39 | Flange screw | 20911617 | 2 | |
| 40 | Cable | 21889019 | 1 | |
| 41 | Washer | 20460127 | 1 | |
| 42 | Flange screw | 60110707 | 1 | |
| 43 | Cable | 21888999 | 1 | Relay-Alternator |
| Item | Part Name | Part No. |
| 35 | Relay 21311705 | 21311705 |
| Details | |
| Engine model | TAD550GE, TAD551GE TAD560VE, TAD561VE TAD750GE, TAD751GE TAD752GE, TAD753GE, TAD754GE TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE |
| Application | Bracket for wiring harness with ECU Bracket for wiring harness with mounted ECU Inlet Manifold Relay for Starter Element |
