Release bearing 329309

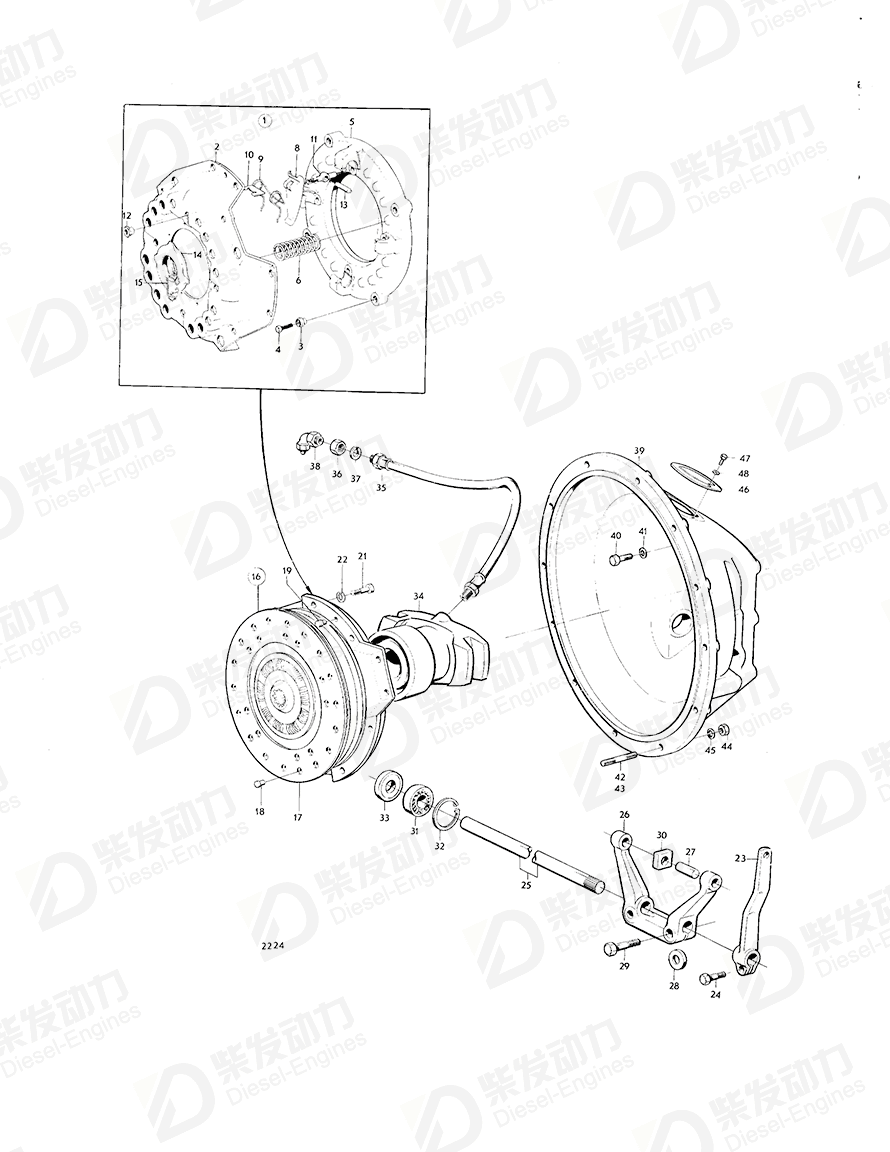

| No. | Part Name | Part Number | Qty | Description |
| 3 | Ferrule | 325056 | 4 | |
| 4 | Screw | 955657 | 4 | |
| 5 | Pressure plate | 325050 | 1 | |
| 6 | Spring | 306037 | 16 | |
| 8 | Lever | 329331 | 4 | |
| 9 | Spring | 325053 | 4 | |
| 10 | Strut | 80536 | 4 | |
| 11 | Bolt | 348332 | 4 | |
| 14 | Thrust washer | 335085 | 1 | |
| 16 | Clutch lining kit | 275914 | 1 | |
| 18 | Semi-tubular rivet | 952493 | 42 | |
| 19 | Locating pin | 941867 | 1 | |
| 19 | Locating pin | 941868 | 1 | |
| 21 | Hexagon screw | 940114 | 8 | |
| 22 | Spring washer | 942336 | 8 | |
| 23 | Lever | 954867 | 1 | |
| 24 | Hexagon screw | 941795 | 1 | |
| 25 | Release shaft | 327923 | 1 | |
| 26 | Release fork | 327932 | 1 | |
| 28 | Washer | 31337 | 1 | |
| 29 | Hexagon screw | 955562 | 2 | L=38mm |
| 31 | Ball bearing | 181409 | 2 | |
| 32 | Retaining ring | 914526 | 2 | |
| 33 | Sealing ring | 191875 | 4 | |
| 34 | Release bearing | 329309 | 1 | |
| 35 | Lubricating hose | 353058 | 1 | |
| 36 | Hexagon nut | 955793 | 1 | |
| 37 | Spring washer | 941912 | 1 | |
| 38 | Lubricator | 914134 | 1 | |
| 40 | Hexagon screw | 955340 | 6 | |
| 41 | Spring washer | 191124 | 6 | |
| 42 | Stud | 953486 | 8 | |
| 43 | Stud | 953488 | 4 | |
| 44 | Hexagon nut | 955827 | 12 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 45 | Spring washer | 942336 | 12 | |
| 46 | Cover | 303055 | 1 | |
| 47 | Hexagon screw | 940113 | 2 | |
| 48 | Spring washer | 941907 | 2 |
| Item | Part Name | Part No. |
| 34 | Release bearing 329309 | 329309 |
| Details | |
| Engine model | D42A D70B TD70B |
| Application | FRICTION CLUTCH AND INSTALLATION COMPONENTS |
