Repair kit 275946

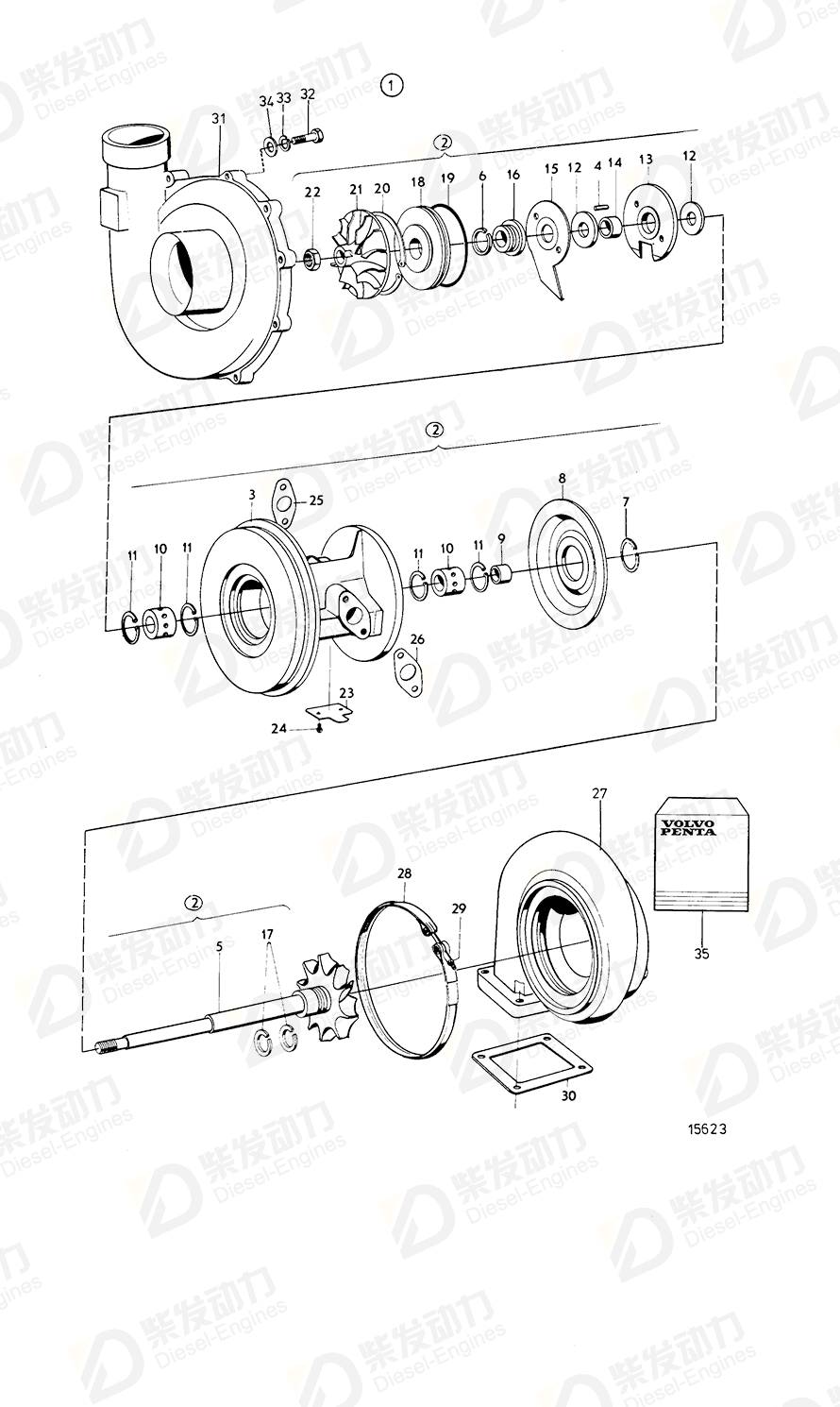

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802044 | 1 | (847827) |
| 2 | Rotor | 1695712 | 1 | |
| 5 | Turbine | 1695431 | 1 | |
| 6 | Piston ring | 467555 | 1 | |
| 7 | Lock ring | 422360 | 1 | |
| 11 | Lock ring | 417727 | 4 | |
| 12 | Thrust ring | 467026 | 2 | |
| 14 | Spacer sleeve | 422660 | 1 | |
| 15 | Splash plate | 422662 | 1 | |
| 16 | Ring retainer | 467556 | 1 | |
| 17 | Piston ring | 411794 | 2 | |
| 19 | O-ring | 465027 | 1 | |
| 20 | Lock ring | 420467 | 1 | |
| 21 | Compressor wheel | 848292 | 1 | |
| 22 | Nut | 1518784 | 1 | (422669) |
| 25 | Plane gasket | 420641 | 1 | |
| 26 | Gasket | 1543360 | 1 | |
| 28 | Clamp | 422667 | 1 | |
| 29 | Hexagon nut | 1695714 | 1 | (420473) |
| 30 | Gasket | 470939 | 1 | Included in gasket kit for connecting of turbocharger. |
| 32 | Screw | 420470 | 10 | |
| 33 | Spring washer | 411809 | 10 | |
| 34 | Washer | 1695715 | 5 | |
| 35 | Repair kit | 275946 | 1 |
| Item | Part Name | Part No. |
| 35 | Repair kit 275946 | 275946 |
| Details | |
| Engine model | TAD121CHC TD120HP-86 TD121CHC TD121CRC TD121G TD121G-87 TD121GG, TD121GGP TD121GG-86 TD121GP-87 TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 |
| Application | Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C Repair Kits: D Turbo Turbo: 847827 Turbo: 848427 Turbocharger, Components |
| Specification | |
| Descriptions | For 847827, See group 10A Turbo 847827 Turbo 848427 |
