Repair kit 843424

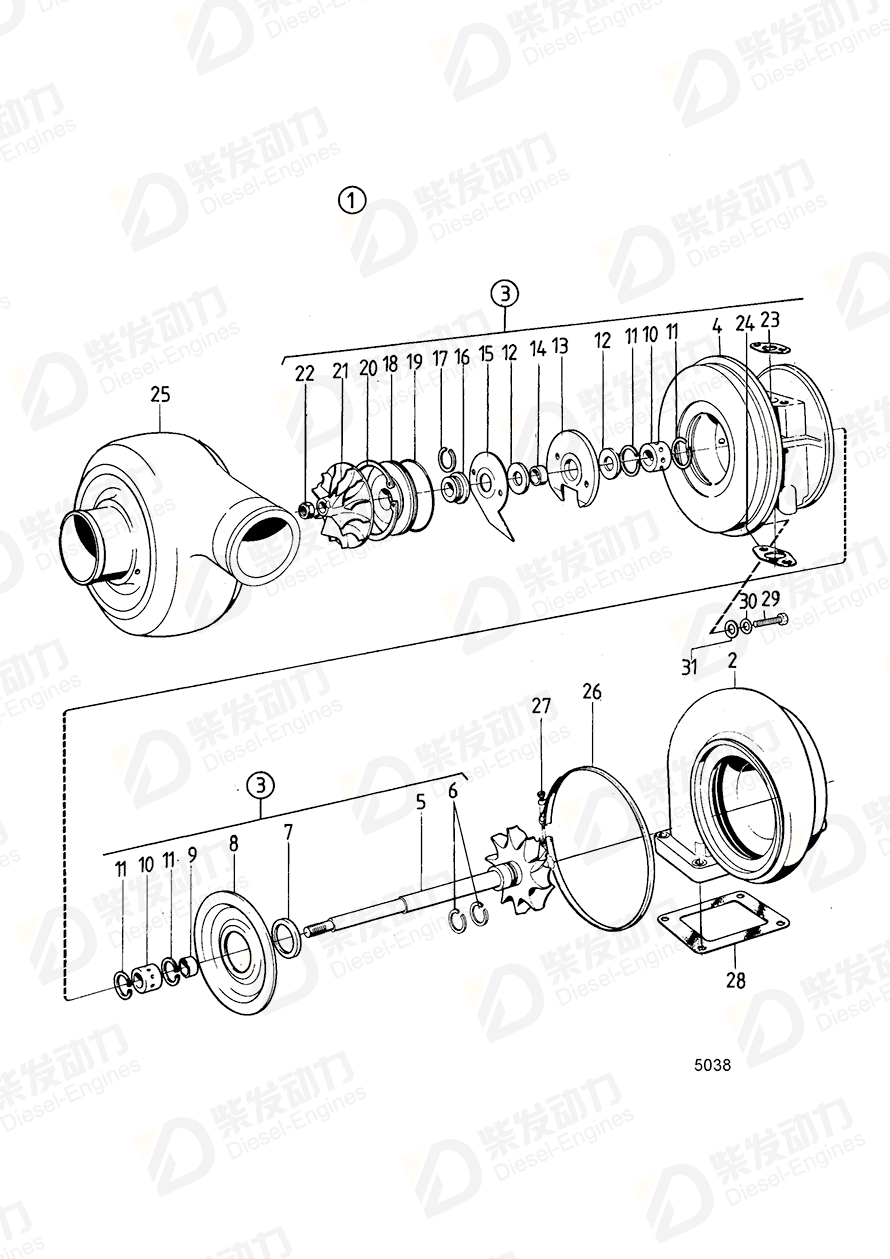

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 843595 | 1 | Spec 867390 |
| 2 | Turbine housing | 1518691 | 1 | |
| 3 | Rotor | 843420 | 1 | |
| 5 | Turbine rotor | 467554 | 1 | |
| 7 | Lock ring | 422360 | 1 | |
| 11 | Lock ring | 417727 | 4 | |
| 12 | Thrust ring | 467026 | 2 | |
| 14 | Spacer sleeve | 422660 | 1 | |
| 15 | Splash plate | 422662 | 1 | |
| 16 | Ring retainer | 467556 | 1 | |
| 18 | Insert | 467557 | 1 | |
| 20 | Lock ring | 420467 | 1 | |
| 21 | Compressor wheel | 467558 | 1 | |
| 22 | Nut | 1518784 | 1 | (422669) |
| 23 | Gasket | 417378 | 1 | |
| 24 | Gasket | 417381 | 1 | |
| 25 | Compressor housing | 1518692 | 1 | |
| 26 | Clamp | 422667 | 1 | |
| 28 | Gasket | 417382 | 1 | |
| 29 | Hexagon screw | 955524 | 10 | Used on crankshaft 829999. |
| 30 | Spring washer | 941907 | 10 | |
| 31 | Repair kit | 843424 | 1 | |
| 31 | Washer | 955894 | 10 |
| Item | Part Name | Part No. |
| 31 | Repair kit 843424 | 843424 |
| Details | |
| Engine model | TAD120AHC TAD120BHC TD120A TD120C TD120GG |
| Application | REPAIR KIT: B Repair Kits, Repair Kits,: B Repair Kits: C Repair Kits: D Turbo Turbo: 842427 Turbo: 844452 Turbo: 844549 Turbo: 845713 |
| Specification | |
| Descriptions | See group 10A |
