Retaining ring 914526

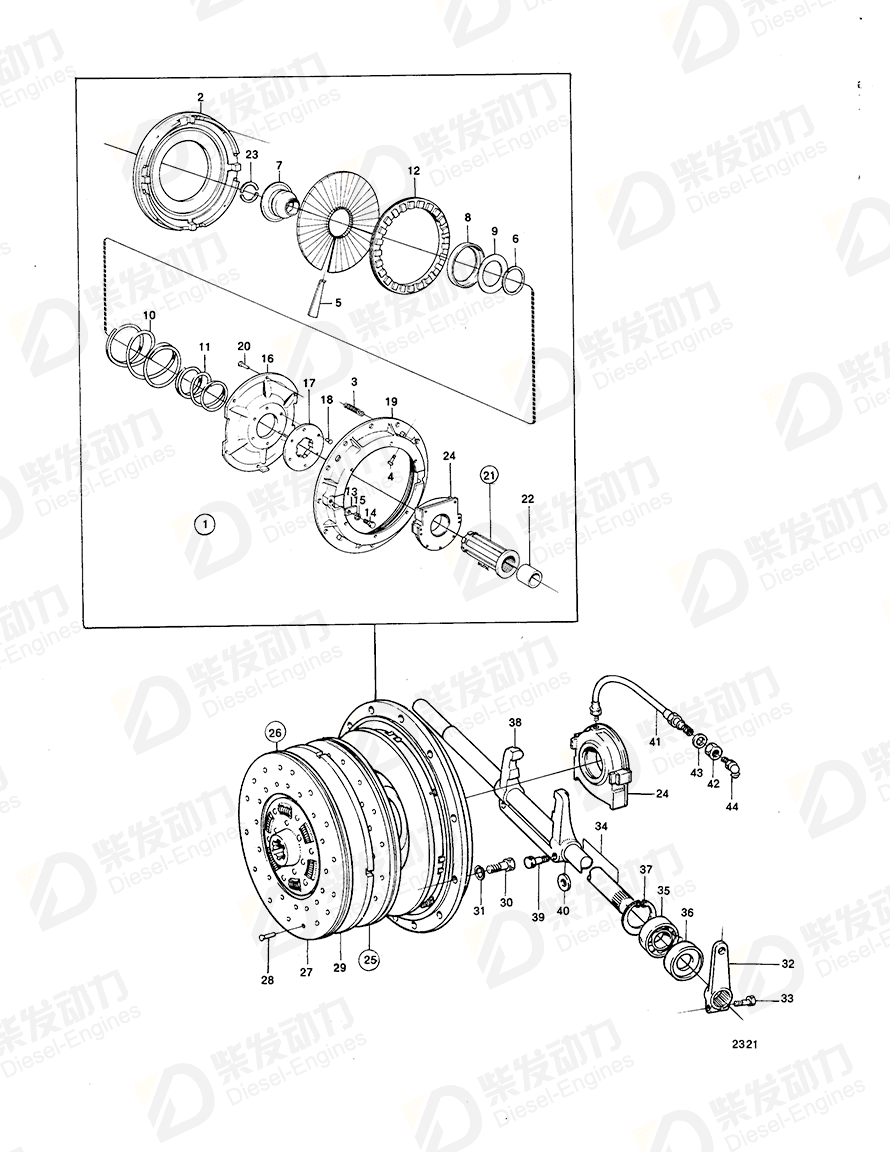

| No. | Part Name | Part Number | Qty | Description |
| 1 | Clutch | 331190 | 1 | D70B spec.867132 alt. klassad |
| 3 | Spring | 31314 | 4 | |
| 4 | Bolt | 14546 | 4 | L=16mm |
| 4 | Bolt | 943047 | 4 | L=20mm |
| 5 | Lever | 31309 | 35 | |
| 6 | Lock ring | 31313 | 1 | |
| 8 | Washer | 31311 | 1 | |
| 9 | Washer | 31312 | 1 | |
| 10 | Spring | 31307 | 1 | |
| 12 | Adjusting nut | 31320 | 1 | |
| 13 | Lock plate | 337851 | 1 | |
| 14 | Hexagon screw | 940114 | 1 | |
| 15 | Spring washer | 942336 | 1 | |
| 25 | Disc | 331191 | 1 | |
| 26 | Disc | 331779 | 1 | |
| 28 | Rivet | 17451 | 60 | |
| 29 | Plate | 331778 | 1 | |
| 30 | Hexagon screw | 940115 | 12 | |
| 31 | Spring washer | 942336 | 12 | |
| 32 | Lever | 954707 | 1 | |
| 33 | Hexagon screw | 941795 | 1 | |
| 34 | Release fork | 349979 | 1 | |
| 35 | Ball bearing | 181409 | 2 | |
| 36 | Sealing ring | 191875 | 4 | |
| 37 | Retaining ring | 914526 | 2 | |
| 38 | Release fork | 346970 | 1 | |
| 39 | Hexagon screw | 955561 | 2 | |
| 40 | Washer | 31337 | 1 | |
| 41 | Lubricating hose | 353059 | 1 | |
| 42 | O-ring | 955973 | 1 | |
| 43 | Spring washer | 941912 | 1 | |
| 44 | Lubricator | 914134 | 1 |
| Item | Part Name | Part No. |
| 37 | Retaining ring 914526 | 914526 |
| Details | |
| Engine model | D100A, D100B D100A, TD100A D100B, TD100A D42A D70B TAD741GE TD100G, TD100G-85, TID100K TD30A TD31ACE TD40A TD70B TID100K-87 TWD740GE, TAD740GE TWD740VE |
| Application | Crank Mechanism Crank Mechanism: A Crank Mechanism: B Friction Clutch and Installation Components Friction Clutch and Installation Components Truck Repair Kits: C Timing Gear Casing and Gears |
