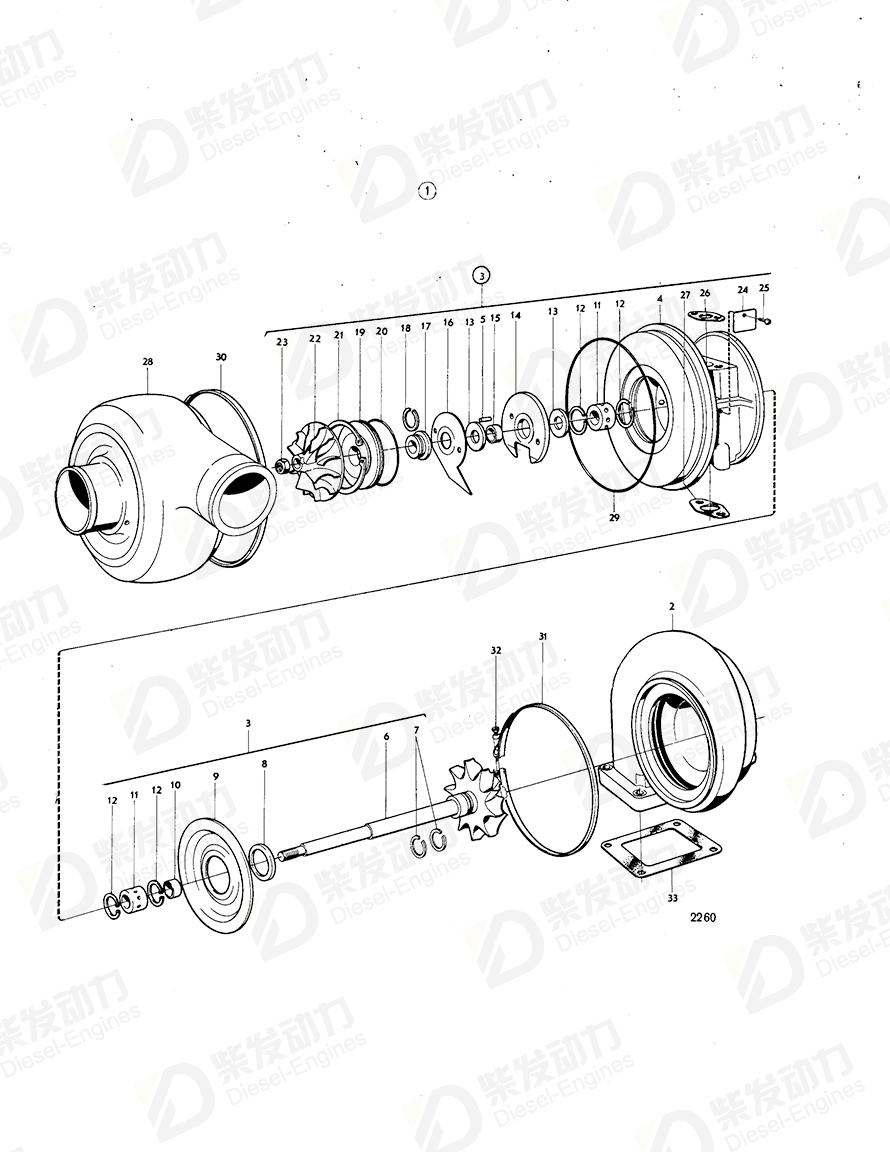

Rotor 423520
| No. |
Part Name |
Part Number |
Qty |
Description |
| 3 |
Rotor |
423520 |
1 |
|
| 6 |
Turbine rotor |
468078 |
1 |
|
| 8 |
Lock ring |
422360 |
1 |
|
| 12 |
Lock ring |
417727 |
4 |
|
| 13 |
Thrust ring |
467026 |
2 |
|
| 15 |
Spacer sleeve |
422660 |
1 |
|
| 16 |
Splash plate |
422662 |
1 |
|
| 17 |
Ring retainer |
422661 |
1 |
|
| 19 |
Cover |
420466 |
1 |
|
| 21 |
Lock ring |
420467 |
1 |
|
| 22 |
Compressor wheel |
423521 |
1 |
|
| 23 |
Nut |
1518784 |
1 |
(422669) |
| 26 |
Gasket |
417378 |
1 |
|
| 27 |
Gasket |
417381 |
1 |
|
| 29 |
Rubber ring |
422668 |
1 |
|
| 30 |
Clamp |
422666 |
1 |
|
| 31 |
Clamp |
422667 |
1 |
|
| 32 |
Nut |
420473 |
2 |
|
| 33 |
Repair kit |
273179 |
1 |
|
| 33 |
Gasket |
417382 |
1 |
|
| Item |
Part Name |
Part No. |
| 3 |
Rotor 423520 |
423520 |
| Details |
| Application |
Turbo |
Tags:
Rotor,
Volvo Penta,
423520
