Rotor 847704

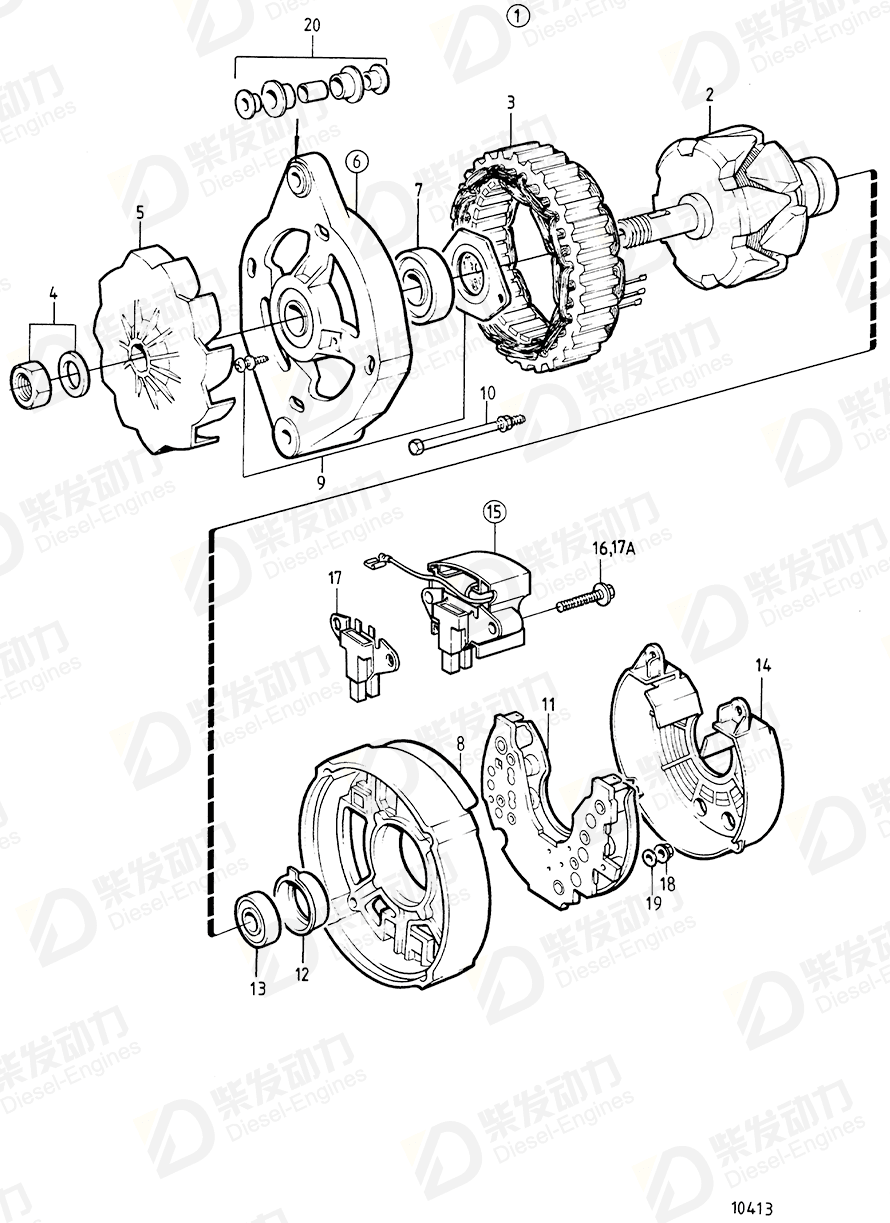

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 849563 | 1 | For 24V electric system., Replaced by 863955., SN-1101019500/XXXXXX |
| 2 | Rotor | 847704 | 1 | |
| 3 | Stator | 864346 | 1 | |
| 4 | Nut set | 847706 | 1 | |
| 7 | Ball bearing | 847708 | 1 | |
| 9 | Bearing carrier | 847709 | 1 | |
| 10 | Screw kit | 847710 | 1 | |
| 11 | Diode bridge | 1698689 | 1 | |
| 12 | Bearing race | 840629 | 1 | |
| 13 | Ball bearing | 840630 | 1 | |
| 14 | Protecting casing | 847712 | 1 | |
| 15 | Regulator kit, with brush holder | 872368 | 1 | |
| 16 | Screw | 859312 | 4 | |
| 17 | Brush retainer | 840632 | 1 | |
| 18 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 18 | Hexagon nut | 955779 | 1 | |
| 18 | Flange nut | 965483 | 1 | |
| 19 | Spring washer | 941904 | 1 | |
| 20 | Guide | 840634 | 1 | |
| 17A | Screw | 859312 | 2 |
| Item | Part Name | Part No. |
| 2 | Rotor 847704 | 847704 |
| Details | |
| Application | Alternator Alternator 24V Alternator 28V 55A, Components Alternator 28V 60A, Components: 863280 Alternator&24V: 845940 Alternator&24V: 849563 Alternator: 845940 Alternator: 849563 |
