Rubber fitting 842281

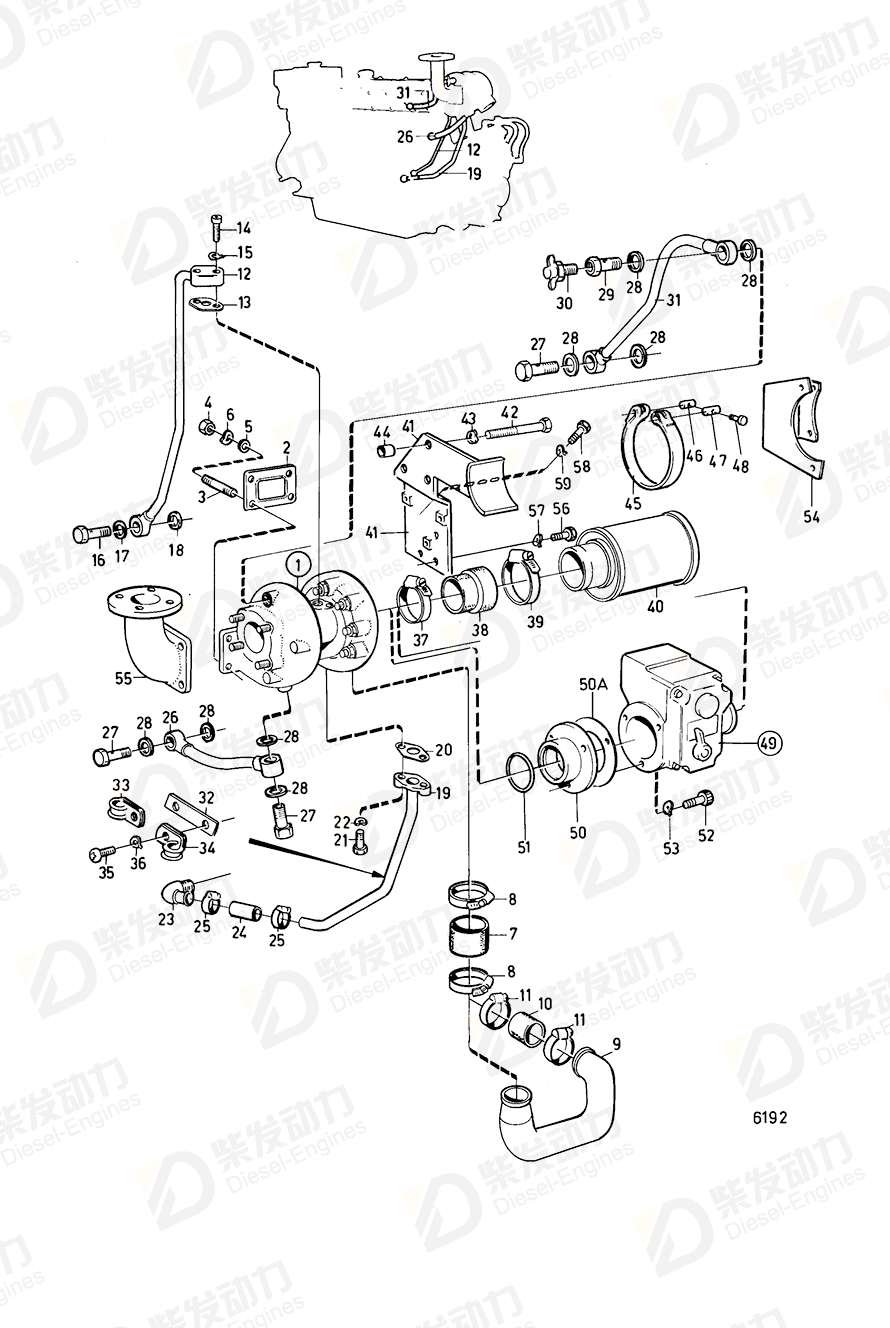

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 845677 | 1 | Alt class |
| 1 | Turbocharger | 3802012 | 1 | |
| 2 | Gasket | 421324 | 1 | |
| 3 | Stud | 924079 | 4 | |
| 4 | Hexagon nut | 940183 | 4 | |
| 5 | Washer | 955895 | 4 | |
| 6 | Spring washer | 942336 | 4 | |
| 7 | Hose | 466327 | 1 | |
| 8 | Hose clamp | 943479 | 2 | |
| 9 | Connecting pipe | 837875 | 1 | |
| 10 | Hose | 946264 | 1 | |
| 11 | Hose clamp | 943481 | 2 | (951798) |
| 12 | Feed line | 837415 | 1 | |
| 13 | Plane gasket | 420641 | 1 | |
| 14 | Hexagon screw | 940142 | 1 | ÅKERMAN. |
| 14 | Hexagon screw | 955295 | 1 | |
| 15 | Spring washer | 941907 | 2 | |
| 16 | Hollow screw | 942007 | 1 | (954394) |
| 17 | Gasket | 957178 | 1 | |
| 18 | Gasket | 957181 | 1 | |
| 19 | Oil return pipe | 843388 | 1 | |
| 20 | Gasket | 842986 | 1 | |
| 21 | Hexagon screw | 955297 | 2 | |
| 22 | Spring washer | 941907 | 2 | |
| 23 | Elbow nipple | 468629 | 1 | TAMD70C,AQD70C. |
| 24 | Hose | 466328 | 1 | |
| 25 | Hose clamp | 943473 | 2 | |
| 26 | Hose | 843976 | 1 | |
| 27 | Hollow screw | 191157 | 3 | |
| 28 | Gasket | 957185 | 8 | |
| 29 | Hollow screw | 191158 | 1 | |
| 30 | Shut-off cock | 82745 | 1 | |
| 31 | Coolant pipe | 843977 | 1 | |
| 32 | Bracket | 836262 | 1 | |
| 33 | Clamp | 952625 | 1 | |
| 34 | Clamp | 952631 | 1 | |
| 35 | Cross recessed screw | 950044 | 2 | |
| 36 | Spring washer | 941906 | 2 | |
| 37 | Hose clamp | 943481 | 1 | (951798) |
| 37 | Hose clamp | 943483 | 1 | (951800) |
| 38 | Rubber fitting | 842281 | 1 | |
| 38 | Fitting | 843409 | 1 | |
| 39 | Hose clamp | 943484 | 1 | (951801) |
| 40 | Air filter | 842280 | 1 | |
| 41 | Bracket | 845669 | 1 | |
| 42 | Hexagon screw | 949886 | 3 | (191337) |
| 43 | Spring washer | 941907 | 3 | |
| 44 | Spacer sleeve | 826652 | 3 | |
| 45 | Tensioning band | 821028 | 1 | |
| 46 | Pin | 31405 | 1 | |
| 47 | Clevis pin, threaded | 31404 | 1 | |
| 48 | Hexagon screw | 31406 | 1 | |
| 50 | Ring | 845662 | 1 | When emergency stop is mounted |
| 51 | O-ring | 925093 | 2 | |
| 52 | Hexagon screw | 940135 | 3 | |
| 52 | Hex. socket screw | 959223 | 1 | L = 30 MM |
| 52 | Hex. socket screw | 959224 | 1 | When emergency stop is mounted., L=35mm |
| 52 | Hex. socket screw | 959233 | 1 | When emergency stop is mounted., L=80mm |
| 53 | Spring washer | 941907 | 3 | |
| 54 | Bracket | 845671 | 1 | When emergency stop is mounted |
| 56 | Hexagon screw | 940135 | 3 | |
| 57 | Spring washer | 941907 | 3 | |
| 58 | Cross recessed screw | 956091 | 1 | |
| 59 | Spring washer | 941906 | 1 | |
| 50A | Gasket | 862590 | 1 | (843718) |
| Item | Part Name | Part No. |
| 38 | Rubber fitting 842281 | 842281 |
| Details | |
| Engine model | TD100CHC TD100CRC TD60A TD60B TD60D TD60D-83 TD70CHC, TD70CRC |
| Application | Air Filter and Installation Components: A Air Filter and Installation Components: B Induction and Exhaust Manifold: A Induction and Exhaust Manifold: B Turbo and Air Filter with Installation Components |
