Rubber fitting 847608

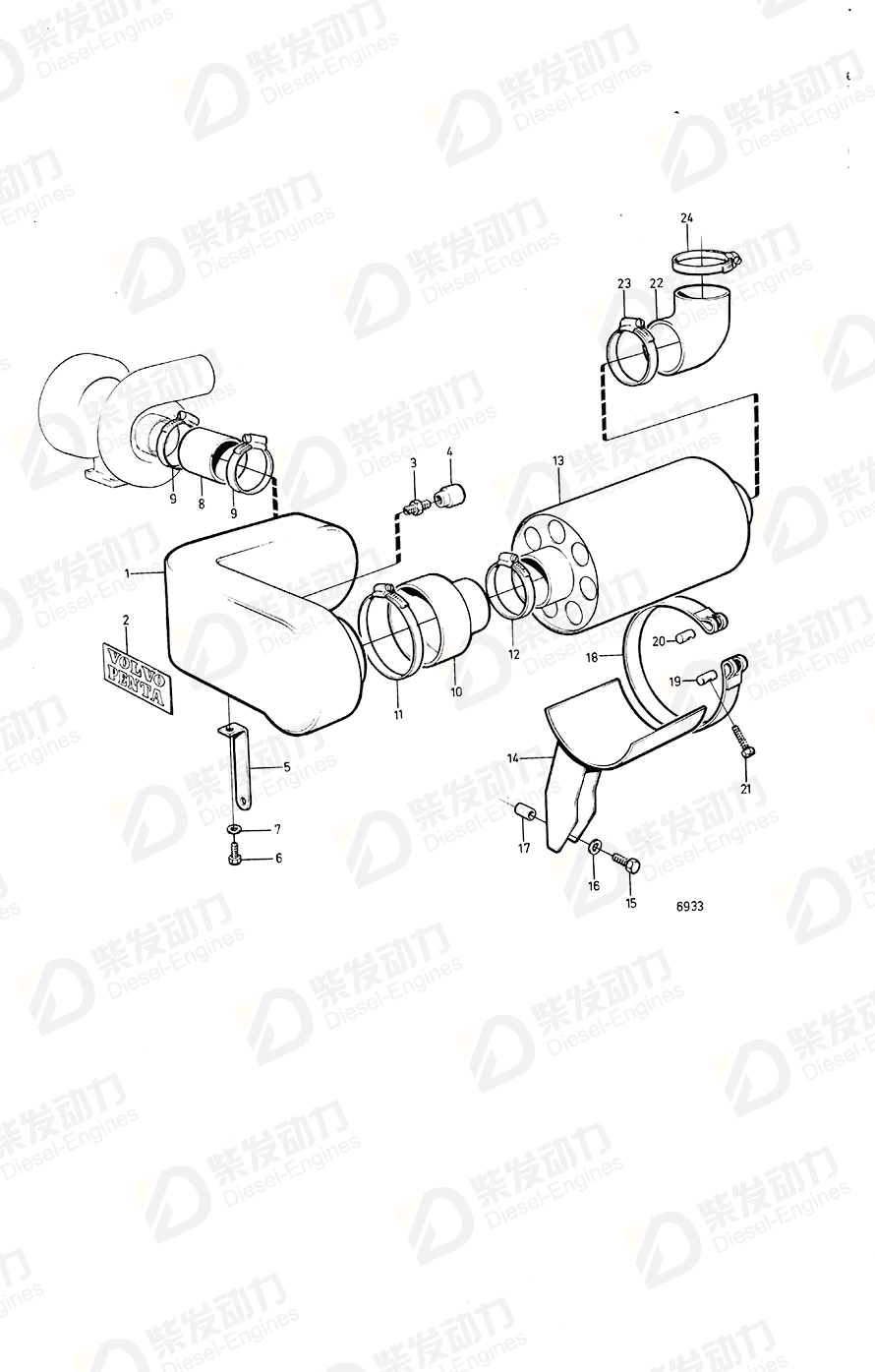

| No. | Part Name | Part Number | Qty | Description |
| 1 | Connecting pipe | 847226 | 1 | |
| 2 | Decal | 827259 | 1 | |
| 3 | Nipple | 191095 | 1 | |
| 4 | Pressure drop indica | 842037 | 1 | |
| 5 | Bracket | 847234 | 1 | |
| 6 | Hexagon screw | 955294 | 1 | |
| 7 | Spring washer | 941907 | 1 | |
| 8 | Rubber fitting | 847608 | 1 | |
| 9 | Hose clamp | 943480 | 1 | MO-XXXXX/98707., (951797) |
| 9 | Hose clamp | 943481 | 1 | (951798) |
| 10 | Rubber fitting | 836334 | 1 | For 804961., D=105mm-113mm |
| 11 | Hose clamp | 943484 | 1 | (951801) |
| 12 | Hose clamp | 943484 | 1 | (951801) |
| 13 | Air filter | 823701 | 1 | Late type |
| 14 | Bracket | 847096 | 1 | |
| 15 | Hexagon screw | 959793 | 2 | |
| 17 | Spacer sleeve | 826652 | 2 | |
| 18 | Tensioning band | 821028 | 1 | |
| 19 | Clevis pin, threaded | 31404 | 1 | |
| 20 | Pin | 31405 | 1 | |
| 21 | Hexagon screw | 31406 | 1 | |
| 22 | Bend | 837278 | 1 | D70B spec. 867221., Alt |
| 23 | Hose clamp | 944307 | 1 | D70B spec. 867221., Alt |
| 24 | Hose clamp | 961678 | 1 | D70B spec. 867221., Alt |
| Item | Part Name | Part No. |
| 8 | Rubber fitting 847608 | 847608 |
| Details | |
| Engine model | TD610G TD610M, TD630ME TD610V, TD630VE, TD640VE TD61AG TD61AP TID60DG TID61AG TWD610G TWD610P TWD610V, TWD630VE TWD630ME |
| Application | Air Filter Air Filter and Installation Components AIR FILTER AND INSTALLATION COMPONENTS: B |
| Specification | |
| Descriptions | For engine with turbo 848554., Early type |
