Rubber spacer 1661362

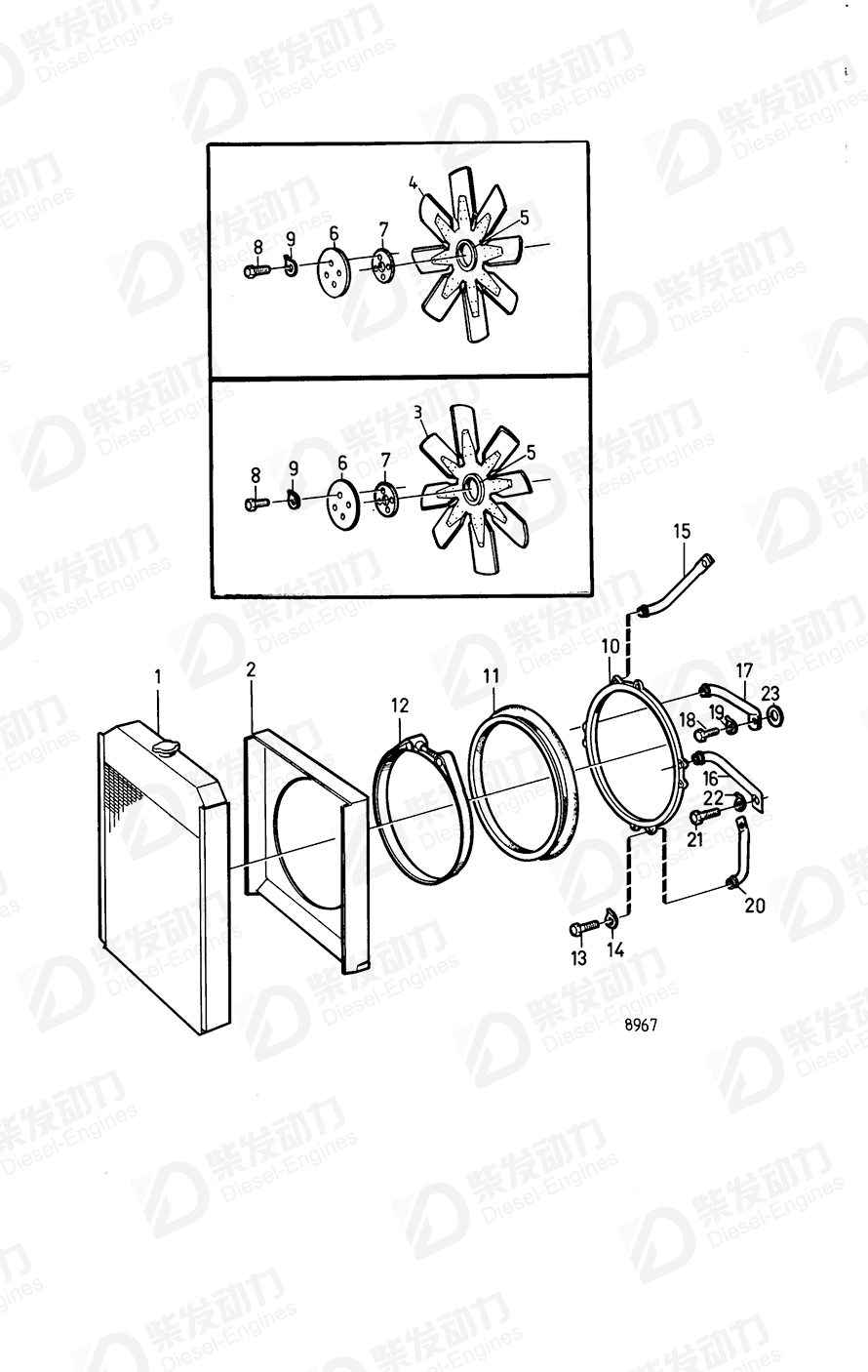

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 844488 | 1 | |
| 2 | Fan shroud | 844587 | 1 | |
| 3 | Fan, pushing type | 844799 | 1 | |
| 4 | Fan, suction type | 844800 | 1 | Repl by 858826 |
| 4 | Fan, suction type | 858826 | 1 | |
| 5 | Rubber spacer | 1661362 | 1 | For 858826 |
| 5 | Spacer | 1661363 | 1 | For 844800 |
| 6 | Washer | 465442 | 1 | |
| 7 | Spacer washer | 844978 | 1 | D70B MO43034/XXXXX-., Early prod |
| 8 | Hexagon screw | 955322 | 4 | |
| 9 | Spring washer | 941908 | 4 | |
| 10 | Fan ring | 4947513 | 1 | (787672) |
| 11 | Rubber seal | 1542662 | 1 | |
| 12 | Clamping ring | 1542663 | 1 | |
| 13 | Hexagon screw | 940199 | 4 | |
| 14 | Washer | 962658 | 4 | |
| 15 | Retainer | 844692 | 1 | |
| 16 | Retainer | 844691 | 1 | |
| 17 | Retainer | 844690 | 1 | |
| 18 | Hexagon screw | 955305 | 1 | |
| 19 | Spring washer | 941907 | 1 | |
| 20 | Anchorage | 844689 | 1 | |
| 21 | Hexagon screw | 955298 | 1 | L=50mm |
| 22 | Spring washer | 941907 | 1 | |
| 23 | Washer | 120001 | 1 |
| Item | Part Name | Part No. |
| 5 | Rubber spacer 1661362 | 1661362 |
| Details | |
| Engine model | TD30A TD40A |
| Application | Fan, Fan- and Belt Protection with Installation Components: A Fan,Fan- and Belt Protection with Installation Components |
| Specification | |
| Descriptions | For 858826 |
