Rubber washer 468947

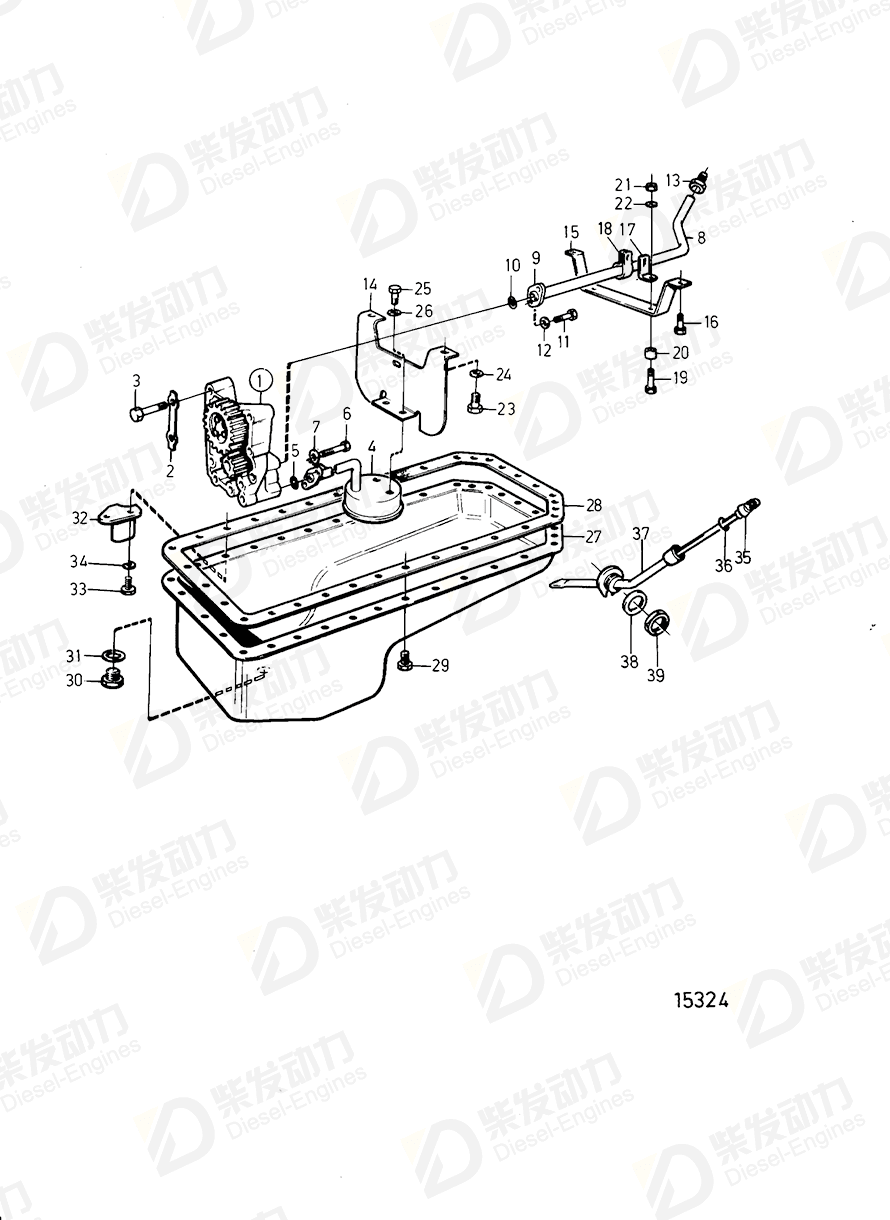

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 479319 | 1 | |
| 2 | Tab washer | 190529 | 2 | |
| 2 | Spring washer | 942336 | 4 | |
| 3 | Hexagon screw | 955538 | 4 | |
| 4 | Suction pipe | 824156 | 1 | |
| 5 | O-ring | 949658 | 1 | (925061) early type |
| 6 | Hexagon screw | 955530 | 2 | |
| 7 | Spring washer | 941907 | 2 | |
| 8 | Oil feed pipe | 422970 | 1 | SN2100291270- |
| 8 | Oil pressure pipe | 1545270 | 1 | Late type |
| 9 | Flange | 1545272 | 1 | Late type |
| 10 | Sealing ring | 1545271 | 1 | Late type |
| 11 | Hexagon screw | 955531 | 2 | Late type |
| 12 | Spring washer | 941907 | 2 | |
| 13 | Fitting | 466907 | 1 | |
| 13 | Fitting | 466908 | 1 | |
| 14 | Baffle plate | 1545381 | 1 | |
| 15 | Bracket | 1545011 | 1 | Late type |
| 16 | Flange screw | 942402 | 2 | |
| 17 | Bracket | 1545203 | 1 | Late type |
| 18 | Attaching clamp | 1545433 | 1 | |
| 19 | Hexagon screw | 940117 | 3 | Late type |
| 20 | Spacer sleeve | 1545269 | 3 | Late type |
| 21 | Hexagon nut | 955825 | 3 | Late type |
| 22 | Washer | 976943 | 3 | |
| 23 | Flange screw | 942402 | 2 | |
| 24 | Spring washer | 941907 | 2 | |
| 25 | Hexagon screw | 940113 | 2 | |
| 26 | Spring washer | 941907 | 2 | |
| 27 | Sump | 862014 | 1 | |
| 28 | Gasket | 479264 | 1 | |
| 29 | Flange screw | 942402 | 39 | |
| 30 | Magnetic plug | 949175 | 1 | |
| 31 | Gasket | 18813 | 1 | |
| 32 | Bracket, oil cooler | 467916 | 1 | |
| 33 | Hexagon screw | 955525 | 2 | |
| 34 | Spring washer | 941907 | 2 | |
| 35 | Oil dipstick | 862020 | 1 | |
| 36 | O-ring, bearing housing | 925054 | 1 | |
| 37 | Pipe retainer | 862016 | 1 | |
| 38 | Rubber washer | 468947 | 1 | |
| 39 | Hexagon nut | 468948 | 1 |
| Item | Part Name | Part No. |
| 38 | Rubber washer 468947 | 468947 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD1230G, TD1210G, TWD1210G, TWD1211G TAD1230P, TD121GP-87, TWD1210P, TWD1211P TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1231GE, TAD1232GE TAD1240GE TAD1240GE, TAD1241GE, TAD1242GE TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TAD1630G, TAD1630GE TAD1630P TAD1630P, TWD1630P TAD1630V TAD1630V, TWD1630V TAD1631G, TAD1631GE TAD540-42VE, TAD550-51VE, TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD570VE, TAD571VE, TAD572VE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE, TAD850-52VE, TAD840-43VE TAD870VE, TAD871VE, TAD872VE, TAD873VE TD100G-87 TD100GG-87 TD100HP-87 TD100HPB-87 TD1010G, TWD1010G TD121G-87, TD121GG-87, TD121GGP-87, TD121GPB-87 TD121G-87, TWD1230VE, TWD1231VE TD164KAE TD640VE TID100K-87 TID100KG-87 TID100KGP-87 TID100KP-87 TID100KPB-87 TID162AG, TID162AGP, TID162AP, TID162APB TWD1210V, TWD1211V, TAD1230V TWD1230ME TWD1240VE, TAD1241VE, TAD1242VE TWD1620G TWD1620G, TWD1630G, TAD1630G, TAD1630GE TWD1630G TWD1630P TWD1630V |
| Application | Lubricating System Lubricating System with 180° Turnable Oil Sump Lubricating System, Earlier Production Lubricating System, Later Production Lubricating System, Later Production: A Lubricating System, Later Production: B Lubricating System, SN-2012427926 Lubricating System, SN2012427927- Lubricating System, Standard Lubricating System, Standard: A Lubricating System, Standard: B Lubricating System, Standard: C Lubricating System, Standard: TD100GGP-87 Lubricating system, Turned Oil Pan 180° Lubricating System: A Lubricating System: B Oil Dipstick. Extended Repair Kits |
