Safety net 847499

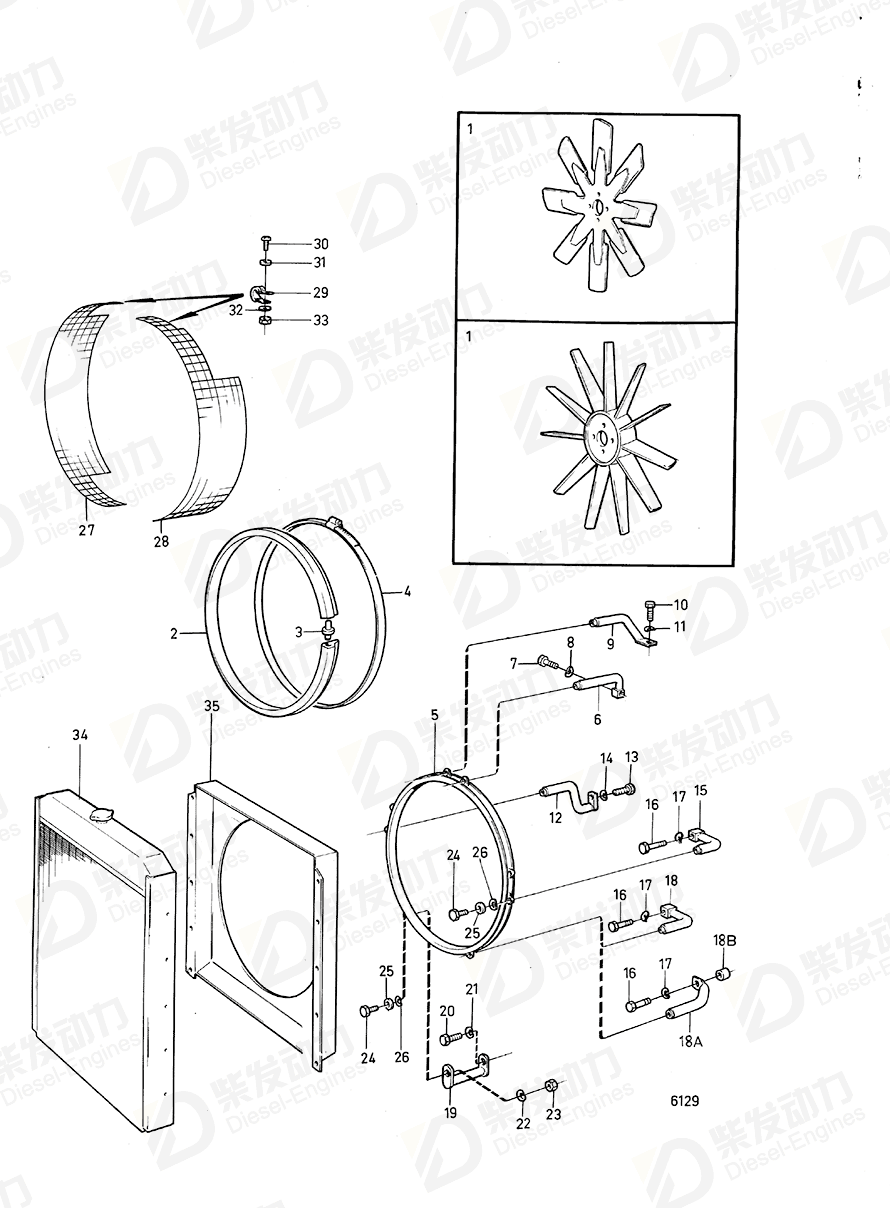

| No. | Part Name | Part Number | Qty | Description |
| 2 | Sealing strip | 837300 | 1 | |
| 3 | Connector | 475450 | 1 | |
| 4 | Hose clamp | 947467 | 1 | |
| 5 | Fan ring | 843694 | 1 | |
| 6 | Anchorage | 845190 | 1 | (843402) |
| 7 | Hexagon screw | 955541 | 1 | |
| 8 | Spring washer | 942336 | 1 | |
| 9 | Anchorage | 845410 | 1 | |
| 10 | Hexagon screw | 940162 | 1 | MO-XXXXX/105194 |
| 11 | Spring washer | 942336 | 1 | |
| 12 | Anchorage | 845531 | 1 | (843405) |
| 13 | Hexagon screw | 955320 | 1 | |
| 14 | Spring washer | 941908 | 1 | |
| 15 | Anchorage | 843404 | 1 | |
| 16 | Hexagon screw | 955531 | 2 | Late type |
| 17 | Spring washer | 941907 | 2 | |
| 18 | Anchorage | 846464 | 1 | (843702) early type |
| 19 | Anchorage | 845532 | 1 | |
| 20 | Hexagon screw | 940186 | 1 | |
| 21 | Spring washer | 941907 | 1 | |
| 22 | Spring washer | 942336 | 1 | |
| 23 | Hexagon nut | 955826 | 1 | |
| 24 | Hexagon screw | 955523 | 6 | |
| 25 | Washer | 960141 | 6 | |
| 26 | Spring washer | 941907 | 6 | |
| 27 | Safety net | 847500 | 1 | (843010) alt |
| 28 | Safety net | 847499 | 1 | (843011) alt |
| 29 | Clamp | 952632 | 12 | Late type |
| 30 | Cross recessed screw | 956095 | 12 | |
| 31 | Washer | 192404 | 12 | |
| 32 | Washer | 960139 | 12 | MO201374/XXXXX- |
| 33 | Lock nut | 963105 | 12 | |
| 18A | Anchorage | 846464 | 1 | (843702) early type |
| 18B | Spacer sleeve | 823497 | 1 | Late type |
| Item | Part Name | Part No. |
| 28 | Safety net 847499 | 847499 |
| Details | |
| Engine model | D70B D70CRC, TD70CRC TD100CRC TD100G TD100GG |
| Application | Fan, Fan- and Belt Protection with Installation Comp., Early Pr Fan, Fan- and Belt Protection with Installation Comp., Late Pro Fan, Fan-and Belt Guard with Installation Components Fan, Fan-and Belt Guard with Installation Components: A Fan, Fan-and Belt Guard with Installation Components: B Fan-and Belt Protection with Installation Comp, MOXXXXX/40848- Fan-and Belt Protection with Installation COMP.MOXXXXX/33072-: A |
| Specification | |
| Descriptions | (843011) (843011) alt Std |
