Screw 21087598

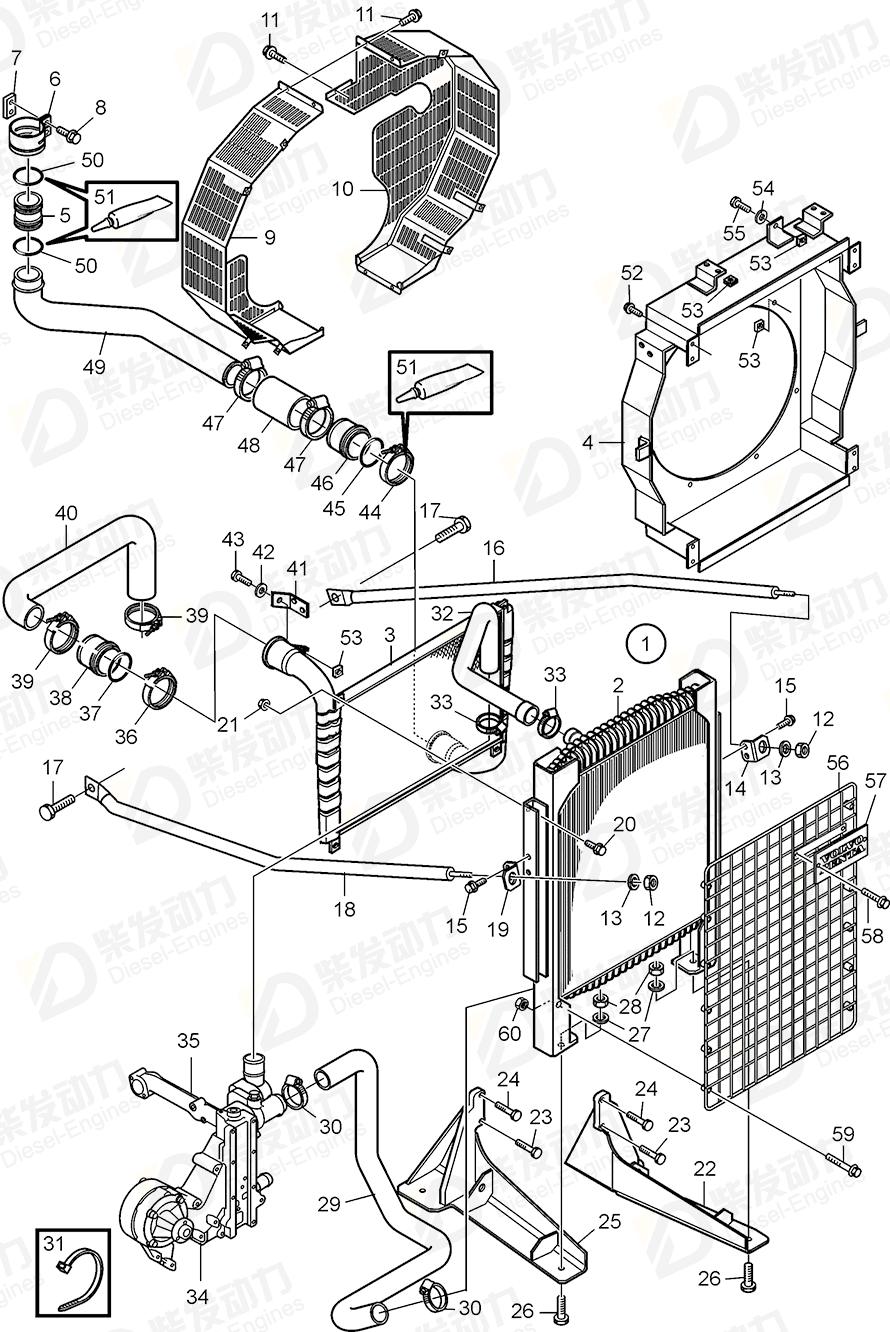

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cooling unit, complete | 21034601 | 1 | |
| 2 | Radiator | 21072151 | 1 | |
| 3 | Charge air cooler | 21072172 | 1 | |
| 4 | Fan shroud | 21072174 | 1 | |
| 5 | Adapter | 20405944 | 1 | |
| 6 | Clamp | 20848212 | 1 | (20412614) |
| 7 | Retainer | 21040679 | 1 | |
| 8 | Flange screw | 20405504 | 1 | |
| 9 | Grille | 21087577 | 1 | |
| 10 | Grille | 21087582 | 1 | |
| 11 | Flange screw | 984734 | 17 | |
| 12 | Hexagon nut | 971071 | 2 | |
| 13 | Washer | 20549890 | 4 | |
| 14 | Bracket | 21194123 | 1 | |
| 15 | Flange screw | 20405792 | 4 | |
| 16 | Stay | 21192356 | 1 | |
| 17 | Hexagon screw | 20459156 | 2 | |
| 18 | Stay | 21087593 | 1 | |
| 19 | Bracket | 21194167 | 1 | |
| 22 | Bracket | 21087594 | 1 | |
| 23 | Screw | 21087598 | 2 | |
| 24 | Screw | 20405653 | 2 | |
| 25 | Bracket | 21087595 | 1 | |
| 26 | Hexagon screw | 20460205 | 2 | |
| 27 | Washer | 20549890 | 2 | |
| 28 | Hexagon nut | 20405762 | 2 | |
| 29 | Coolant pipe | 21087698 | 1 | |
| 30 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 31 | Cable tie | 948211 | 4 | |
| 32 | Coolant pipe | 21087695 | 1 | |
| 33 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 36 | Clamp | 21033241 | 1 | |
| 37 | O-ring | 21033246 | 1 | |
| 38 | Nipple | 21087682 | 1 | |
| 39 | Clip | 21019685 | 2 | |
| 40 | Charge air pipe | 21087678 | 1 | |
| 44 | Clamp | 21033241 | 1 | |
| 45 | O-ring | 21033246 | 1 | |
| 46 | Nipple | 21087682 | 1 | |
| 47 | Clip | 21019685 | 2 | |
| 48 | Hose | 20531598 | 1 | |
| 49 | Charge air pipe | 21087694 | 1 | |
| 50 | O-ring | 20405535 | 1 | |
| 51 | Adjusting device | 21018254 | 1 | |
| 56 | Radiator protector | 21145393 | 1 | |
| 57 | Emblem | 846118 | 1 | |
| 58 | Screw | 941651 | 2 | |
| 59 | Flange screw | 948217 | 8 | |
| 60 | Flange nut | 990940 | 8 |
| Item | Part Name | Part No. |
| 23 | Screw 21087598 | 21087598 |
| Details | |
| Engine model | TAD732GE, TAD733GE |
| Application | Cooling System SN 10944314- Cooling System SN10410387-10590631 Cooling System SN10590632-10944313 |
