Screw 244741

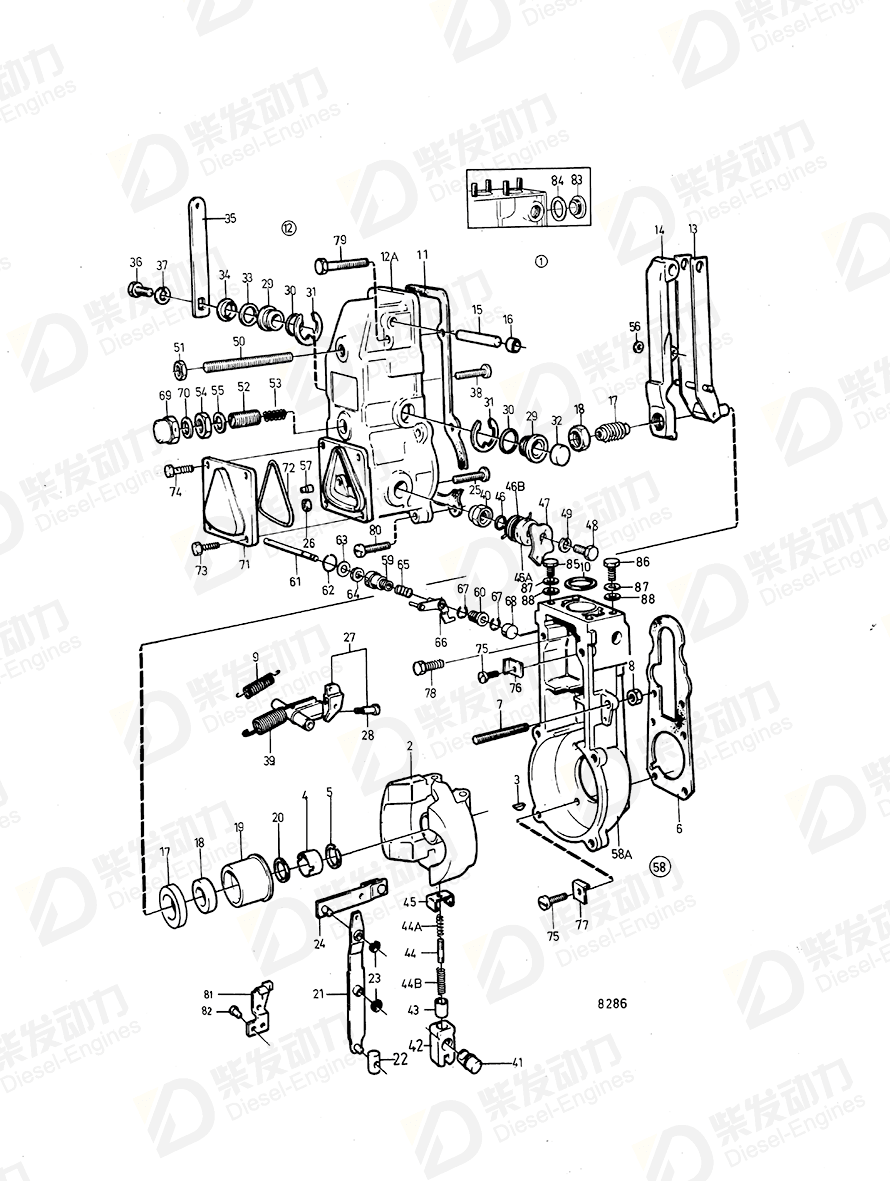

| No. | Part Name | Part Number | Qty | Description |
| 1 | Governor | 849485 | 1 | |
| 2 | Weight | 870919 | 1 | |
| 3 | Key | 25464 | 1 | |
| 4 | Round nut | 238994 | 1 | |
| 5 | Spring washer | 238995 | 1 | |
| 6 | Gasket | 6211236 | 1 | |
| 7 | Screw | 243843 | 1 | |
| 8 | Hexagon nut | 940197 | 1 | |
| 9 | Spring | 845432 | 1 | |
| 10 | O-ring | 244574 | 1 | |
| 11 | Gasket | 11992560 | 1 | |
| 13 | Arm | 848760 | 1 | |
| 14 | Tensioning arm | 848757 | 1 | |
| 15 | Shaft | 239017 | 1 | |
| 16 | Plug | 240374 | 2 | |
| 17 | Washer | 848762 | 1 | |
| 18 | Needle bearing | 848761 | 1 | |
| 19 | Bushing | 848763 | 1 | |
| 20 | Clamping ring | 239164 | 1 | |
| 21 | Lever | 240375 | 1 | |
| 22 | Cube | 240376 | 1 | |
| 23 | Lock washer | 848218 | 2 | |
| 24 | Link | 240377 | 1 | |
| 25 | Screw | 239021 | 1 | |
| 26 | Hexagon nut | 940197 | 1 | |
| 27 | Swivel arm | 870887 | 1 | |
| 28 | Screw | 239031 | 1 | |
| 29 | Bearing bushing | 240382 | 2 | |
| 30 | O-ring | 864475 | 2 | |
| 31 | E-circlip | 942796 | 2 | |
| 32 | Cover | 239037 | 1 | |
| 33 | O-ring | 864476 | 1 | |
| 34 | Adjusting washer | 233994 | 1 | TH=0.5mm |
| 34 | Washer | 238132 | 1 | |
| 35 | Intermediate lever | 849475 | 1 | |
| 36 | Hexagon screw | 955271 | 1 | |
| 37 | Spring washer | 941906 | 1 | |
| 38 | Adjusting screw | 848755 | 1 | |
| 39 | Spring | 243643 | 1 | |
| 40 | Bearing bushing | 239048 | 1 | |
| 41 | Shaft | 239049 | 1 | |
| 42 | Link arm end | 6213511 | 1 | |
| 43 | Sleeve | 239051 | 1 | |
| 44 | Spring | 240387 | 1 | |
| 45 | Brace | 870916 | 1 | |
| 46 | O-ring | 862814 | 1 | |
| 48 | Hexagon screw | 955271 | 1 | |
| 49 | Spring washer | 941906 | 1 | |
| 50 | Screw | 239042 | 1 | |
| 51 | Nut | 845426 | 1 | |
| 52 | Screw | 239044 | 1 | |
| 53 | Spring | 239045 | 1 | |
| 54 | Nut | 239046 | 1 | (870933) |
| 55 | Gasket | 18839 | 1 | |
| 56 | Adjusting washer | 845429 | 1 | TH=0,10mm |
| 56 | Adjusting washer | 845430 | 1 | TH=0.25mm |
| 56 | Adjusting washer | 845431 | 1 | TH=0.40mm |
| 57 | Nut | 848756 | 1 | |
| 59 | Bushing | 848749 | 1 | |
| 60 | Bushing | 244577 | 1 | |
| 61 | Shaft | 848750 | 1 | |
| 62 | Ring | 849490 | 1 | |
| 63 | Cover | 244581 | 1 | |
| 64 | Gasket | 1698176 | 1 | (244582) |
| 65 | Spring | 244583 | 1 | |
| 66 | Lever | 848751 | 1 | |
| 67 | E-circlip | 951669 | 2 | |
| 68 | Cover | 848753 | 1 | |
| 69 | Nut | 870637 | 1 | |
| 70 | Gasket | 18839 | 1 | |
| 71 | Cap | 848741 | 1 | |
| 72 | Sealing ring | 848740 | 1 | |
| 75 | Screw | 848219 | 6 | |
| 76 | Retainer | 845424 | 1 | |
| 77 | Retainer | 244552 | 4 | |
| 78 | Screw | 849478 | 2 | |
| 79 | Screw | 6637616 | 2 | |
| 80 | Screw | 241990 | 4 | |
| 81 | Attaching plate | 845427 | 1 | |
| 82 | Rivet | 907966 | 2 | |
| 83 | Screw | 244555 | 1 | |
| 84 | Washer | 238959 | 1 | |
| 85 | Screw | 244741 | 1 | |
| 86 | Screw | 241987 | 3 | |
| 87 | Spring washer | 941906 | 4 | |
| 88 | Washer | 955892 | 4 | |
| 12A | Regulator cover | 849474 | 1 | |
| 44A | Spring | 240386 | 1 | |
| 44B | Spring | 240388 | 1 | |
| 46A | Cover | 239059 | 1 | Replaced by 837364 |
| 46B | Spring | 239056 | 1 | Replaced by 837364. |
| 58A | Regulator housing | 848748 | 1 |
| Item | Part Name | Part No. |
| 85 | Screw 244741 | 244741 |
| Details | |
| Application | Governor: 849479 Governor: 849485 Smoke Eliminator |
