Screw 3523052

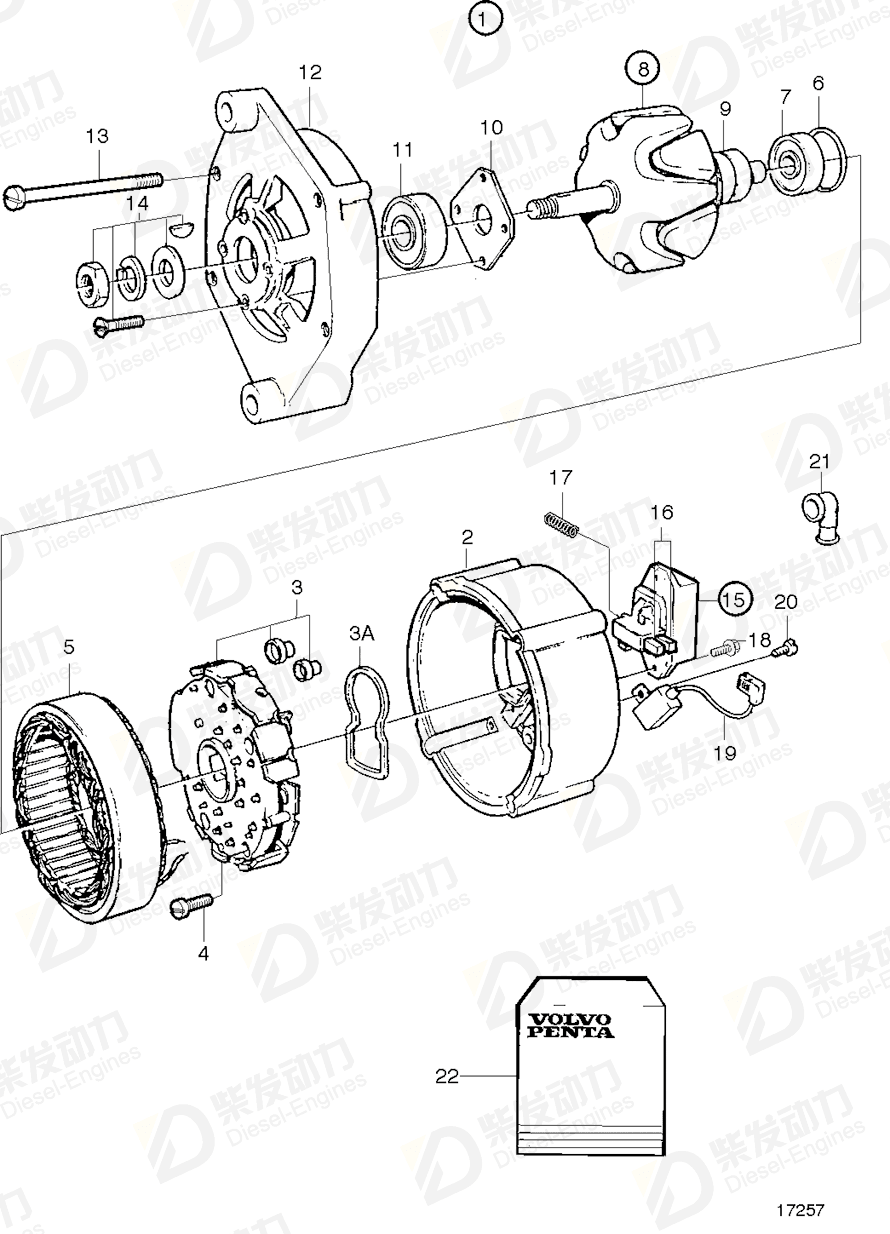

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1624089 | 1 | 28V 45A |
| 1 | Alternator, exch | 3803320 | 1 | 28V 45A |
| 3 | Rectifier | 244343 | 1 | |
| 5 | Stator | 244345 | 1 | |
| 6 | O-ring | 244331 | 1 | |
| 7 | Ball bearing | 244328 | 1 | |
| 8 | Rotor | 1698433 | 1 | (244340) |
| 9 | Slip ring | 844839 | 1 | |
| 11 | Ball bearing | 3090258 | 1 | |
| 12 | Drive bearing | 1697030 | 1 | |
| 13 | Screw | 3523052 | 4 | |
| 14 | Repair kit | 273503 | 1 | |
| 15 | Charge regulator | 1625880 | 1 | (1606935) |
| 16 | Carbon brush set | 1698435 | 1 | (1323485) |
| 19 | Capacitor | 244347 | 1 | (244357) |
| 21 | Protective cap | 829200 | 3 | 0,5-1,0mm², red |
| 22 | Repair kit | 273573 | 1 |
| Item | Part Name | Part No. |
| 13 | Screw 3523052 | 3523052 |
| Details | |
| Application | Alternator Alternator 14V 90A / 28V 45A, Components: 1578140 Alternator 28V 45A, Components Alternator: 1578140 |
| Specification | |
| Descriptions | (243956) |
