Screw 468847

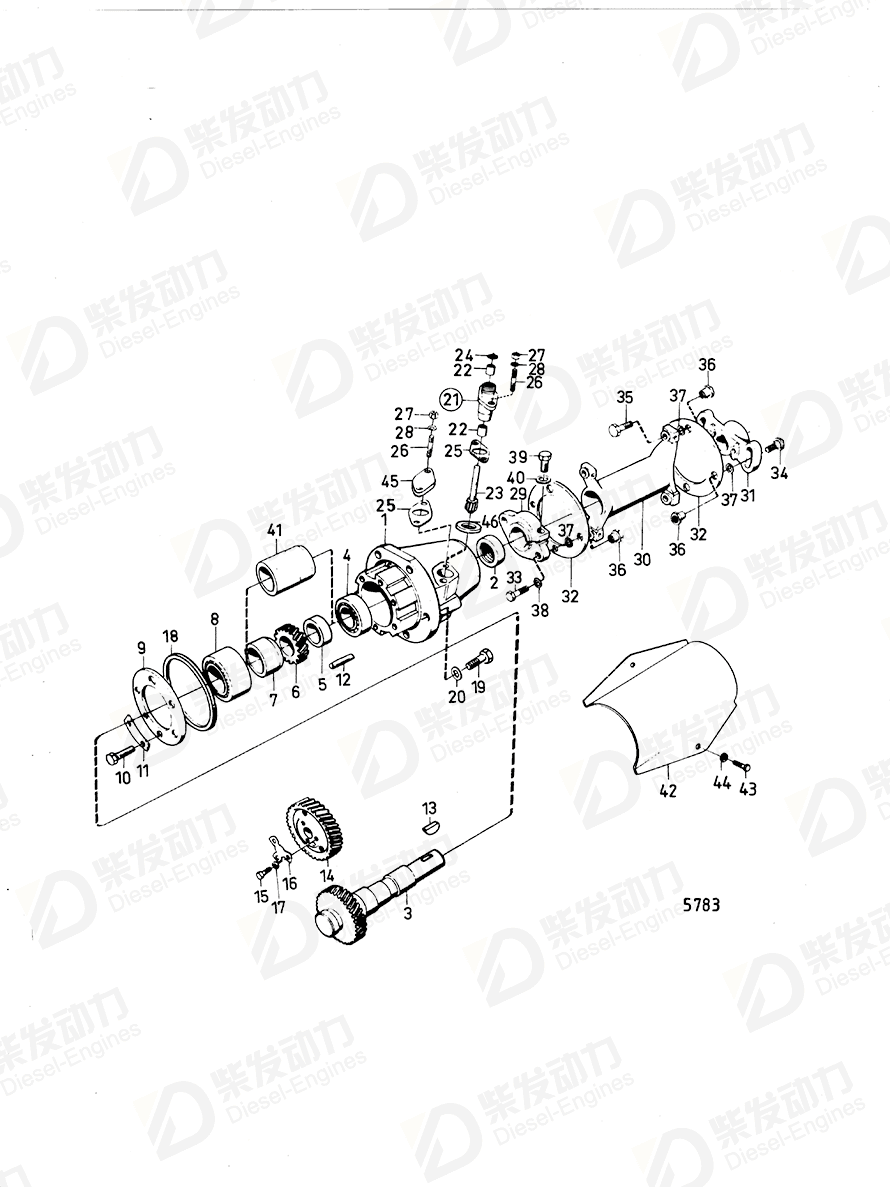

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bearing housing | 421074 | 1 | |
| 2 | Sealing ring | 941580 | 1 | |
| 3 | Shaft | 422073 | 1 | |
| 4 | Ball bearing | 11013 | 1 | |
| 8 | Ball bearing | 181577 | 1 | |
| 9 | Washer | 423074 | 1 | |
| 10 | Hexagon screw | 940100 | 6 | |
| 11 | Lock washer | 421415 | 3 | |
| 12 | Pin | 950586 | 1 | |
| 13 | Woodruff key | 422329 | 1 | |
| 14 | Gear | 423079 | 1 | |
| 15 | Hexagon screw | 102056 | 3 | |
| 18 | Sealing ring | 423123 | 1 | |
| 19 | Hexagon screw | 955525 | 4 | |
| 19 | Hexagon screw | 955527 | 1 | |
| 20 | Spring washer | 941907 | 5 | |
| 25 | Gasket | 422130 | 1 | |
| 26 | Stud | 953224 | 2 | |
| 27 | Hexagon nut | 955825 | 2 | Late type |
| 28 | Spring washer | 941906 | 2 | |
| 29 | Companion flange | 422184 | 1 | |
| 30 | Intermediate section | 423134 | 1 | |
| 31 | Companion flange | 468844 | 1 | |
| 32 | Dog clutch disc | 417512 | 6 | |
| 33 | Screw | 468853 | 2 | |
| 34 | Screw | 468847 | 2 | |
| 35 | Screw | 468853 | 4 | |
| 36 | Nut | 468845 | 8 | |
| 37 | Spring washer | 942336 | 8 | |
| 38 | Spring washer | 942336 | 2 | |
| 39 | Screw | 468848 | 1 | See group 2D |
| 40 | Washer | 955896 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 41 | Spacer sleeve | 467347 | 1 | |
| 42 | Protecting plate | 823010 | 1 | |
| 43 | Hexagon screw | 940113 | 2 | |
| 44 | Spring washer | 941907 | 2 | |
| 45 | Cover | 422643 | 1 |
| Item | Part Name | Part No. |
| 34 | Screw 468847 | 468847 |
| Details | |
| Engine model | TAD120BHC TAD120CHC TD120BHC TD120BRC TID120FG |
| Application | Drive Device, Fuel Injection Pump Drive Device, Fuel Injection Pump: A Drive Device, Fuel Injection Pump: B Drive Device, Fuel Injection Pump: D FUEL INJECTION PUMP COUPLING |
