Screw 844021

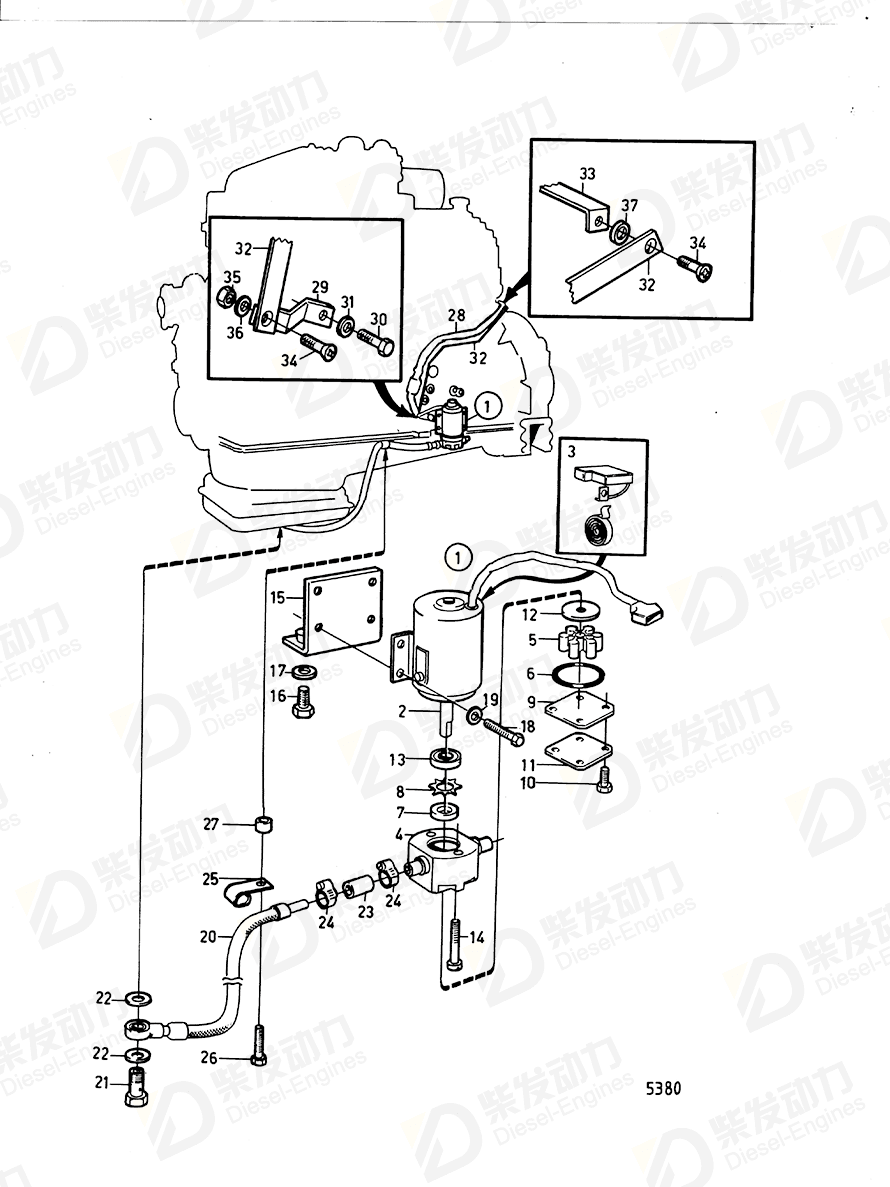

| No. | Part Name | Part Number | Qty | Description |
| 1 | Electric motor | 842222 | 1 | 24V |
| 3 | Carbon brush set | 844014 | 1 | |
| 4 | Pump housing | 844015 | 1 | |
| 5 | Impeller kit | 844022 | 1 | |
| 9 | Wear washer | 844017 | 1 | |
| 10 | Screw | 844021 | 4 | |
| 11 | Cap | 844018 | 1 | |
| 12 | Wear washer | 844016 | 1 | |
| 13 | Deflector ring | 844019 | 1 | |
| 14 | Screw | 844020 | 2 | |
| 15 | Bracket | 844111 | 1 | |
| 16 | Hexagon screw | 955525 | 2 | |
| 17 | Spring washer | 941907 | 2 | |
| 18 | Hexagon screw | 955268 | 4 | |
| 19 | Spring washer | 941906 | 4 | |
| 20 | Hose | 842190 | 1 | |
| 21 | Hollow screw | 191929 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 22 | Gasket | 957185 | 2 | |
| 23 | Hose | 941522 | 1 | (13799) L=45mm |
| 24 | Hose clamp | 943472 | 2 | |
| 25 | Clamp | 942810 | 1 | |
| 26 | Flange screw | 944012 | 1 | |
| 27 | Spacer sleeve | 807183 | 1 | Used on crankshaft 829999. |
| 30 | Hexagon screw | 940098 | 1 | |
| 31 | Spring washer | 942336 | 1 | |
| 34 | Screw | 950144 | 2 | |
| 35 | Hexagon nut | 955825 | 1 | Late type |
| 36 | Spring washer | 941906 | 1 | |
| 37 | Washer | 120265 | 1 |
| Item | Part Name | Part No. |
| 10 | Screw 844021 | 844021 |
| Details | |
| Engine model | D120A, TD120A TD100G, TD100HP-87, TID100K TD120C TD60A TD60B TD60D TD70G TID121FG |
| Application | Electrical Oil Bilge Pump and Installation Components Electrical Oil Bilge Pump and Installation Components: A Electrical Oil Bilge Pump and Installation Components: B |
