Screw 941642

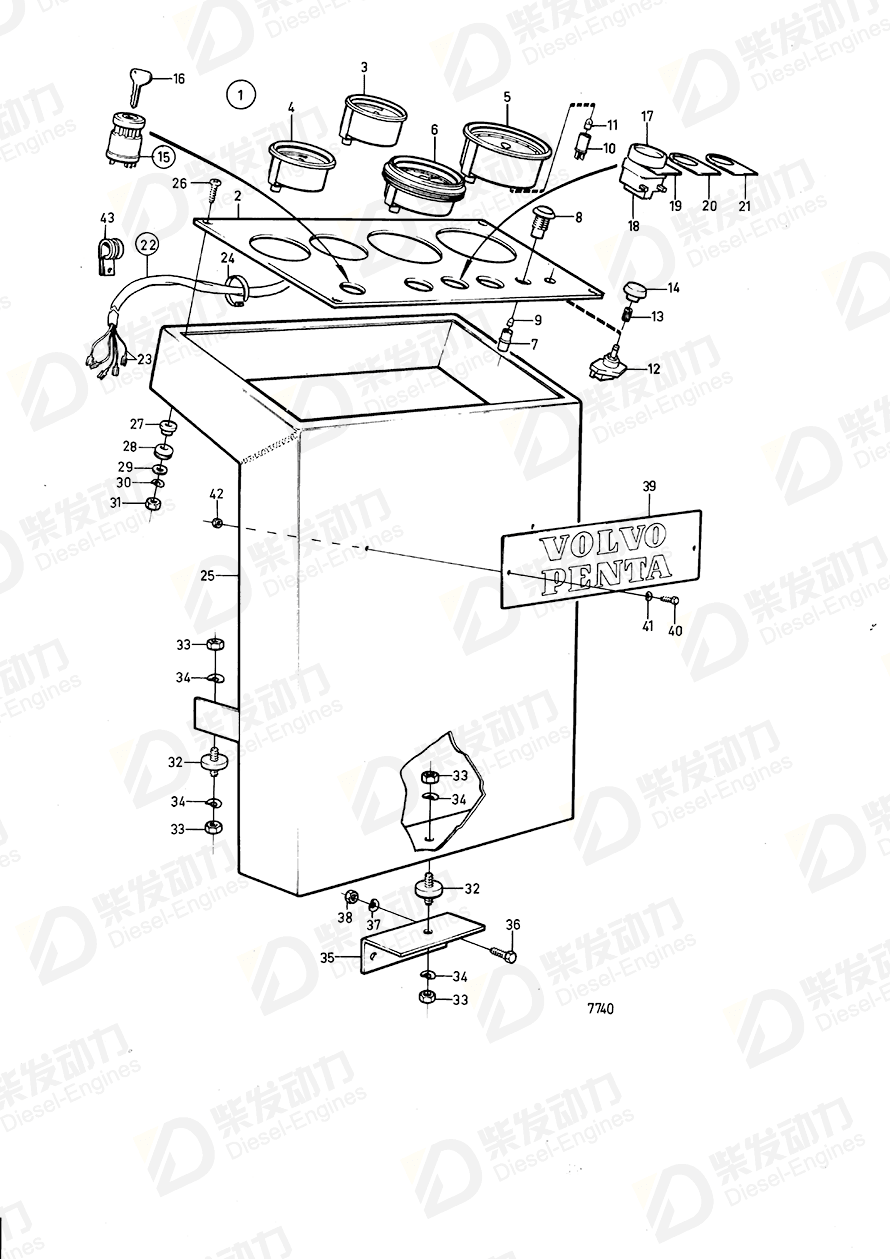

| No. | Part Name | Part Number | Qty | Description |
| 1 | Instrument panel | 846981 | 1 | |
| 2 | Instrument plate | 821354 | 1 | |
| 3 | Instrument | 813864 | 1 | |
| 4 | Thermometer | 827149 | 1 | |
| 5 | Tachometer | 823409 | 1 | |
| 6 | Hour recorder | 844957 | 1 | (815138) |
| 7 | Retainer | 355777 | 1 | |
| 8 | Lens | 642546 | 1 | |
| 9 | Bulb | 182034 | 1 | (277803) |
| 10 | Bulb socket | 808175 | 3 | |
| 11 | Bulb | 182059 | 3 | |
| 12 | Switch | 875819 | 1 | |
| 13 | Nut | 843002 | 1 | |
| 14 | Knob | 837726 | 1 | |
| 15 | Starter switch | 837437 | 1 | |
| 16 | Key | 240321 | 2 | Åkerman spec. 867446 |
| 16 | Key | 241383 | 2 | Åkerman spec. 867446. |
| 17 | Push button | 843836 | 3 | |
| 18 | Switch device | 843837 | 3 | |
| 19 | Sign | 821389 | 1 | For charging of 2 batteries use charge distributor 831793, Marked Steward Warner., Late type |
| 20 | Sign | 821387 | 1 | |
| 21 | Sign | 821388 | 1 | For charging of 2 batteries use charge distributor 831793, Marked Steward Warner., Late type |
| 22 | Cable block | 846928 | 1 | |
| 24 | Cable tie | 948210 | 1 | (827353) |
| 25 | Anchorage | 842944 | 1 | Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150 |
| 26 | Screw | 941642 | 4 | Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150 |
| 27 | Spacer sleeve | 824830 | 4 | Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150. |
| 28 | Bushing | 824834 | 4 | Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150. |
| 29 | Washer | 955893 | 4 | |
| 30 | Spring washer | 941906 | 4 | |
| 31 | Hexagon nut | 955781 | 4 | |
| 32 | Rubber cushion | 88101 | 3 | |
| 33 | Hexagon nut | 955782 | 6 | |
| 34 | Spring washer | 941907 | 6 | |
| 35 | Attaching plate | 830673 | 1 | |
| 36 | Screw | 955317 | 2 | |
| 37 | Spring washer | 941908 | 2 | |
| 38 | Hexagon nut | 955783 | 2 | |
| 39 | Emblem | 846118 | 1 | |
| 40 | Screw | 941651 | 2 | |
| 41 | Spring washer | 941904 | 2 | |
| 42 | Hexagon nut | 955779 | 2 | |
| 43 | Clamp | 952629 | 1 |
| Item | Part Name | Part No. |
| 26 | Screw 941642 | 941642 |
| Details | |
| Engine model | D100B, TD100A D42A D70B TD60B TD70G TID120FPP |
| Application | Instrument Panel and Installation Components for Power Pack Instrument Panel and Installation Components, Power Pack Instrument Panel for Power Pack, Spec.867290, 867285 |
| Specification | |
| Descriptions | Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150 MOXXXXX/21743- |
