Screw 955301

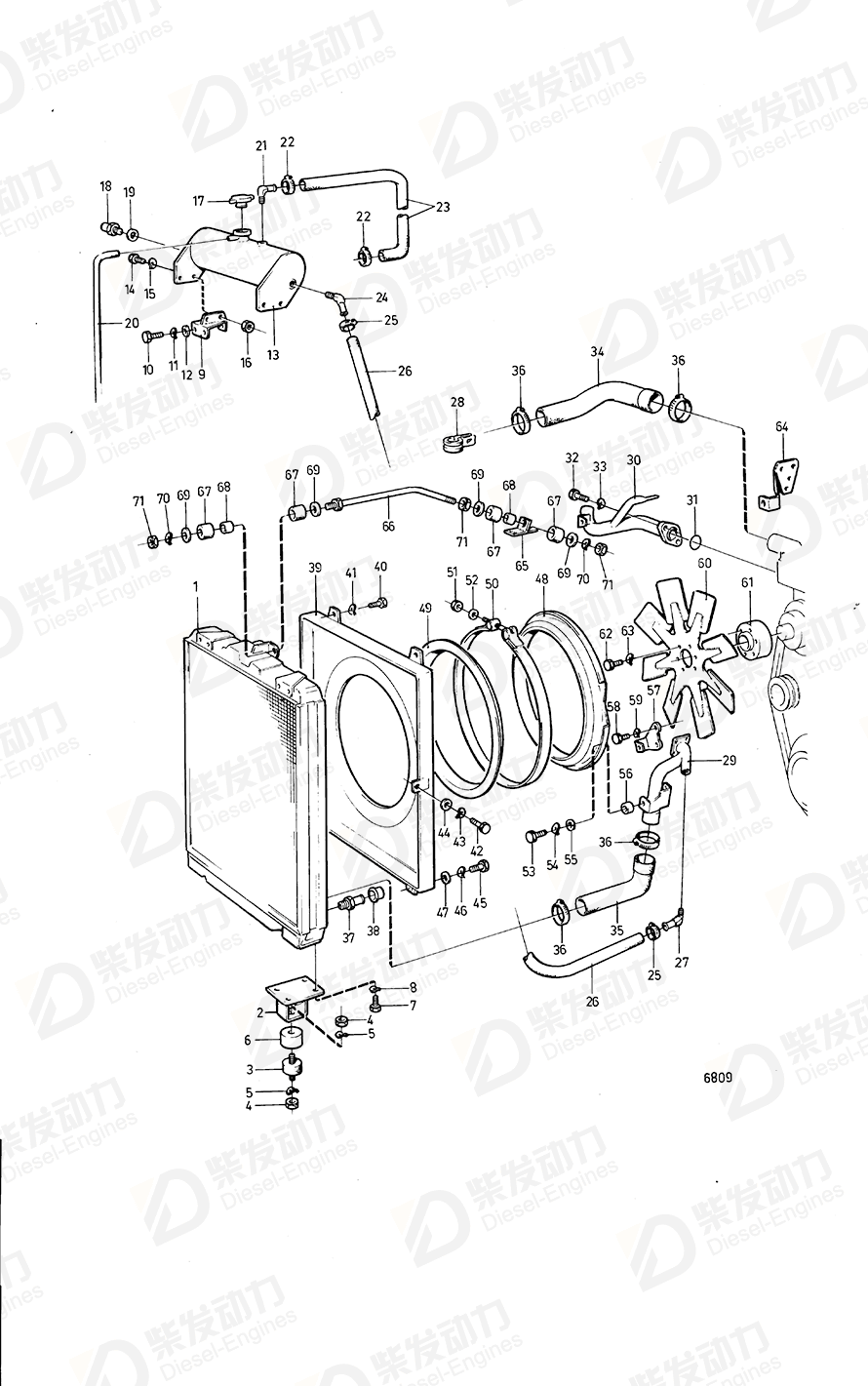

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 1544671 | 1 | |
| 2 | Radiator bracket | 847352 | 2 | |
| 3 | Rubber cushion | 833720 | 2 | |
| 4 | Hexagon nut | 955850 | 4 | |
| 5 | Spring washer | 940280 | 4 | |
| 6 | Sleeve | 807228 | 2 | |
| 7 | Hexagon screw | 955295 | 8 | |
| 8 | Spring washer | 941907 | 8 | |
| 9 | Bracket | 846884 | 1 | L |
| 9 | Bracket | 846885 | 1 | Right |
| 10 | Hexagon screw | 955294 | 2 | |
| 10 | Hexagon screw | 955296 | 2 | |
| 11 | Spring washer | 941907 | 4 | |
| 12 | Washer | 960141 | 2 | |
| 13 | Expansion tank | 845436 | 1 | |
| 14 | Hexagon screw | 955294 | 4 | |
| 15 | Spring washer | 941907 | 4 | |
| 16 | Hexagon nut | 955782 | 4 | |
| 17 | Cover | 334687 | 1 | |
| 19 | Gasket | 11994 | 1 | |
| 21 | Elbow nipple | 180283 | 1 | |
| 22 | Hose clamp | 943470 | 2 | |
| 23 | Hose | 13776 | 1 | L=450mm early type |
| 24 | Hose nipple | 961604 | 1 | MOXXXXX/31956- |
| 25 | Hose clamp | 943471 | 2 | (951787) |
| 27 | Elbow nipple | 942240 | 1 | |
| 28 | Clamp | 949379 | 1 | |
| 29 | Connecting pipe | 847449 | 1 | |
| 30 | Connecting pipe | 1660063 | 1 | |
| 31 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 32 | Hexagon screw | 940135 | 2 | |
| 33 | Spring washer | 941907 | 2 | |
| 34 | Radiator hose | 847404 | 1 | |
| 36 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 37 | Hose nipple | 946121 | 1 | Early type |
| 38 | Protecting cap | 476279 | 1 | |
| 39 | Fan shroud | 475820 | 1 | |
| 40 | Hexagon screw | 955294 | 2 | |
| 41 | Spring washer | 941907 | 2 | |
| 42 | Hexagon screw | 955295 | 2 | |
| 43 | Spring washer | 941907 | 2 | |
| 44 | Washer | 960141 | 2 | |
| 45 | Hexagon screw | 955271 | 2 | |
| 46 | Spring washer | 941906 | 2 | |
| 47 | Washer | 960139 | 2 | MO201374/XXXXX- |
| 48 | Fan ring | 476578 | 1 | |
| 49 | Sealing strip | 476612 | 1 | |
| 50 | Tensioning band | 476324 | 1 | |
| 51 | Hexagon nut | 955780 | 1 | |
| 52 | Washer | 940090 | 1 | |
| 53 | Screw | 955301 | 4 | |
| 54 | Spring washer | 941907 | 4 | |
| 55 | Washer | 960141 | 4 | |
| 56 | Spacer sleeve | 823495 | 4 | |
| 57 | Bracket | 844012 | 1 | |
| 58 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 59 | Spring washer | 942336 | 2 | |
| 60 | Fan, suction type | 843868 | 1 | D=750mm |
| 60 | Fan, pusher type | 843869 | 1 | D=750mm |
| 62 | Hexagon screw | 955535 | 6 | |
| 62 | Hexagon screw | 955540 | 6 | MOXXXXX/105195- |
| 63 | Spring washer | 942336 | 6 | |
| 64 | Bracket | 476438 | 1 | |
| 65 | Anchorage | 475888 | 1 | |
| 67 | Rubber washer | 252203 | 4 | |
| 68 | Spacer sleeve | 252202 | 2 | |
| 69 | Washer | 191940 | 4 | |
| 70 | Spring washer | 941912 | 2 | |
| 71 | Hexagon nut | 955793 | 3 |
| Item | Part Name | Part No. |
| 53 | Screw 955301 | 955301 |
| Details | |
| Engine model | TD120HPP TD61AP, TD71AP, TID71AP TD70G TD70G-83 TID120FPP TID120HPP |
| Application | Alternator and Installation Alternator Low Mounted Left Side Electrical Box and Installation Components RADIATOR AND FAN WITH FAN COVER AND INSTALLATION COMPONENTS RADIATOR AND FAN WITH INSTALLATION COMPONENTS |
| Specification | |
| Descriptions | L=55mm Spec.867627 |
Related Products
Tags: Screw, Volvo Penta, 955301
