Screw 955317

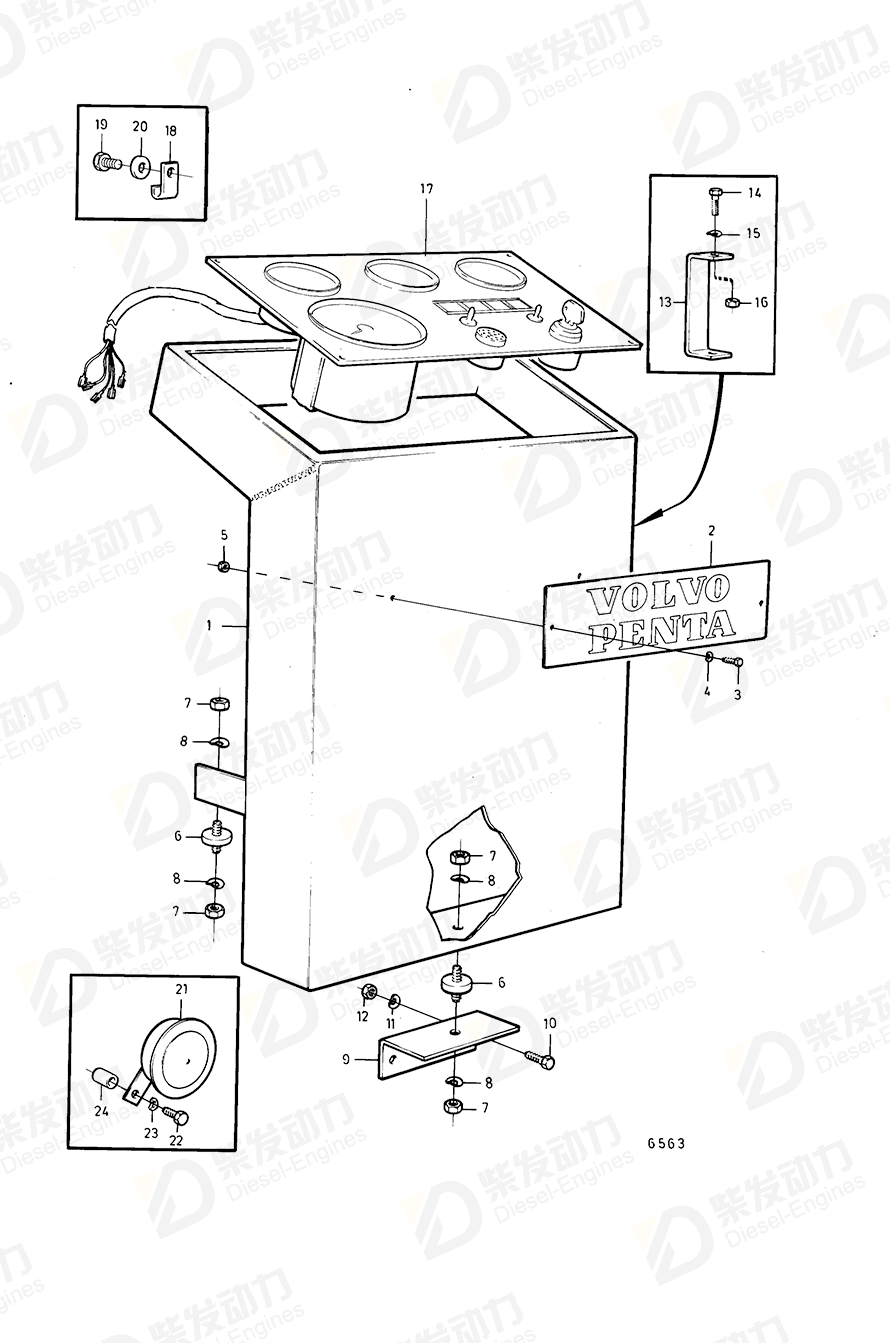

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 847052 | 1 | |
| 2 | Emblem | 846118 | 1 | |
| 3 | Screw | 941651 | 2 | |
| 4 | Spring washer | 941904 | 2 | |
| 5 | Hexagon nut | 955779 | 2 | |
| 6 | Rubber cushion | 88101 | 3 | |
| 7 | Hexagon nut | 955782 | 6 | |
| 8 | Spring washer | 941907 | 6 | |
| 9 | Attaching plate | 830673 | 1 | |
| 10 | Screw | 955317 | 2 | |
| 11 | Spring washer | 941908 | 2 | |
| 12 | Hexagon nut | 955783 | 2 | |
| 13 | Support | 845907 | 2 | |
| 14 | Hexagon screw | 955297 | 2 | |
| 15 | Spring washer | 941907 | 2 | |
| 16 | Hexagon nut | 955782 | 2 | |
| 17 | Instrument panel | 848072 | 1 | POWER PACK |
| 18 | Clamp | 942810 | 1 | |
| 19 | Hexagon screw | 940114 | 1 | |
| 20 | Washer | 940097 | 1 | |
| 21 | Horn | 850420 | 1 | |
| 22 | Hexagon screw | 955533 | 1 | For engine with 40° angle of inclination, L=102mm |
| 23 | Spring washer | 941907 | 1 |
| Item | Part Name | Part No. |
| 10 | Screw 955317 | 955317 |
| Details | |
| Engine model | TD120HPP TD30A TD60B TD60D-83 TD70G TD70G-83 TID120FPP TID120HPP TID121FG TID70GPP |
| Application | Fuel System INSTRUMENT PANEL Instrument Panel and Installation Components, Power Pack INSTRUMENT PANEL FOR POWER PACK INSTRUMENTATION, POWER PACK Instrumentation, Power Pack: A Instrumentation, Power Pack: B SILENCER AND INSTALLATION COMPONENTS Silencer and Installation Components, Power Pack SILENCER AND INSTALLATION COMPONENTS: B SILENCER AND INSTALLATION COMPONENTS: TID121FP Timing Gear Casing and Gears |
