Screw 955516

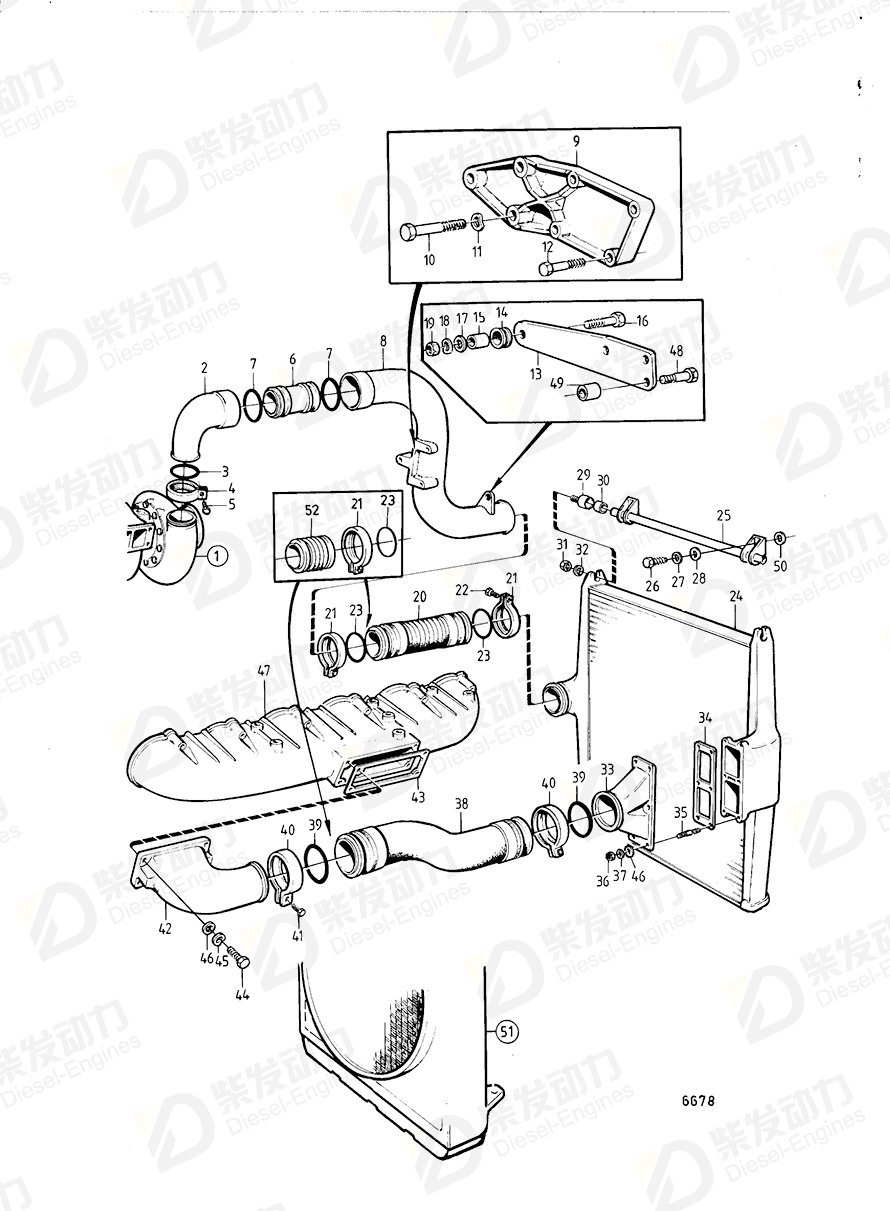

| No. | Part Name | Part Number | Qty | Description |
| 2 | Connecting pipe | 1542764 | 1 | |
| 3 | Sealing ring | 1542781 | 1 | |
| 4 | V-clamp | 1542778 | 1 | |
| 5 | Hexagon screw | 949335 | 1 | |
| 6 | Tube | 476885 | 1 | |
| 7 | O-ring | 1542783 | 2 | |
| 8 | Connecting pipe | 1542904 | 1 | |
| 9 | Bracket | 1542905 | 1 | |
| 10 | Hexagon screw | 955300 | 3 | (955299) |
| 11 | Washer | 960141 | 3 | |
| 12 | Screw | 955516 | 4 | |
| 13 | Bracket | 1542906 | 1 | |
| 14 | Spacer | 476846 | 1 | |
| 15 | Spacer sleeve | 1542793 | 1 | |
| 16 | Hexagon screw | 940142 | 1 | ÅKERMAN. |
| 17 | Washer | 947354 | 1 | |
| 18 | Spring washer | 941907 | 1 | |
| 19 | Hexagon nut | 955782 | 1 | |
| 20 | Hose | 476828 | 1 | |
| 21 | Clamp | 1542776 | 3 | |
| 22 | Hexagon screw | 949335 | 3 | |
| 23 | Sealing ring | 1542780 | 3 | |
| 24 | Intercooler | 1542735 | 1 | |
| 25 | Radiator anchorage | 1542500 | 1 | |
| 26 | Hexagon screw | 955296 | 2 | |
| 27 | Spring washer | 941907 | 2 | |
| 28 | Washer | 960148 | 2 | Spec. 867446, 867477, 867494, 867630, 867618., MAFI spec. 867578. |
| 29 | Sleeve | 1542503 | 2 | |
| 30 | Rubber cushion | 1542505 | 2 | |
| 31 | Hexagon nut | 955791 | 2 | |
| 32 | Washer | 960141 | 2 | |
| 33 | Connecting pipe | 1542891 | 1 | |
| 34 | Gasket | 1542514 | 1 | |
| 35 | Stud | 953047 | 6 | |
| 36 | Hexagon nut | 955782 | 6 | |
| 37 | Spring washer | 941907 | 6 | |
| 38 | Hose | 1542890 | 1 | |
| 39 | Sealing ring | 1542780 | 3 | |
| 40 | Clamp | 1542776 | 3 | |
| 41 | Hexagon screw | 949335 | 3 | |
| 42 | Connecting pipe | 846101 | 1 | (468930) |
| 43 | Gasket | 468243 | 1 | When coolant supervision not is mounted |
| 44 | Hexagon screw | 940159 | 4 | |
| 45 | Spring washer | 941907 | 4 | |
| 46 | Washer | 955894 | 10 | |
| 48 | Hexagon screw | 942338 | 3 | |
| 49 | Spacer sleeve | 1542934 | 3 | |
| 50 | Washer | 191172 | 2 | Spec.867054, 867221. |
| 52 | Extension, EXTENSION | 847376 | 2 |
| Item | Part Name | Part No. |
| 12 | Screw 955516 | 955516 |
| Details | |
| Engine model | TID120FG TID120FPP TID120HPP TID121FG |
| Application | INTERCOOLER AND INSTALLATION COMPONENTS Oil Pump: 11030050 Oil Pump: 4804522 |
| Specification | |
| Descriptions | L=51mm |
