Sealing cloth 823682

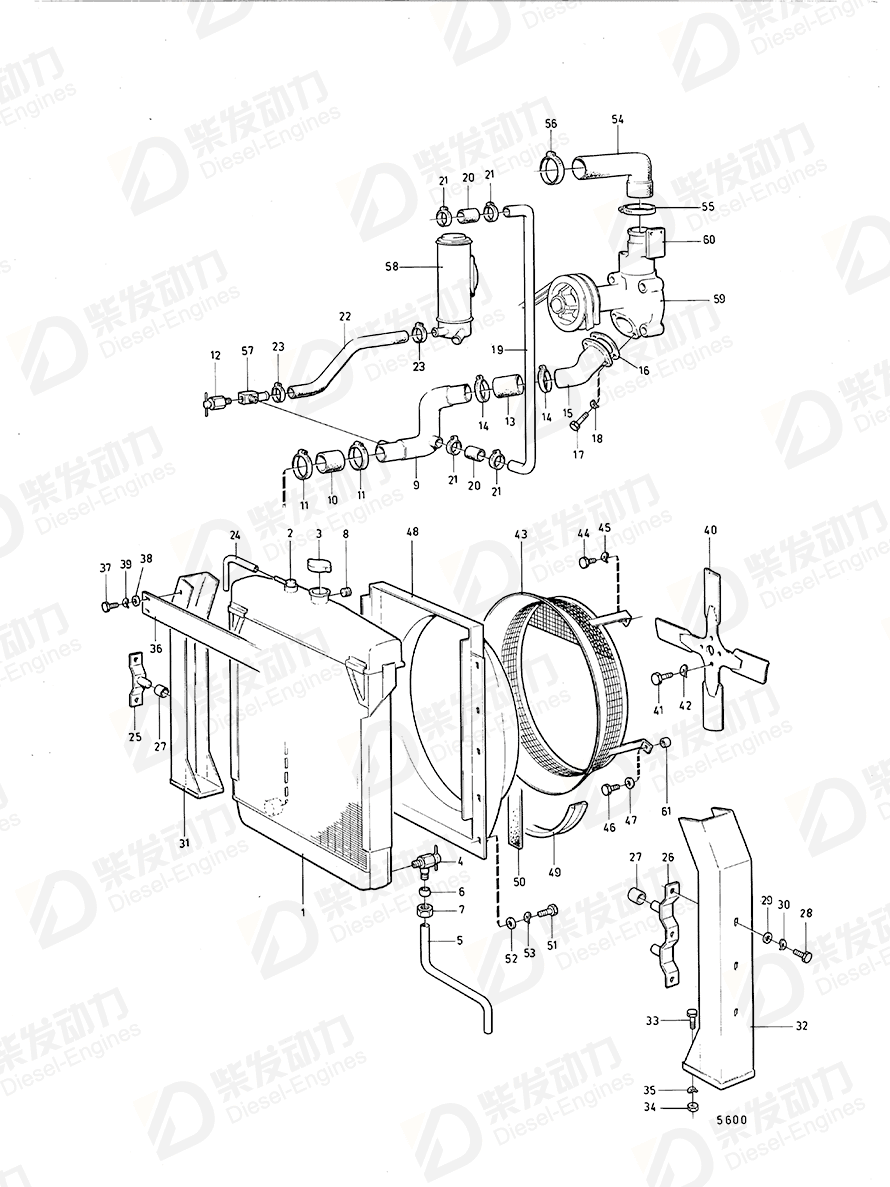

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 821160 | 1 | Åkerman., MO-XXXXX/98707 |
| 2 | Safety valve | 342099 | 1 | |
| 3 | Radiator cap | 344753 | 1 | |
| 4 | Drain cock | 820436 | 1 | |
| 5 | Tube | 954305 | 1 | L=250mm |
| 6 | Fitting | 954365 | 1 | |
| 7 | Fitting nut | 954357 | 1 | |
| 8 | Plug | 952075 | 1 | |
| 9 | Pipe elbow | 830741 | 1 | |
| 10 | Rubber hose | 943372 | 1 | L=90mm |
| 10 | Rubber hose | 949481 | 1 | D42A PP SPEC. 16053, 867638., L = 110 MM |
| 11 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 12 | Shut-off cock | 82744 | 1 | |
| 12 | Plug | 180759 | 1 | |
| 13 | Rubber hose | 943372 | 1 | L=90mm |
| 14 | Hose clamp | 943478 | 2 | 62 (951794) |
| 15 | Pipe elbow | 785621 | 1 | |
| 16 | Gasket | 785622 | 1 | |
| 17 | Hexagon screw | 955525 | 2 | |
| 18 | Spring washer | 941907 | 2 | |
| 19 | Coolant pipe | 830742 | 1 | |
| 20 | Rubber hose | 944386 | 1 | |
| 21 | Hose clamp | 943475 | 4 | |
| 22 | Rubber hose | 943368 | 1 | L=4000mm |
| 22 | Hose | 946050 | 1 | D42A PP SPEC. 16053, 867638., L = 500 MM |
| 23 | Hose clamp | 943472 | 2 | |
| 23 | Hose clamp | 943473 | 2 | |
| 24 | Hose | 192618 | 1 | L=1400mm |
| 25 | Attaching plate | 341907 | 2 | Right |
| 26 | Attaching plate | 341909 | 1 | Left |
| 27 | Rubber cushion | 823381 | 4 | |
| 28 | Hexagon screw | 940135 | 7 | |
| 29 | Washer | 899990 | 7 | |
| 30 | Spring washer | 941907 | 7 | |
| 31 | Pillar | 820779 | 1 | |
| 32 | Pillar | 820781 | 1 | |
| 33 | Hexagon screw | 940115 | 8 | |
| 33 | Hexagon screw | 955535 | 2 | |
| 34 | Hexagon nut | 955827 | 8 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 35 | Spring washer | 942336 | 8 | |
| 36 | Cross stay | 821052 | 1 | |
| 37 | Hexagon screw | 955523 | 4 | |
| 38 | Washer | 955894 | 4 | |
| 39 | Spring washer | 941907 | 4 | |
| 40 | Fan | 310708 | 1 | D = 540 MM |
| 41 | Hexagon screw | 940135 | 4 | |
| 42 | Spring washer | 941907 | 4 | |
| 43 | Fan protector | 830666 | 1 | |
| 44 | Hexagon screw | 955527 | 1 | |
| 44 | Hexagon screw | 955559 | 1 | L = 22 MM LATE TYPE |
| 45 | Spring washer | 940280 | 1 | |
| 45 | Spring washer | 941907 | 1 | |
| 46 | Hexagon screw | 940115 | 1 | |
| 46 | Hexagon screw | 955531 | 1 | Late type |
| 47 | Washer | 955894 | 1 | |
| 48 | Fan shroud | 821865 | 1 | For engine with 2 pc oil cooler 836821., MO-XXXXX/30307 |
| 49 | Sealing cloth | 823682 | 1 | |
| 50 | Sealing strip | 821707 | 2 | For engine with 2 pc oil cooler 836821., Spec. 867056, 867058, 867059, 867279. |
| 51 | Hexagon screw | 955524 | 10 | Used on crankshaft 829999. |
| 52 | Washer | 899990 | 10 | |
| 53 | Spring washer | 941907 | 10 | |
| 54 | Hose | 830664 | 1 | |
| 55 | Hose clamp | 943480 | 1 | MO-XXXXX/98707., (951797) |
| 56 | Hose clamp | 943479 | 1 | |
| 57 | T-nipple | 180101 | 1 | |
| 60 | Spacer sleeve | 820506 | 1 | L=9mm |
| Item | Part Name | Part No. |
| 49 | Sealing cloth 823682 | 823682 |
| Details | |
| Engine model | D42A D70B TD70B |
| Application | Fan, Fan-and Belt Protection with Inst.components, MO-XXXXX/33071: A Fan, Fan-and Belt Protection with Inst.components, MO-XXXXX/33071: B RADIATOR AND FAN WITH INST.COMPS SPEC.867113, 867131, 16053, 867638 Radiator and Fan with Installation Components |
| Specification | |
| Descriptions | For engine with fan diameter=570mm |
