Sealing cover 823111

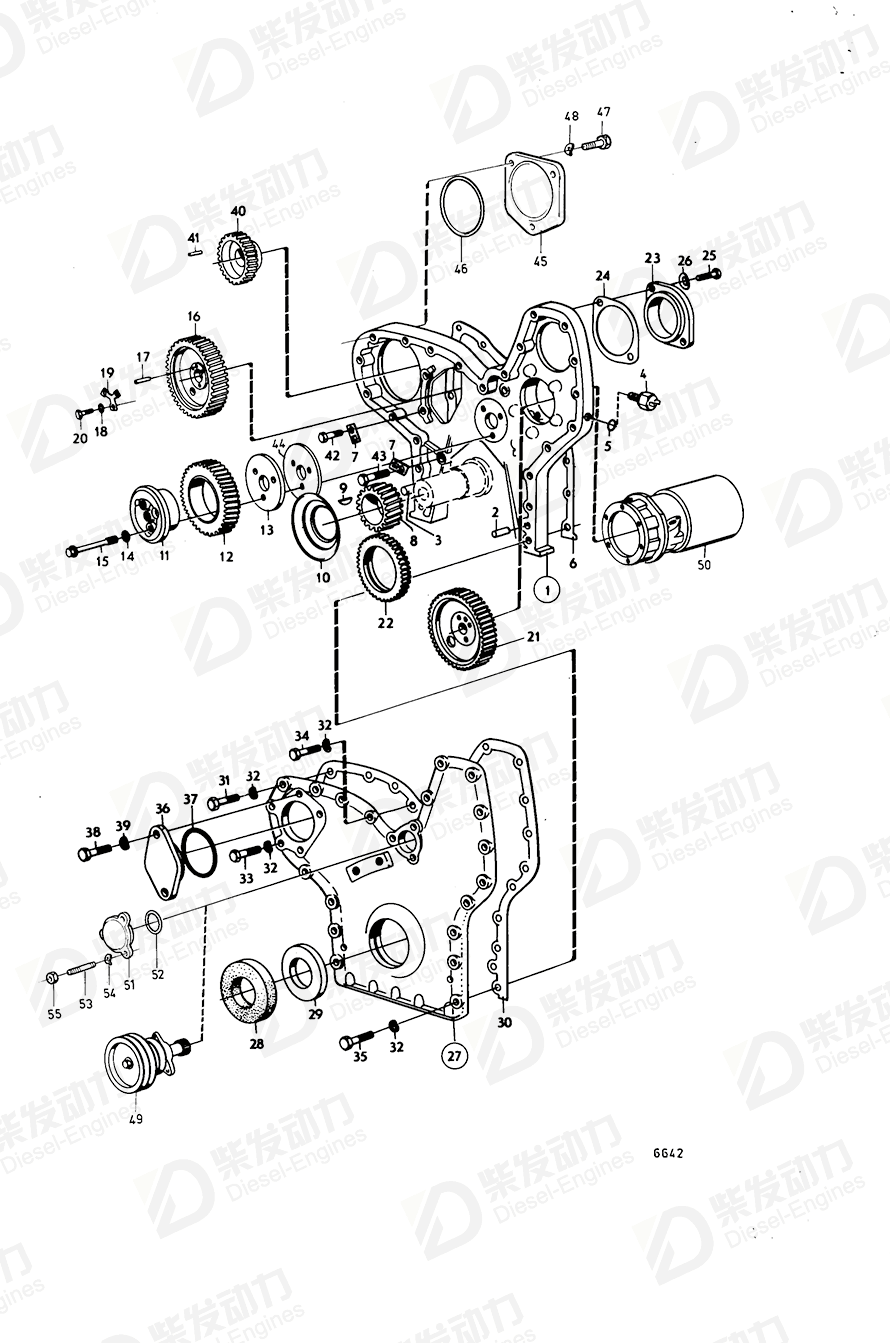

| No. | Part Name | Part Number | Qty | Description |
| 1 | Timing gear casing | 422622 | 1 | |
| 2 | Pin | 941510 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 3 | Pin | 941511 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 4 | Tachometer sensor | 354671 | 1 | For instrument panel 841094 and 841095., 24Vlate production., (837783) |
| 5 | O-ring | 925059 | 1 | AQ115A compression 8,4:1. |
| 6 | Gasket | 468557 | 1 | |
| 7 | Tab washer | 941572 | 5 | |
| 8 | Gear | 423080 | 1 | |
| 9 | Woodruff key | 422253 | 1 | |
| 10 | Oil deflector | 423177 | 1 | |
| 11 | Bearing spindle | 422766 | 1 | (467463) |
| 12 | Idler gear | 467461 | 1 | MB20A MO-1470/XXXX. |
| 13 | Thrust washer | 467529 | 1 | MO-608/XXXX. |
| 14 | Disc spring | 942180 | 3 | MO-56861/XXXXX |
| 15 | Screw | 468738 | 3 | MO92953/XXXXX- |
| 16 | Gear | 423079 | 1 | |
| 17 | Pin | 950588 | 1 | |
| 20 | Hexagon screw | 102056 | 3 | |
| 21 | Gear | 423079 | 1 | |
| 22 | Gear | 422047 | 1 | |
| 23 | Cover | 420183 | 1 | |
| 24 | Gasket | 862591 | 1 | (820751) |
| 25 | Hexagon screw | 940115 | 2 | |
| 26 | Spring washer | 942336 | 2 | |
| 27 | Cover | 823637 | 1 | |
| 28 | Sealing ring | 941666 | 1 | |
| 29 | Sealing ring | 469507 | 1 | |
| 30 | Gasket | 422626 | 1 | |
| 31 | Hexagon screw | 940162 | 10 | MO-XXXXX/105194 |
| 32 | Spring washer | 942336 | 20 | |
| 33 | Hexagon screw | 955538 | 2 | |
| 34 | Hexagon screw | 955541 | 2 | |
| 35 | Hexagon screw | 955544 | 6 | |
| 36 | Cover | 420183 | 1 | |
| 37 | Seal | 420213 | 1 | |
| 38 | Hexagon screw | 940115 | 2 | |
| 39 | Spring washer | 942336 | 2 | |
| 42 | Screw | 941939 | 4 | |
| 43 | Hexagon screw | 955537 | 1 | |
| 44 | Bearing shield | 467528 | 1 | MO-608/XXXX. |
| 45 | Cover | 420178 | 1 | |
| 46 | O-ring | 975610 | 1 | For engines without air compressor. |
| 47 | Hexagon screw | 955576 | 3 | |
| 48 | Spring washer | 941911 | 3 | |
| 51 | Sealing cover | 823111 | 1 | |
| 52 | O-ring | 1664473 | 1 | (925254) |
| 53 | Stud | 953257 | 1 | L = 35 MM |
| 53 | Stud | 953280 | 2 | L = 120 MM |
| 54 | Spring washer | 942336 | 3 | |
| 55 | Hexagon nut | 955827 | 3 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| Item | Part Name | Part No. |
| 51 | Sealing cover 823111 | 823111 |
| Details | |
| Engine model | D100A D100B D100BRC D120A, TD120A TD100A TD100ARC TD100CRC TD120GG |
| Application | Timing Gear Casing and Gears Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B Timing Gear Casing and Gears: C TIMING GEAR CASING AND TIMING GEAR: B TIMING GEAR CASING AND TIMING GEAR: D Timing Gear Casing and Timing Gears: B |
Tags: Sealing cover, Volvo Penta, 823111
