Sealing kit 21193230

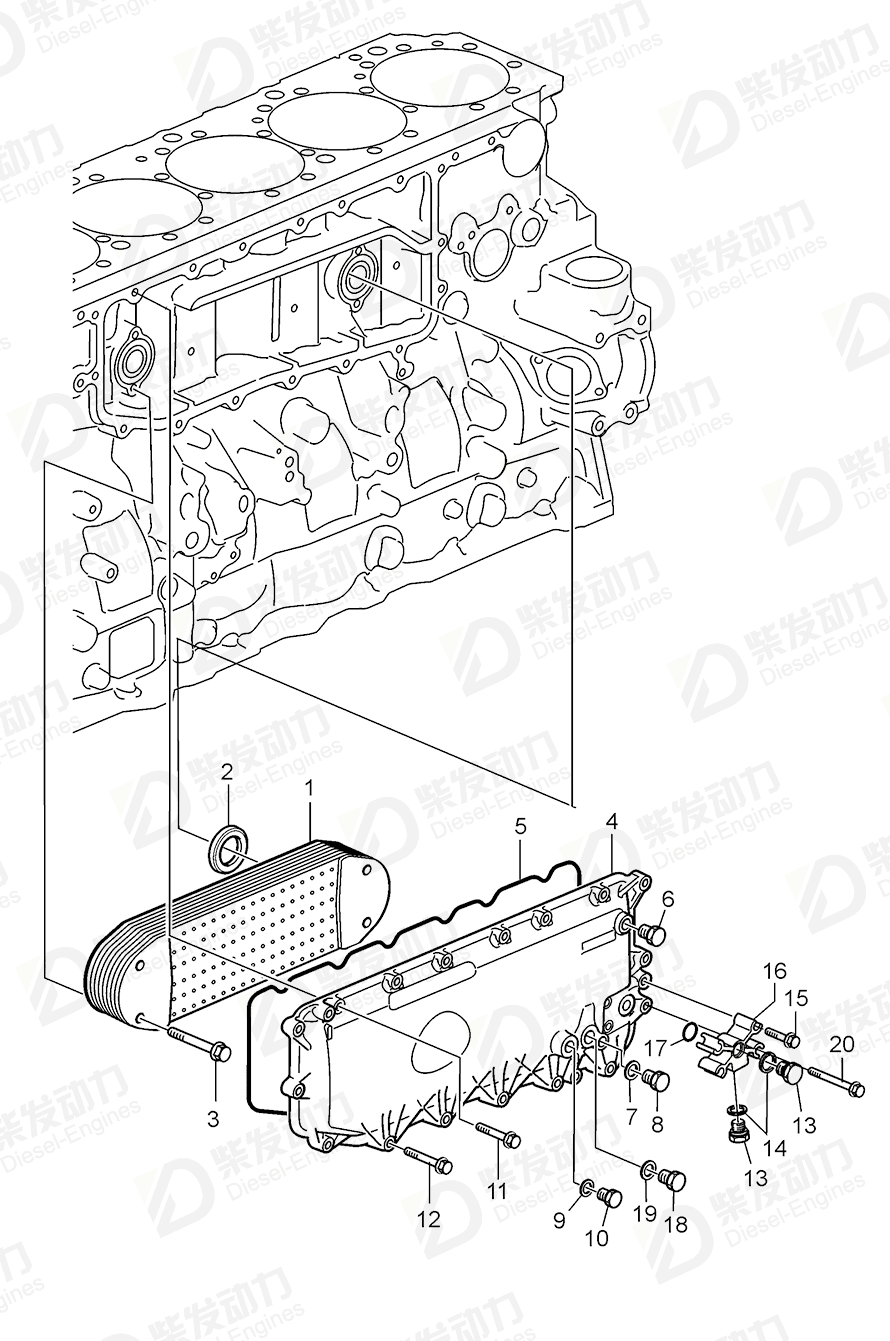

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 20700516 | 1 | SN2016010025- |
| 2 | Sealing ring | 20551483 | 2 | |
| 3 | Flange screw | 982160 | 4 | |
| 4 | Cover | 20581617 | 1 | SN-2016010024 |
| 4 | Cap | 20746923 | 1 | SN2016010025-2016022855, Replaced by 21122228 |
| 4 | Cover | 21100906 | 1 | SN2016024646-2016047780, Relaced by 21426900 and gasket 21302234 |
| 4 | Cover | 21122228 | 1 | SN2016022856-2016024645, Replaced by 21100906 |
| 4 | Cover | 21426900 | 1 | SN2016010025- |
| 5 | Seal | 20746919 | 1 | SN-2016024645, Replaced by 21193230 |
| 5 | Seal | 21039517 | 1 | SN-2016024645, Replaced by 21193230 |
| 5 | Sealing kit | 21193230 | 1 | SN2016024646-2016047780, Replaced by gasket 21302234 and cover 21426900 |
| 5 | Gasket | 21302234 | 1 | SN2016010025- |
| 6 | Plug | 968062 | 1 | |
| 7 | O-ring | 984795 | 1 | |
| 8 | Plug | 960629 | 1 | |
| 9 | Gasket | 11998 | 1 | |
| 10 | Plug | 960632 | 1 | |
| 11 | Flange screw | 984738 | 11 | |
| 12 | Flange screw | 984739 | 5 | |
| 13 | Plug | 982293 | 2 | (960632) |
| 14 | Sealing ring | 21024032 | 2 | |
| 15 | Flange screw | 984739 | 3 | |
| 16 | Spacer | 3888580 | 1 | |
| 17 | Sealing ring | 469846 | 1 | |
| 18 | Plug | 960631 | 1 | |
| 19 | Gasket | 11996 | 1 | |
| 20 | Flange screw | 984741 | 1 | L=70mm |
| Item | Part Name | Part No. |
| 5 | Sealing kit 21193230 | 21193230 |
| Details | |
| Engine model | TAD1641VE, TAD1642VE, TAD1643VE, TAD1650VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1660VE, TAD1661VE, TAD1662VE TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE |
| Application | Oil Cooler, Engine |
| Specification | |
| Descriptions | SN2016024646-2016047780, Replaced by gasket 21302234 and cover 21426900 |
Tags: Sealing kit, Volvo Penta, 21193230
