Sealing ring 11994488

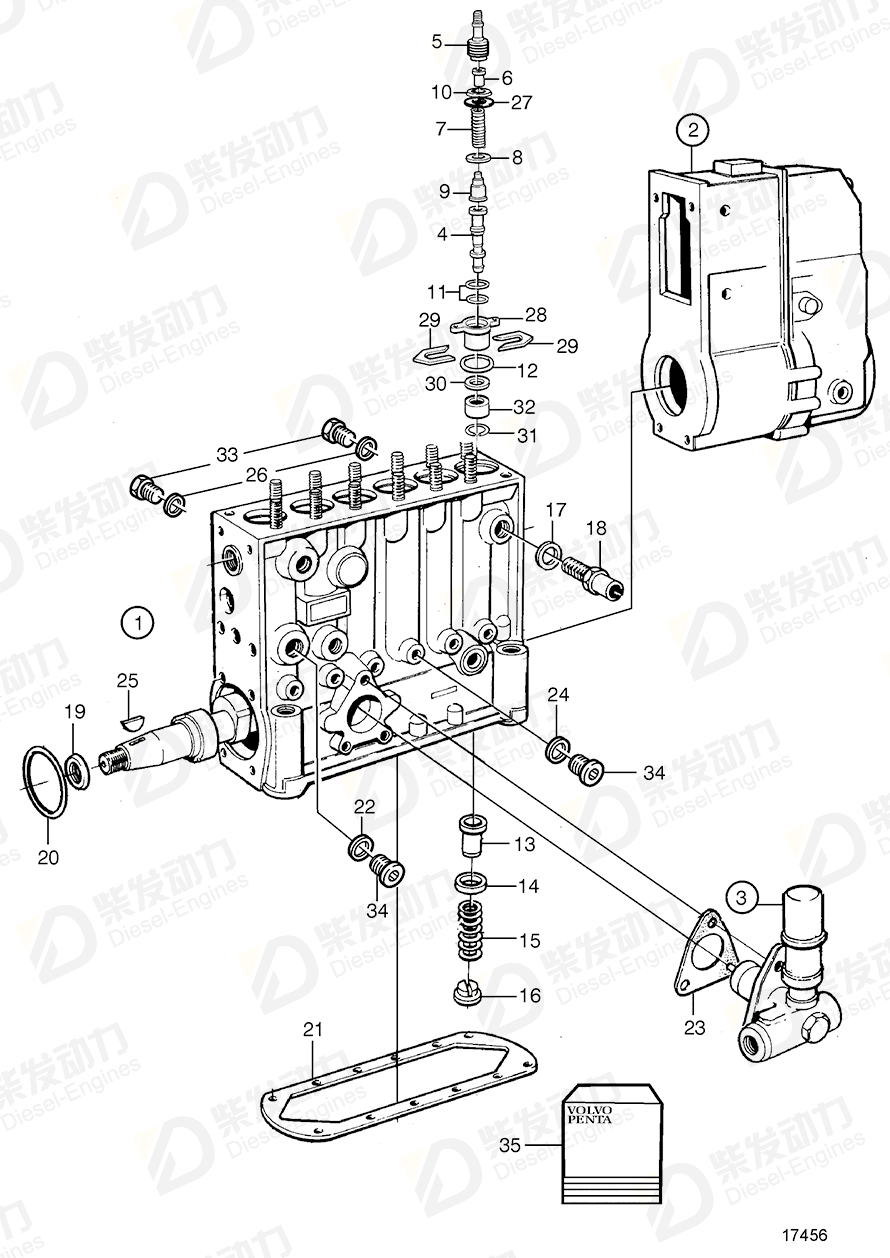

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803737 | 1 | |
| 1 | Injection pump | 3825834 | 1 | |
| 2 | Governor | 3825889 | 1 | |
| 3 | Feed pump | 244825 | 1 | |
| 4 | Pump element | 3828985 | 6 | |
| 5 | Retainer | 244636 | 6 | |
| 6 | Peg | 240971 | 6 | |
| 7 | Compression spring | 240969 | 6 | |
| 8 | Sealing washer | 239993 | 6 | |
| 9 | Delivery valve | 244742 | 6 | |
| 10 | O-ring | 240001 | 6 | |
| 11 | O-ring | 240422 | 12 | |
| 12 | Sealing ring | 11994488 | 6 | |
| 13 | Control sleeve | 240782 | 6 | |
| 14 | Spring disc | 239984 | 6 | |
| 15 | Compression spring | 244731 | 6 | (847277) |
| 16 | Spring disc | 244685 | 6 | (6211952) |
| 17 | Gasket | 11996 | 1 | |
| 18 | Overflow valve | 3825154 | 1 | |
| 19 | Camshaft seal | 864299 | 1 | |
| 20 | O-ring | 243299 | 1 | |
| 21 | Gasket | 1699581 | 1 | |
| 22 | Gasket | 240017 | 1 | Spec.867473 alt |
| 23 | Gasket | 6232208 | 1 | (863370) |
| 24 | Gasket | 18836 | 6 | |
| 25 | Key | 35168 | 1 | |
| 26 | Sealing ring | 239897 | 2 | |
| 35 | Repair kit | 845240 | 1 | See group 10A |
| Item | Part Name | Part No. |
| 12 | Sealing ring 11994488 | 11994488 |
| Details | |
| Application | Fuel Injection Pump, Components Fuel Injection Pump, Components: 3825515 Fuel Injection Pump, Components: 3825834 Fuel Injection Pump, Components: 3827139 Fuel Injection Pump, Components: 3827212 Fuel Injection Pump, Components: 3832371 |
