Sealing ring 1542385

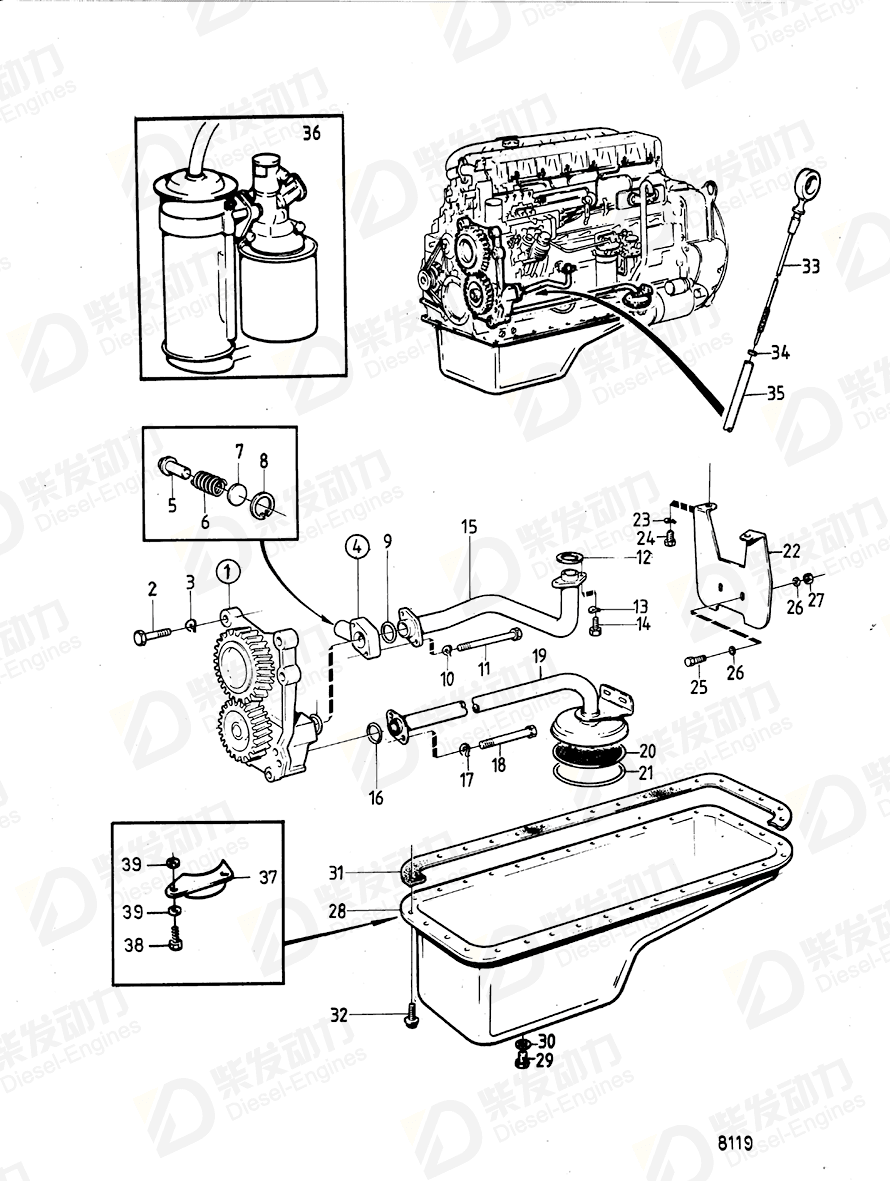

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 860721 | 1 | |
| 1 | Oil pump | 1542210 | 1 | Repl by 860721 |
| 2 | Hexagon screw | 955294 | 4 | |
| 3 | Spring washer | 941907 | 4 | |
| 4 | Reduction valve | 1542255 | 1 | |
| 5 | Reduction valve | 471115 | 1 | |
| 6 | Spring | 1542257 | 1 | |
| 7 | Disc | 948343 | 1 | |
| 8 | Snap ring | 914506 | 1 | |
| 9 | Sealing ring, pipe bend | 469482 | 2 | (424346) |
| 10 | Spring washer | 941907 | 2 | |
| 11 | Hexagon screw | 940129 | 2 | |
| 12 | Sealing ring | 1542385 | 2 | |
| 13 | Spring washer | 941907 | 2 | |
| 14 | Hexagon screw | 955295 | 2 | |
| 15 | Pressure pipe | 1542383 | 1 | |
| 16 | O-ring | 949657 | 1 | (925060) |
| 17 | Spring washer | 941907 | 2 | |
| 18 | Hexagon screw | 955303 | 2 | L = 65 MM |
| 19 | Suction pipe | 1542346 | 1 | |
| 20 | Strainer | 1542350 | 1 | |
| 21 | Retaining ring | 1542351 | 1 | |
| 23 | Disc spring | 942385 | 2 | |
| 24 | Hexagon screw | 955293 | 2 | |
| 25 | Hexagon screw | 955295 | 2 | |
| 26 | Washer | 960141 | 4 | |
| 27 | Lock nut | 946036 | 2 | |
| 28 | Sump | 1542237 | 1 | |
| 29 | Magnetic plug | 192538 | 1 | |
| 30 | Gasket, plug | 18677 | 1 | |
| 31 | Gasket | 860685 | 1 | |
| 32 | Flange screw | 946440 | 30 | |
| 33 | Oil dipstick | 844605 | 1 | |
| 34 | O-ring | 949187 | 1 | |
| 35 | Tube | 844603 | 1 | |
| 37 | Bracket | 1542102 | 1 | MO17869- |
| 37 | Bracket | 1542457 | 1 | |
| 38 | Hexagon screw | 955297 | 2 | |
| 39 | Washer | 955894 | 8 |
| Item | Part Name | Part No. |
| 12 | Sealing ring 1542385 | 1542385 |
| Details | |
| Engine model | TD30A TD31ACE TD40A |
| Application | Lubricating System Repair Kit Repair Kits |
