Sealing ring 1543580

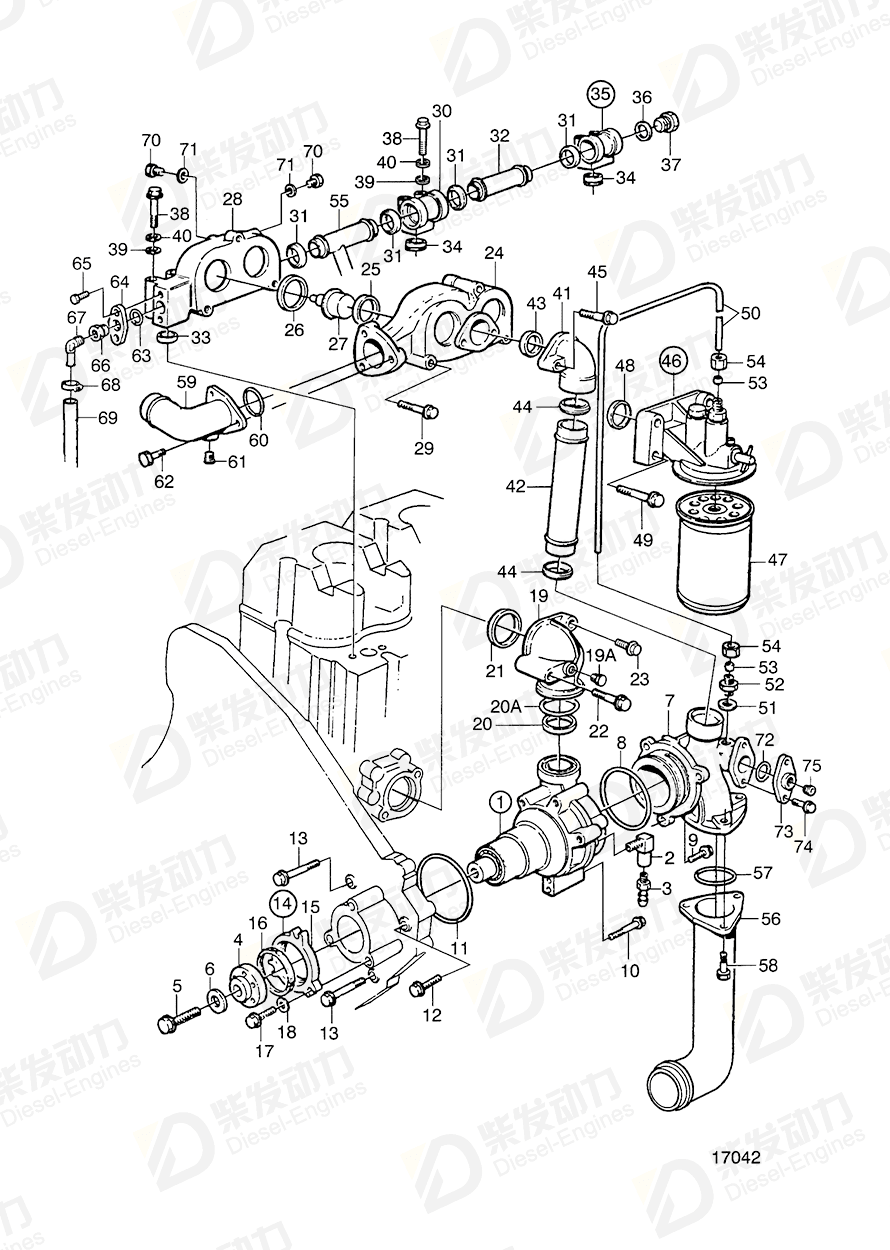

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 1556330 | 1 | Replaced by 8149980., SNXXXXX12949-24994 |
| 1 | Coolant pump | 3803305 | 1 | SNXXXXX24995- |
| 1 | Coolant pump | 8149980 | 1 | SNXXXXX24995- |
| 2 | Elbow nipple | 1543847 | 1 | |
| 3 | Peg | 966723 | 1 | |
| 4 | Hub | 1543891 | 1 | |
| 5 | Flange screw | 471555 | 1 | |
| 6 | Washer | 1543923 | 1 | L=75mm |
| 7 | Rear section | 1556080 | 1 | L=80mm |
| 8 | O-ring | 925096 | 1 | |
| 9 | Flange screw | 984735 | 3 | |
| 10 | Flange screw | 984742 | 2 | L=80mm |
| 11 | O-ring | 925266 | 1 | Included in repair kit 3830711. |
| 12 | Flange screw | 965223 | 1 | L=75mm |
| 13 | Flange screw | 984759 | 2 | |
| 15 | Retainer | 1543539 | 1 | |
| 16 | Sealing ring | 1543908 | 1 | |
| 17 | Flange screw | 984737 | 3 | |
| 18 | Washer | 955894 | 3 | |
| 19 | Connecting pipe | 866131 | 1 | |
| 19 | Connecting pipe | 1556063 | 1 | Repl by 866131+180759 |
| 20 | Sealing ring | 1556397 | 1 | |
| 21 | Sealing ring | 1556389 | 1 | |
| 22 | Flange screw | 984742 | 1 | L=80mm |
| 23 | Flange screw | 984735 | 1 | |
| 24 | Thermostat housing | 1548566 | 1 | |
| 25 | Sealing ring | 1544710 | 2 | |
| 26 | Sealing ring | 1544410 | 2 | |
| 27 | Thermostat | 8149186 | 2 | 86°C |
| 28 | Thermostat housing | 862141 | 1 | |
| 29 | Flange screw | 984744 | 3 | |
| 30 | Connector | 1543758 | 3 | |
| 31 | Sealing ring | 1543572 | 8 | |
| 32 | Pipe | 1543762 | 3 | |
| 33 | Sealing ring | 1543566 | 2 | O.S=32,5mm |
| 34 | Sealing ring | 1543577 | 4 | |
| 35 | Coolant pipe | 3826957 | 1 | |
| 36 | Gasket | 947629 | 1 | |
| 37 | Plug | 966146 | 2 | |
| 38 | Hexagon screw | 100222 | 12 | |
| 39 | Washer | 191172 | 12 | Spec.867054, 867221. |
| 40 | Spring washer | 941907 | 12 | |
| 41 | Connecting pipe | 1556081 | 1 | (1661964) |
| 42 | Pipe | 1556082 | 1 | |
| 43 | Sealing ring | 1543580 | 1 | O.S=54,6mm |
| 44 | Sealing ring | 1543572 | 2 | |
| 45 | Flange screw | 984739 | 2 | |
| 47 | Coolant filter | 1699830 | 1 | (1661964) |
| 48 | Sealing ring | 469846 | 1 | |
| 49 | Flange screw | 984736 | 4 | |
| 50 | Tube | 1556088 | 1 | |
| 51 | Gasket | 969011 | 1 | |
| 52 | Nipple | 941754 | 1 | |
| 53 | Ferrule | 956969 | 2 | |
| 54 | Fitting nut | 956983 | 2 | |
| 55 | Tube, oil cooler | 1543813 | 1 | |
| 56 | Coolant pipe | 849739 | 1 | |
| 57 | O-ring | 925255 | 1 | |
| 58 | Flange screw | 984735 | 3 | |
| 59 | Tube | 862103 | 1 | (190130) |
| 60 | O-ring | 925255 | 1 | |
| 61 | Plug | 479977 | 1 | |
| 62 | Flange screw | 984735 | 3 | |
| 63 | Sealing ring, pipe bend | 469482 | 1 | (424346) |
| 64 | Flange | 471705 | 1 | |
| 65 | Flange screw | 984734 | 2 | |
| 66 | Nipple | 479954 | 1 | (190130) |
| 67 | Elbow nipple | 942758 | 1 | SNXXXXXXXXXX/262418- |
| 68 | Hose clamp | 994556 | 2 | |
| 69 | Hose | 13776 | 1 | L=450mm early type |
| 70 | Plug | 960632 | 2 | |
| 71 | Gasket | 11998 | 2 | |
| 72 | Sealing ring | 1543577 | 1 | |
| 73 | Flange | 849649 | 1 | |
| 74 | Flange screw | 984735 | 2 | |
| 75 | Plug | 479977 | 1 | |
| 19A | Plug | 180759 | 1 | |
| 20A | Back-up ring | 1556412 | 1 | 75°C |
| Item | Part Name | Part No. |
| 43 | Sealing ring 1543580 | 1543580 |
| Details | |
| Engine model | TAD1630G, TAD1630GE TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TAD1630P TAD1630P, TWD1630P TAD1630V TAD1630V, TWD1630V TAD1631G, TAD1631GE TD164KAE TID162AG, TID162AGP TID162AG, TID162AGP, TID162AP, TID162APB TID162AP, TID162APB TWD1620G TWD1630G TWD1630G, TAD1630G, TAD1630GE TWD1630P TWD1630V |
| Application | Cylinder Head Cylinder Head: 1556070 Cylinder Head: 1556150 Cylinder Head: 1556590 Cylinder Head: 1556600 Cylinder Head: A Cylinder Head: B Repair Kits Water Pump and Thermostat |
| Specification | |
| Descriptions | O.S=54,6mm |
