Sealing ring 1556949

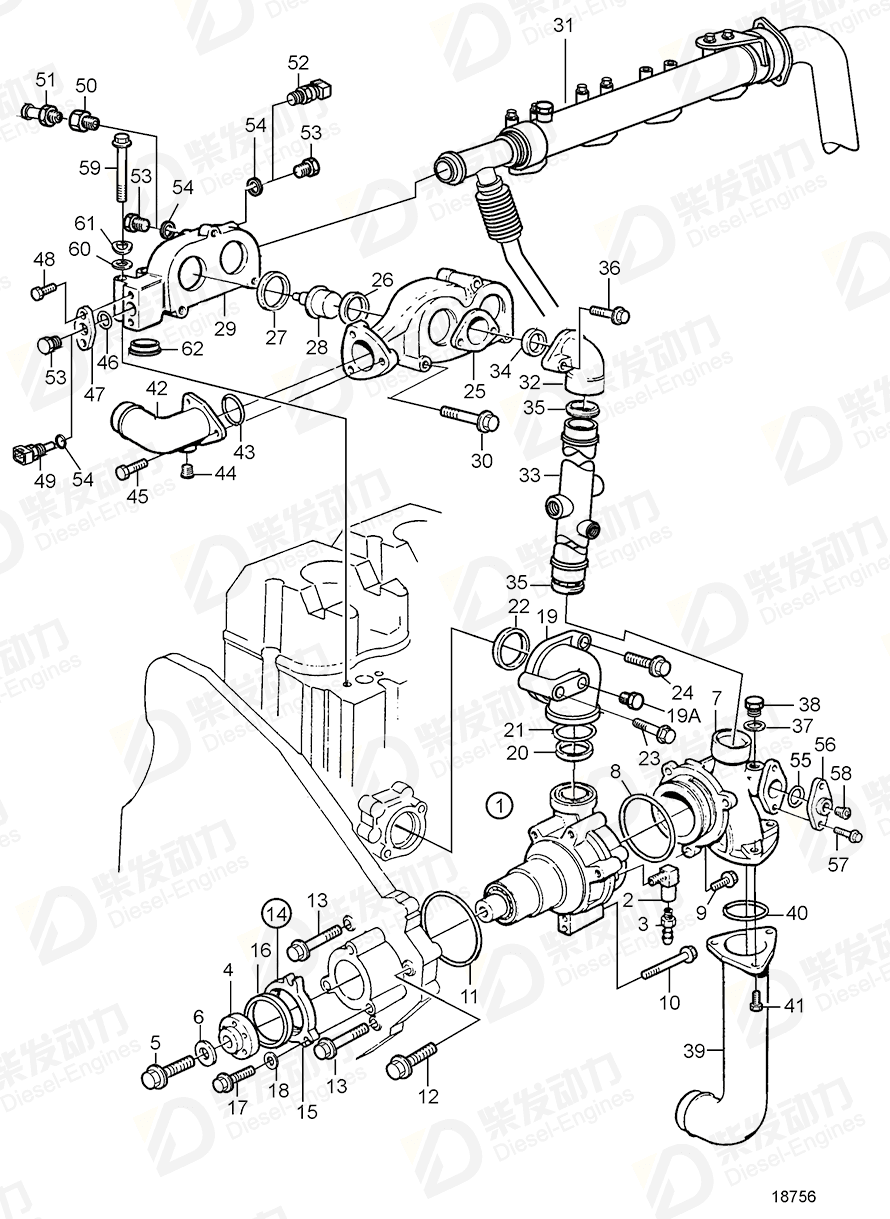

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 3803305 | 1 | SNXXXXX24995- |
| 1 | Coolant pump | 8149980 | 1 | SNXXXXX24995- |
| 2 | Elbow nipple | 1543847 | 1 | |
| 3 | Shut-off cock | 947893 | 1 | |
| 4 | Hub | 1543891 | 1 | |
| 5 | Flange screw | 471555 | 1 | |
| 6 | Washer | 1543923 | 1 | L=75mm |
| 7 | Rear section | 1556080 | 1 | L=80mm |
| 8 | O-ring | 925096 | 1 | |
| 9 | Flange screw | 945444 | 3 | |
| 10 | Flange screw | 969189 | 2 | L=85mm |
| 11 | O-ring | 925266 | 1 | Included in repair kit 3830711. |
| 12 | Flange screw | 965189 | 1 | |
| 13 | Flange screw | 947790 | 2 | |
| 15 | Retainer | 1543539 | 1 | |
| 16 | Sealing ring | 1543908 | 1 | |
| 17 | Flange screw | 946470 | 3 | |
| 18 | Washer | 955894 | 3 | |
| 19 | Connecting pipe | 866131 | 1 | |
| 20 | Sealing ring | 1556397 | 1 | |
| 21 | Back-up ring | 1556412 | 1 | 75°C |
| 22 | Sealing ring | 1556389 | 1 | |
| 23 | Flange screw | 965182 | 1 | |
| 24 | Flange screw | 945444 | 1 | |
| 25 | Thermostat housing | 1556987 | 1 | |
| 26 | Sealing ring | 1544710 | 2 | |
| 27 | Sealing ring | 1544410 | 2 | |
| 28 | Thermostat | 8149182 | 2 | |
| 29 | Thermostat housing | 862141 | 1 | |
| 30 | Flange screw | 965184 | 3 | |
| 32 | Connecting pipe | 1556081 | 1 | (1661964) |
| 33 | Pipe | 1556082 | 1 | |
| 34 | Sealing ring | 1556949 | 1 | |
| 35 | Sealing ring | 1543572 | 2 | |
| 36 | Flange screw | 973924 | 2 | |
| 37 | Gasket | 957178 | 1 | |
| 38 | Plug | 479956 | 1 | |
| 39 | Coolant pipe | 849739 | 1 | |
| 40 | O-ring | 925255 | 1 | |
| 41 | Flange screw | 945444 | 3 | |
| 42 | Connecting pipe | 3831098 | 1 | |
| 43 | O-ring | 925255 | 1 | |
| 44 | Plug | 479977 | 1 | |
| 45 | Flange screw | 945444 | 3 | |
| 46 | Sealing ring, pipe bend | 469482 | 1 | (424346) |
| 47 | Flange | 3830530 | 1 | |
| 48 | Flange screw | 946173 | 2 | |
| 49 | Temperature sensor, instrument | 862154 | 1 | Max 120°C |
| 50 | Nipple | 11032017 | 1 | |
| 51 | Nipple | 1136965 | 1 | ALT |
| 52 | Thermo monitor, coolant temp. | 848829 | 1 | 103°C |
| 53 | Plug | 960632 | 3 | |
| 54 | Gasket | 11998 | 3 | |
| 55 | Sealing ring | 1543577 | 1 | |
| 56 | Flange | 849649 | 1 | |
| 57 | Flange screw | 945444 | 2 | |
| 58 | Plug | 479977 | 1 | |
| 59 | Hexagon screw | 100222 | 3 | |
| 60 | Washer | 191172 | 3 | Spec.867054, 867221. |
| 61 | Spring washer | 941907 | 3 | |
| 62 | Sealing ring | 1543566 | 2 | O.S=32,5mm |
| 19A | Plug | 479979 | 1 |
| Item | Part Name | Part No. |
| 34 | Sealing ring 1556949 | 1556949 |
| Details | |
| Engine model | TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TD164KAE TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G |
| Application | Oil Cooler Water Pump and Thermostat Water Pump and Thermostat Housing, SN-XXXXXXXXXX/6060 Water Pump and Thermostat Housing, SNXXXXXXXXXX/6061- |
